Control Arm Bushing: Service and Repair

REPLACEMENT OF REAR SUSPENSION LOWER ARM BUSHING AND UPPER ARM BUSHING

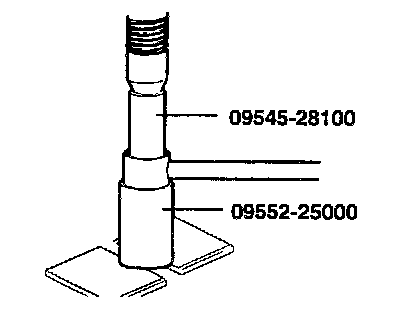

1. Using the special tool, replace the rear suspension lower and upper arm bushing.





NOTE:

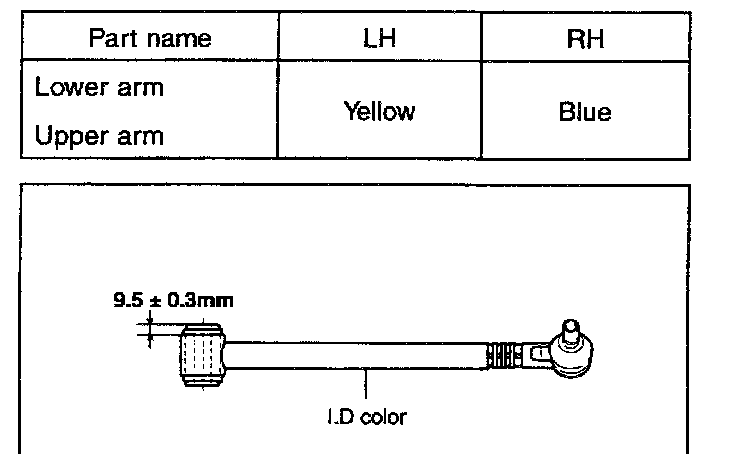

^ Install the bushings as shown in the illustration.
^ Install the arm following the ID color shown in the chart.
