Front Hub - Assembly Tool, Manual Correction

Group: CHASSIS

Number: 00-50-005

Date: DECEMBER, 2000

Model: 2001 SANTA FE

Subject:
2001 SANTA FE HUB RE-ASSEMBLY TOOL
(SHOP MANUAL CORRECTION)

DESCRIPTION:

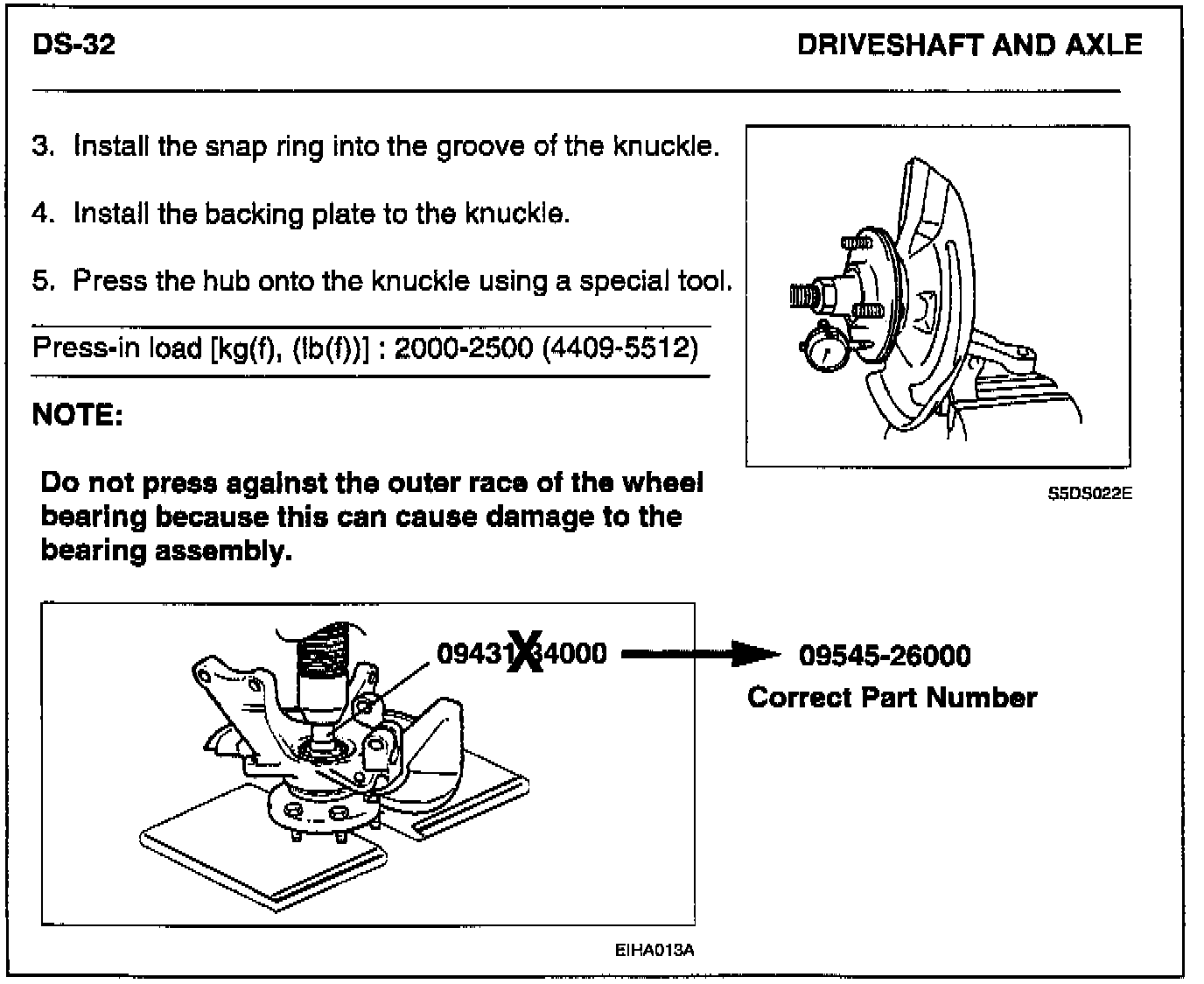

The special tool part number necessary to perform the re-assembly of the hub onto the knuckle assembly is incorrect on page DS-32 of the 2001 Santa Fe Shop Manual. The correct tool part number is shown.
