Drivetrain - Transfer Case Fluid Leaks: Overview

Group: TRANSAXLE

Number: 03-40-012

Date: JUNE, 2003

Model: ALL SANTA FE

Subject
TRANSFER CASE OIL LEAK DIAGNOSIS
AND REPAIR PROCEDURES

DESCRIPTION:

This bulletin provides diagnostic information, repair procedures, parts information and labor time information to service transfer case oil leaks.

VEHICLES AFFECTED:

^ Model: ALL SANTA FE vehicles with full time 4WD system





AFFECTED LOCATIONS:

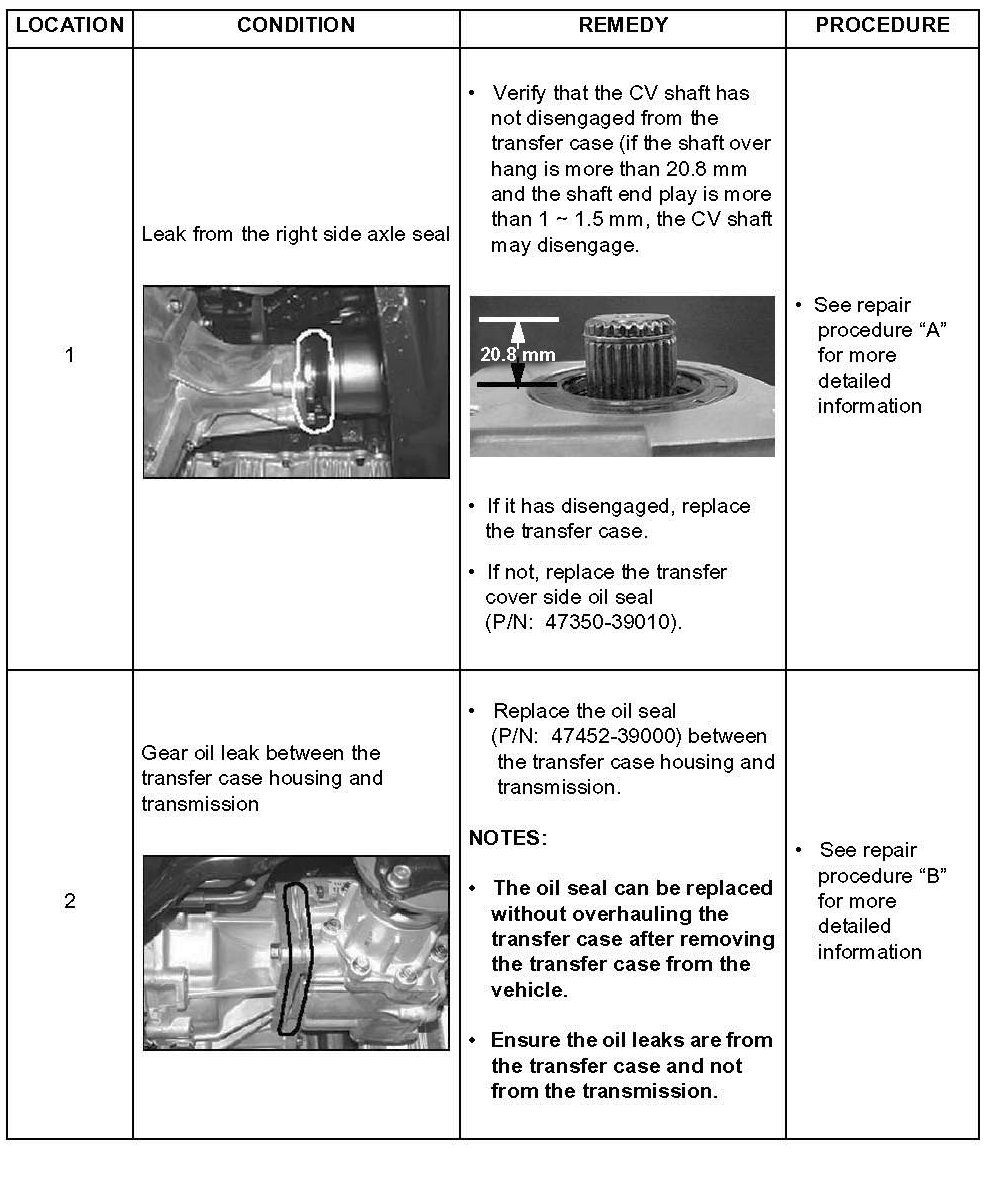

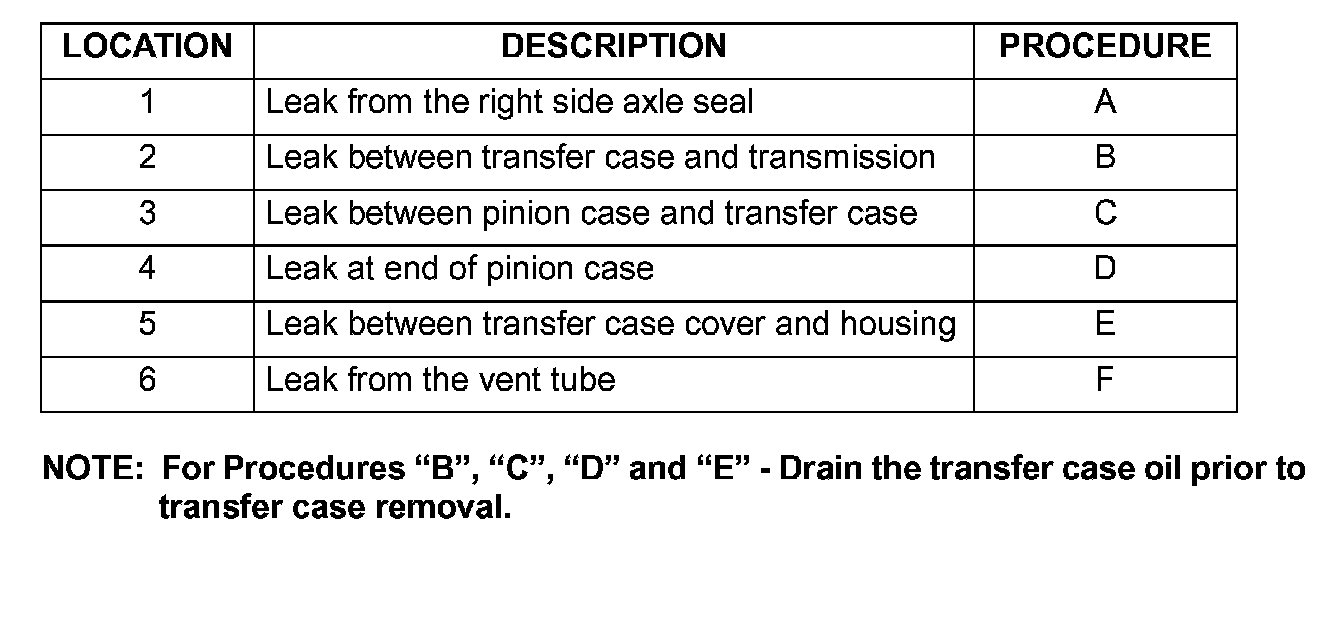

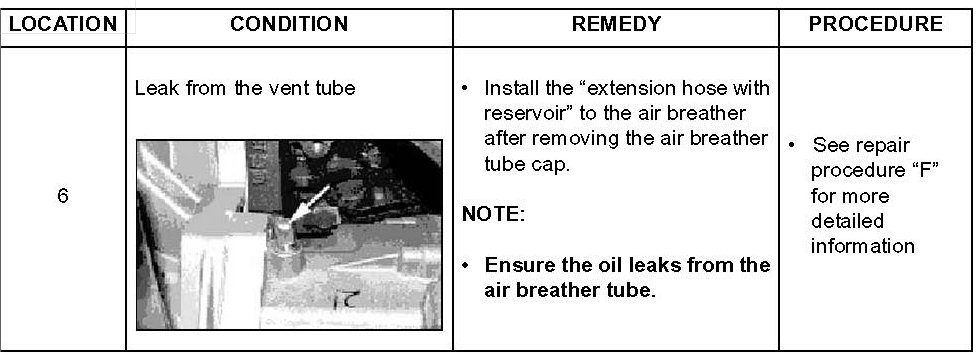

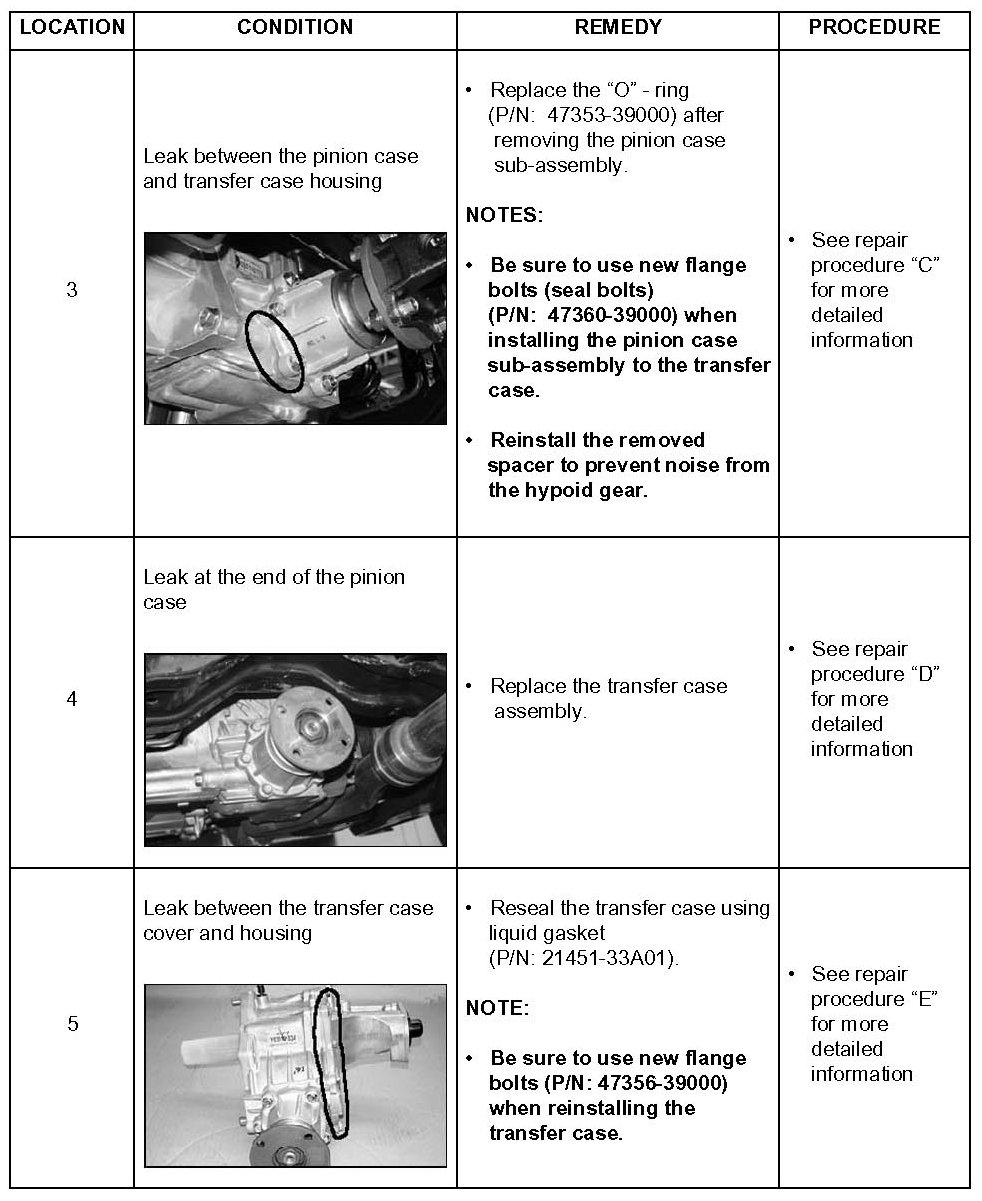

LOCATION DESCRIPTION AND CORRESPONDING SERVICE PROCEDURE:











SERVICE INFORMATION:

TRANSFER CASE OIL SPECIFICATION:

SHELL SPIRAX AX (SAE 80W/90, API GL-5)

NOTE:
For oil quantity and fill procedure, refer to the applicable Shop Manual procedure.

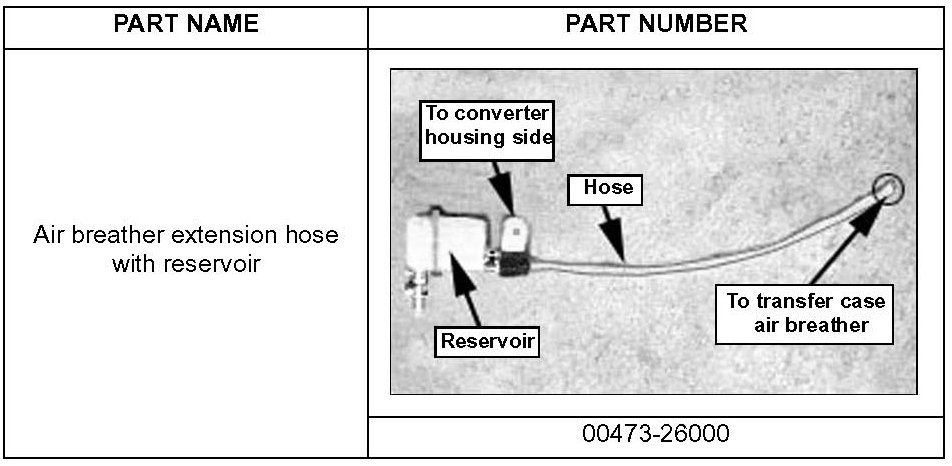

PART INFORMATION:

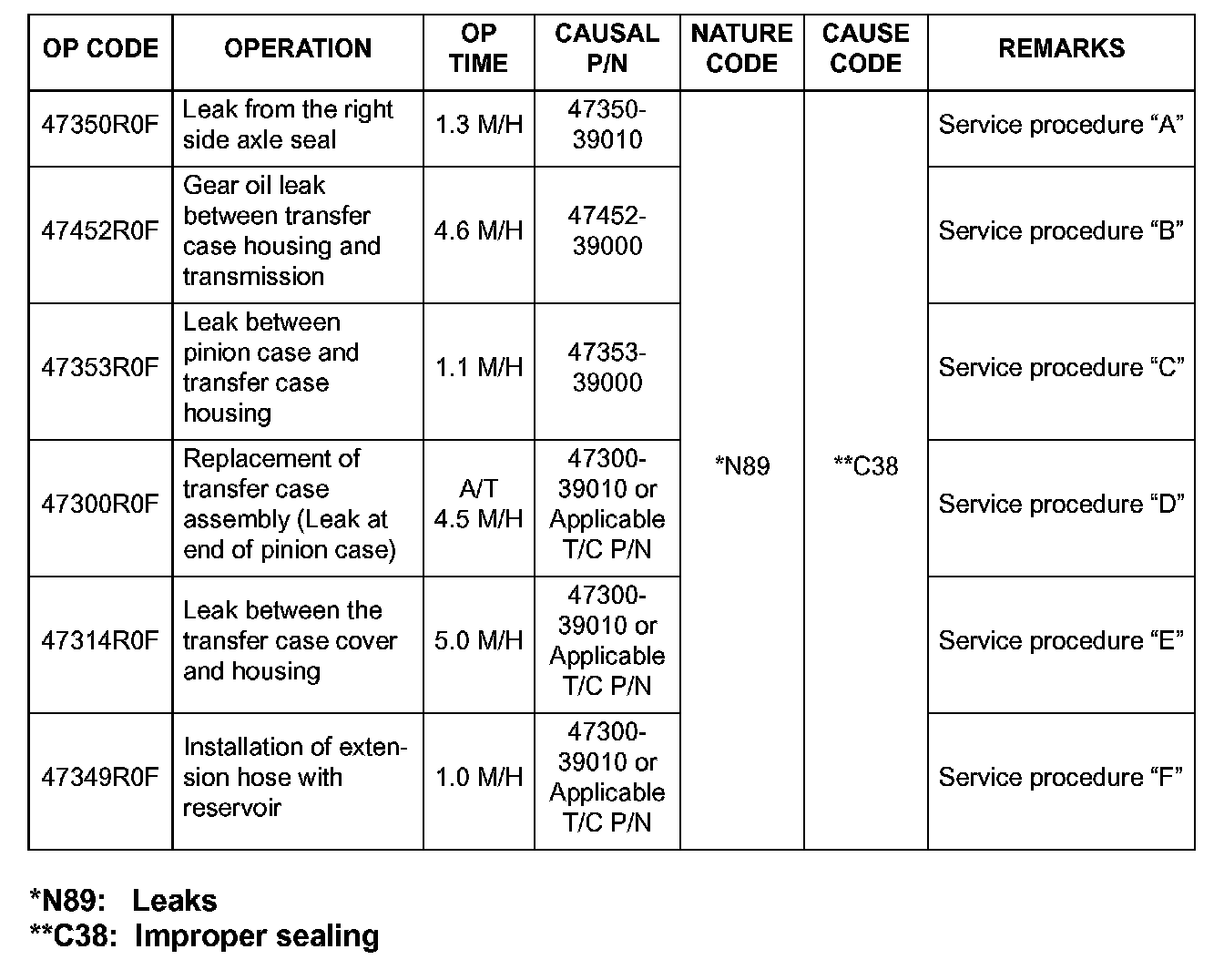

WARRANTY INFORMATION:
