Power Window Switch: Testing and Inspection
1.
Remove the switch from the door trim panel.
2.
Check for continuity between the terminals. If continuity is not as specified in the table, replace the
power window switch
.

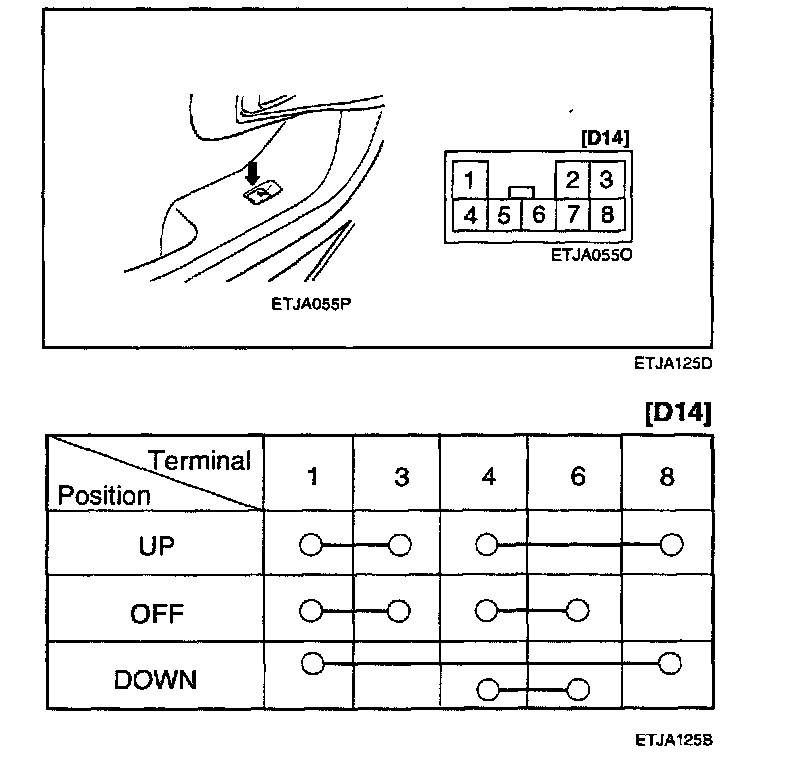

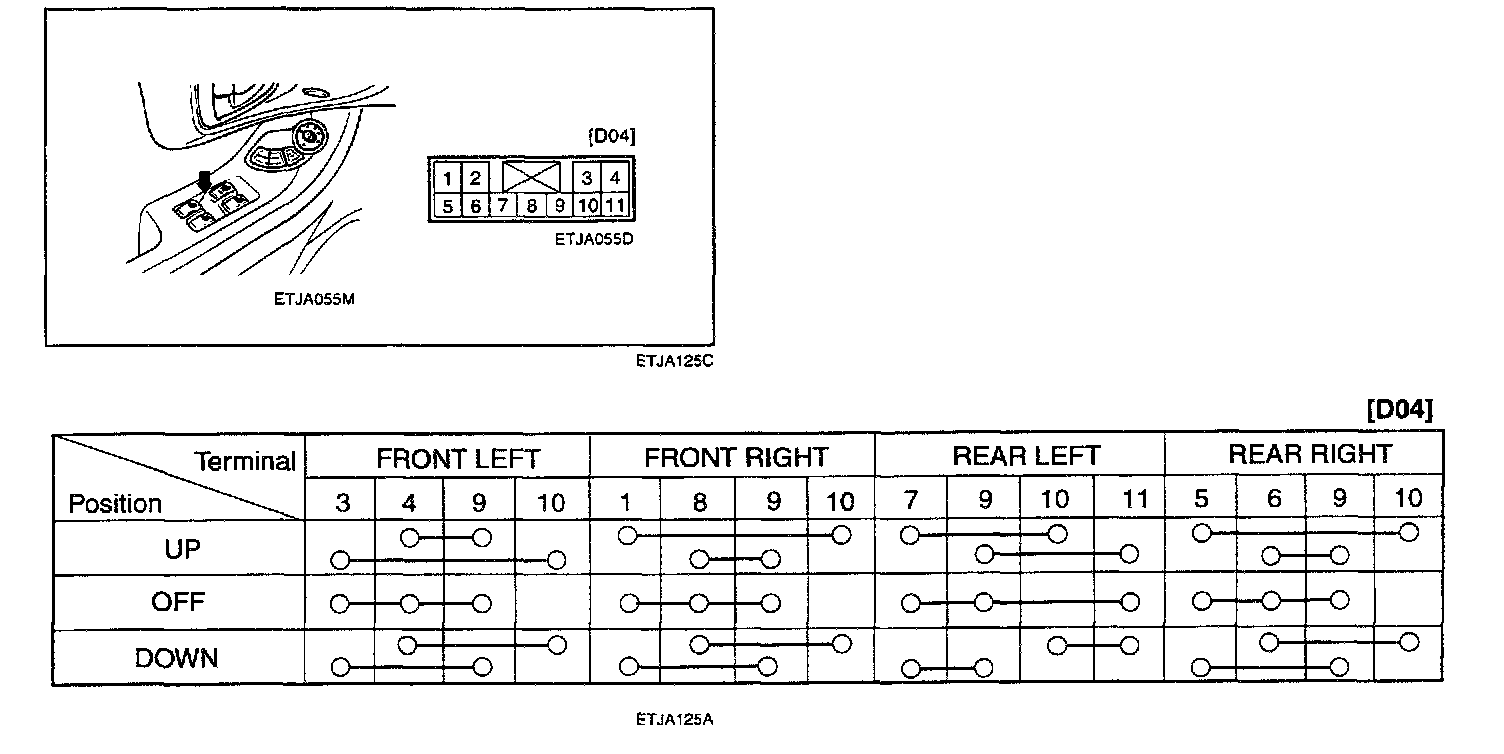

Power Window Main Switch:
Power Window Sub Switch:
