Liftgate Window Glass: Service and Repair

Tailgate Glass:

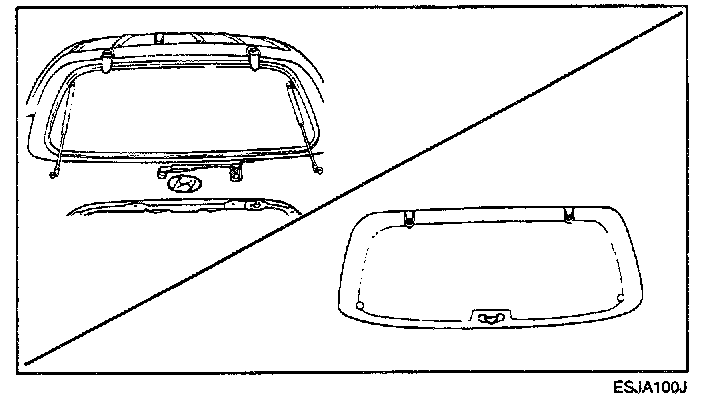

COMPONENTS

REMOVAL

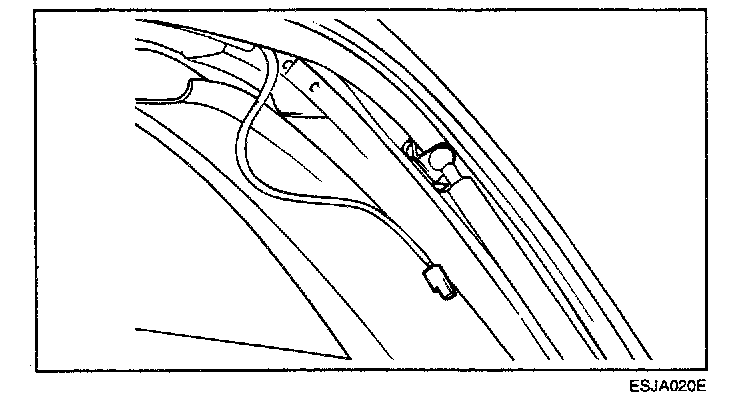

1. Remove the heater connector from the tailgate glass.

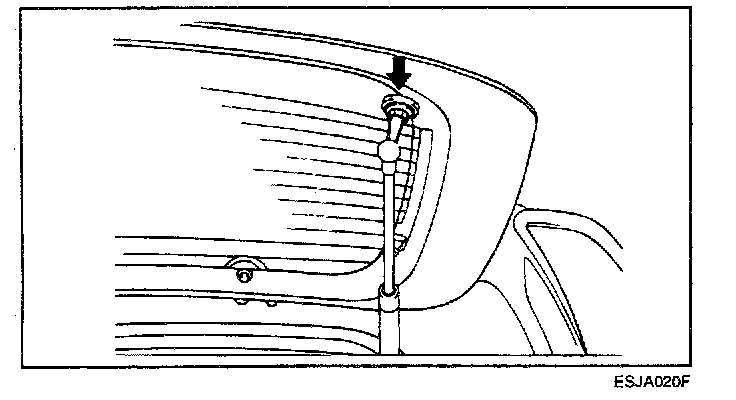

2. Loosen the nuts holding the tailgate glass strut.

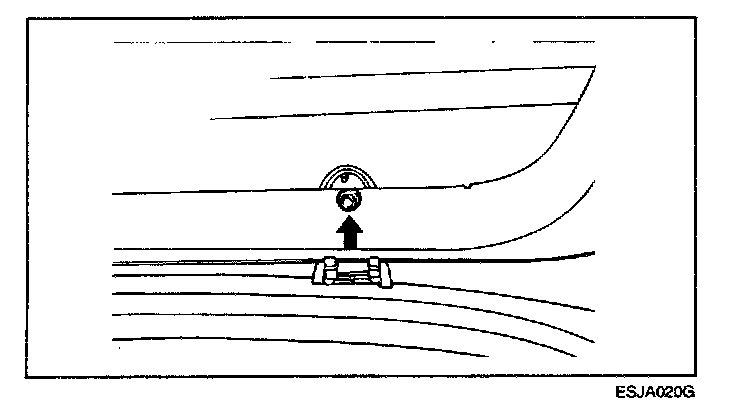

3. Loosen the bolts holding the tailgate glass hinge.




4. Remove the tailgate glass.
