Rear

1. Disconnect the connector from the multifunction switch.

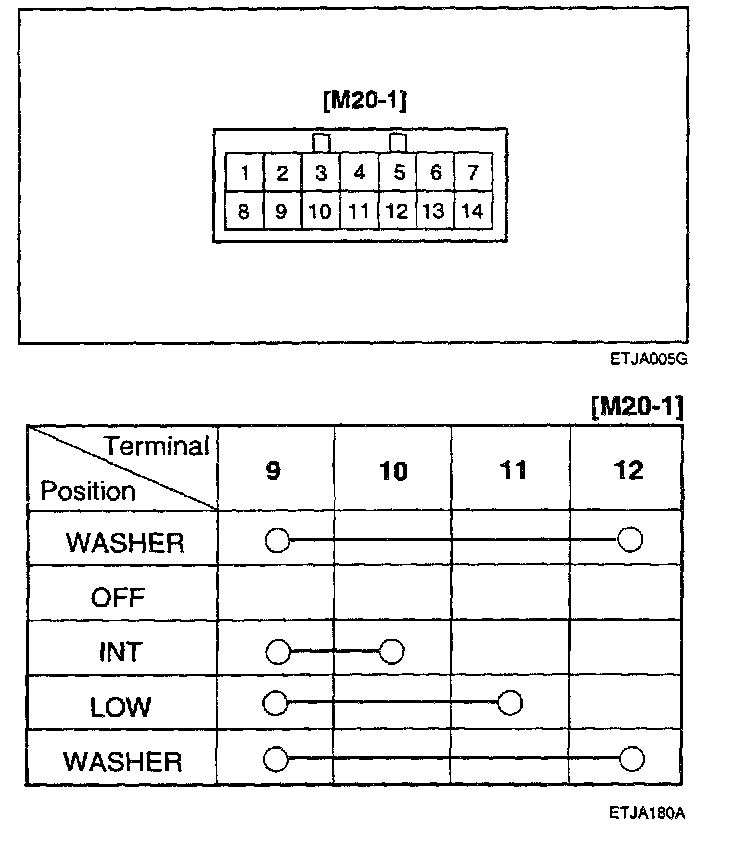

2. Check for continuity between the terminals
