Windshield Wiper/Washer Switch

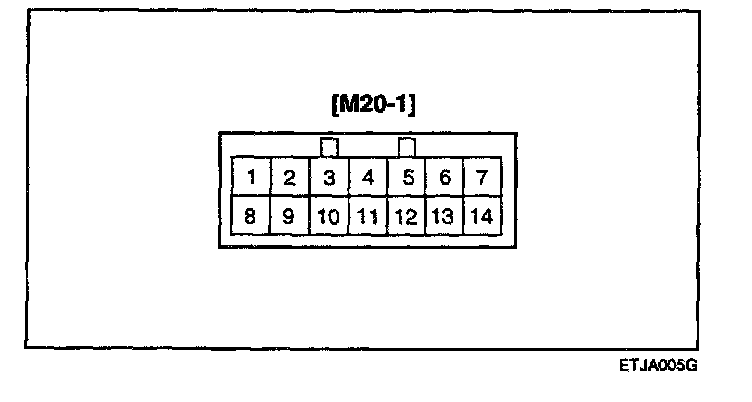

Connector M20-1:




Check the switch for continuity between the terminals.

If continuity is not as specified, replace the wiper and washer switch.

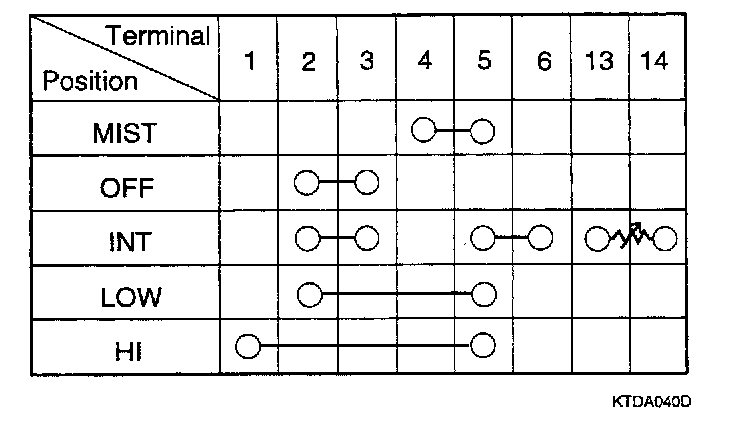

Wiper And Intermittent Volume Switch [M20-1]:

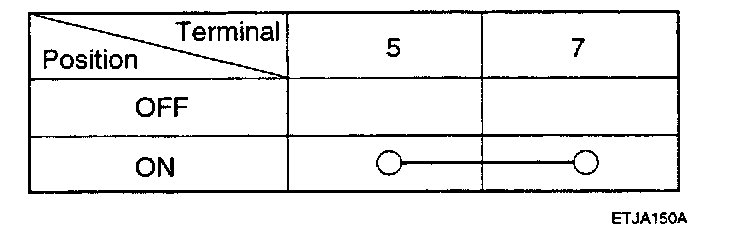

Washer Switch [M20-1]:
