Crankshaft/Camshaft Position Sensor - Manual Update
Group: ENGINE ELECTRICALNumber: 01-36-006
Date: APRIL, 2001
Model: 2001 SANTA FE
Subject:
2001 2.7L V6 SANTA FE ETM PAGE CL-13 CORRECTION
DESCRIPTION:
This TSB corrects the description for the Crankshaft Position (CKP) Sensor Connector Location and the Camshaft Position (CMP) Sensor Connector Location on Page CL-13 of the Santa Fe Electrical Troubleshooting Manual (ETM).

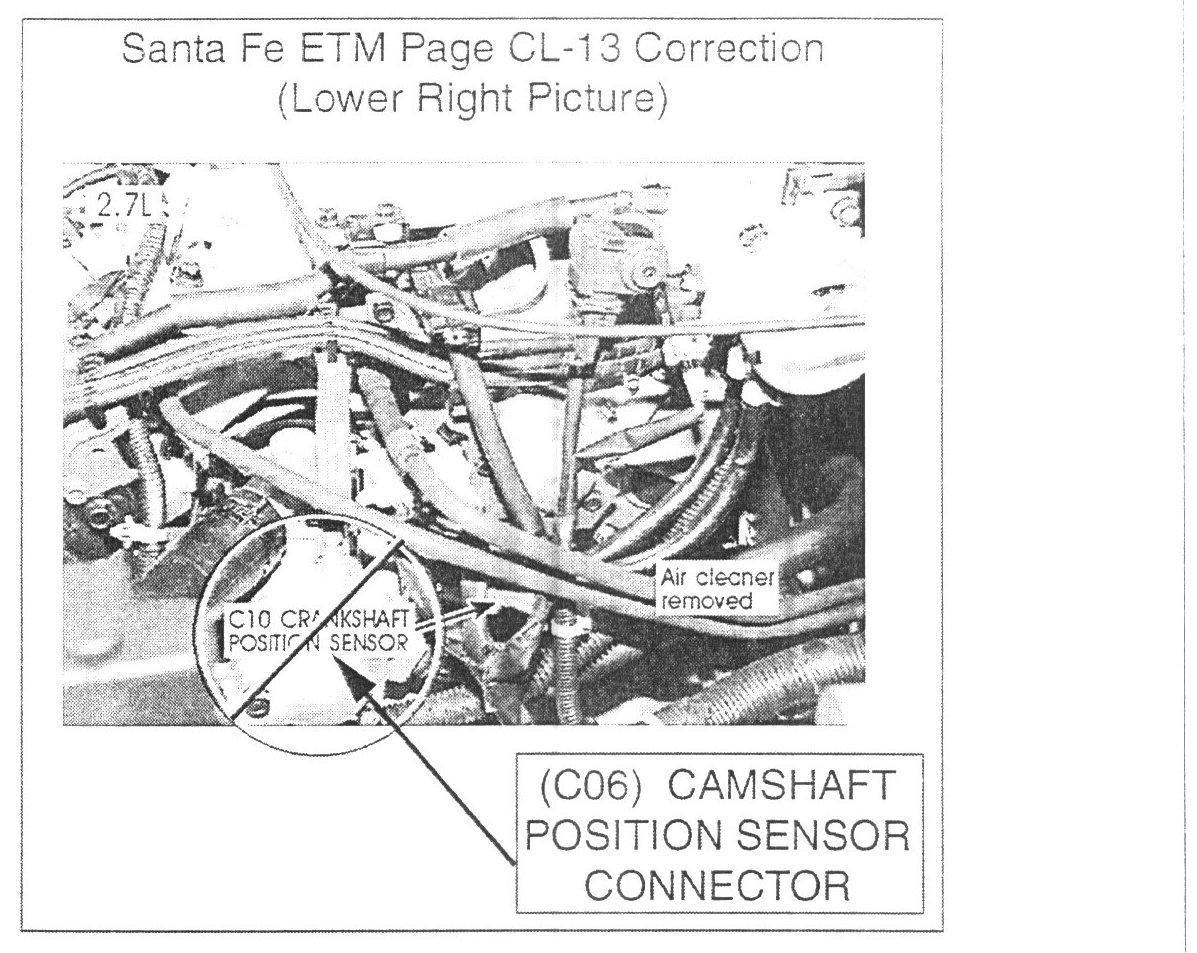

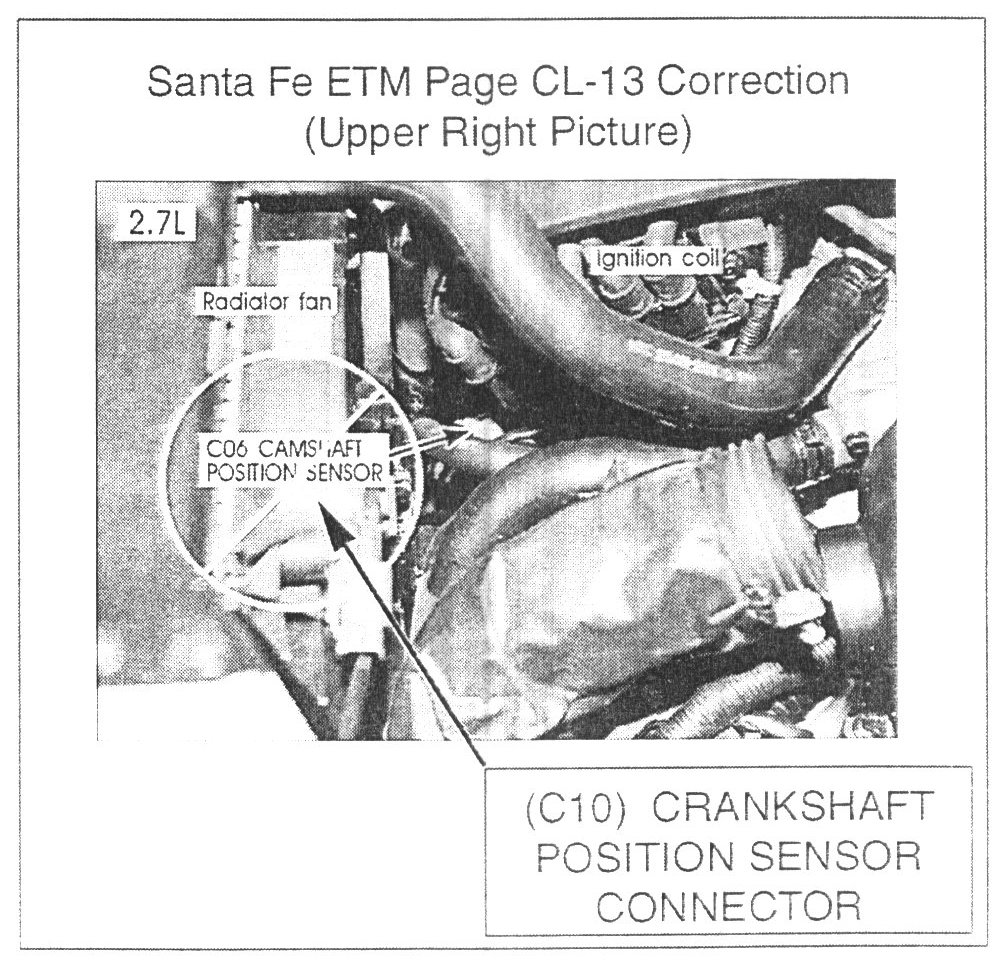

The top right picture and the bottom right picture of the ETM have incorrect labeling for the CKP and CMP sensors.
Please write this TSB number at the bottom of page CL-13 of your Santa Fe ETM for future reference.
