IAT Sensor - Resistance Correction

Group: ENGINE ELECTRICAL

Number: 02-36-003

Date: FEBRUARY, 2002

Model: 2001-2002 SANTA FE V6

Subject:
2001-02 SANTA FE V6 INTAKE AIR TEMPERATURE (IAT) SENSOR RESISTANCE SHOP MANUAL CORRECTION

DESCRIPTION:

The 2001-2002 Santa Fe Shop Manuals contain incorrect information for the Intake Air Temperature (IAT) Sensor internal resistance for the V6 Engine.

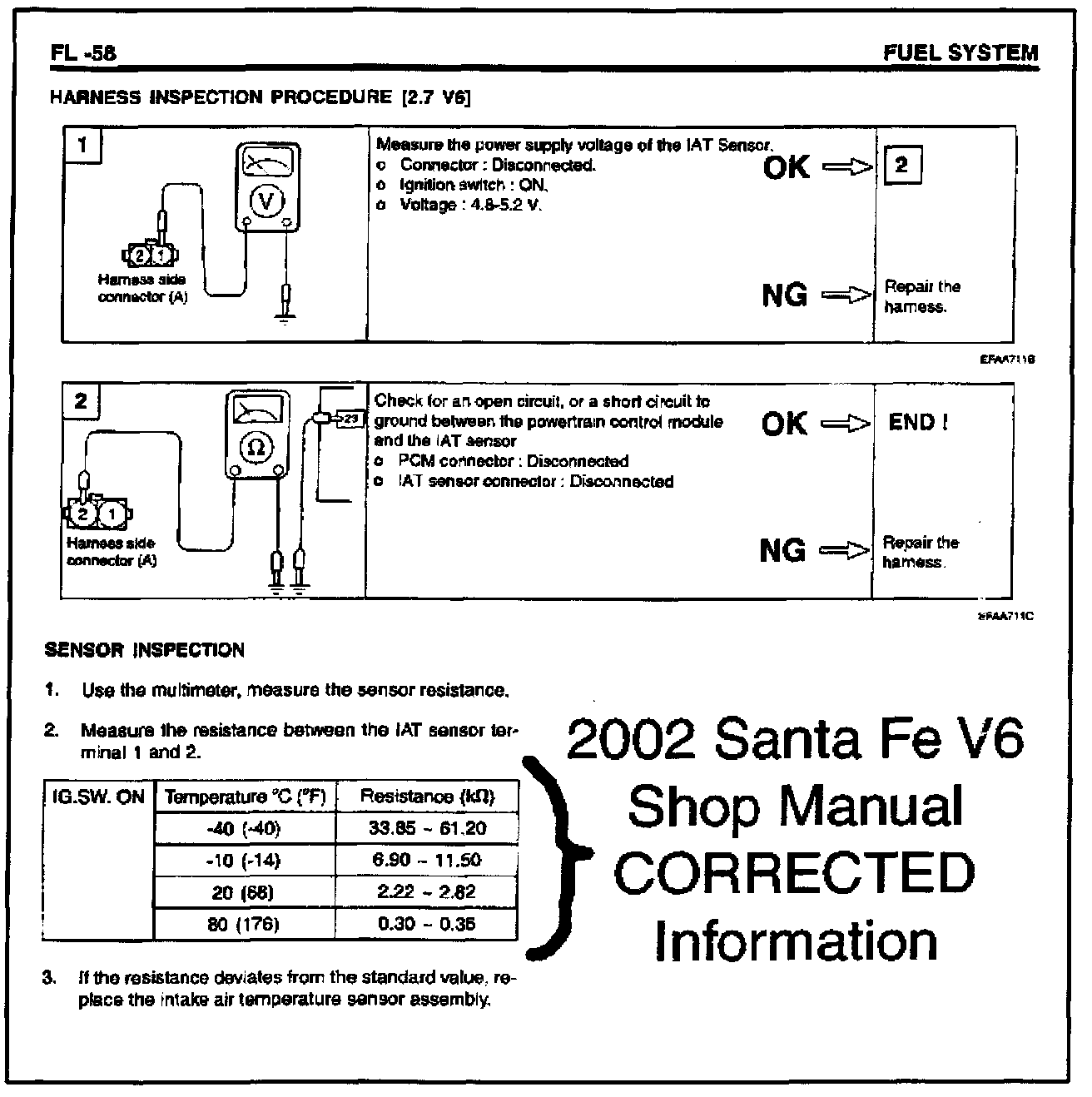

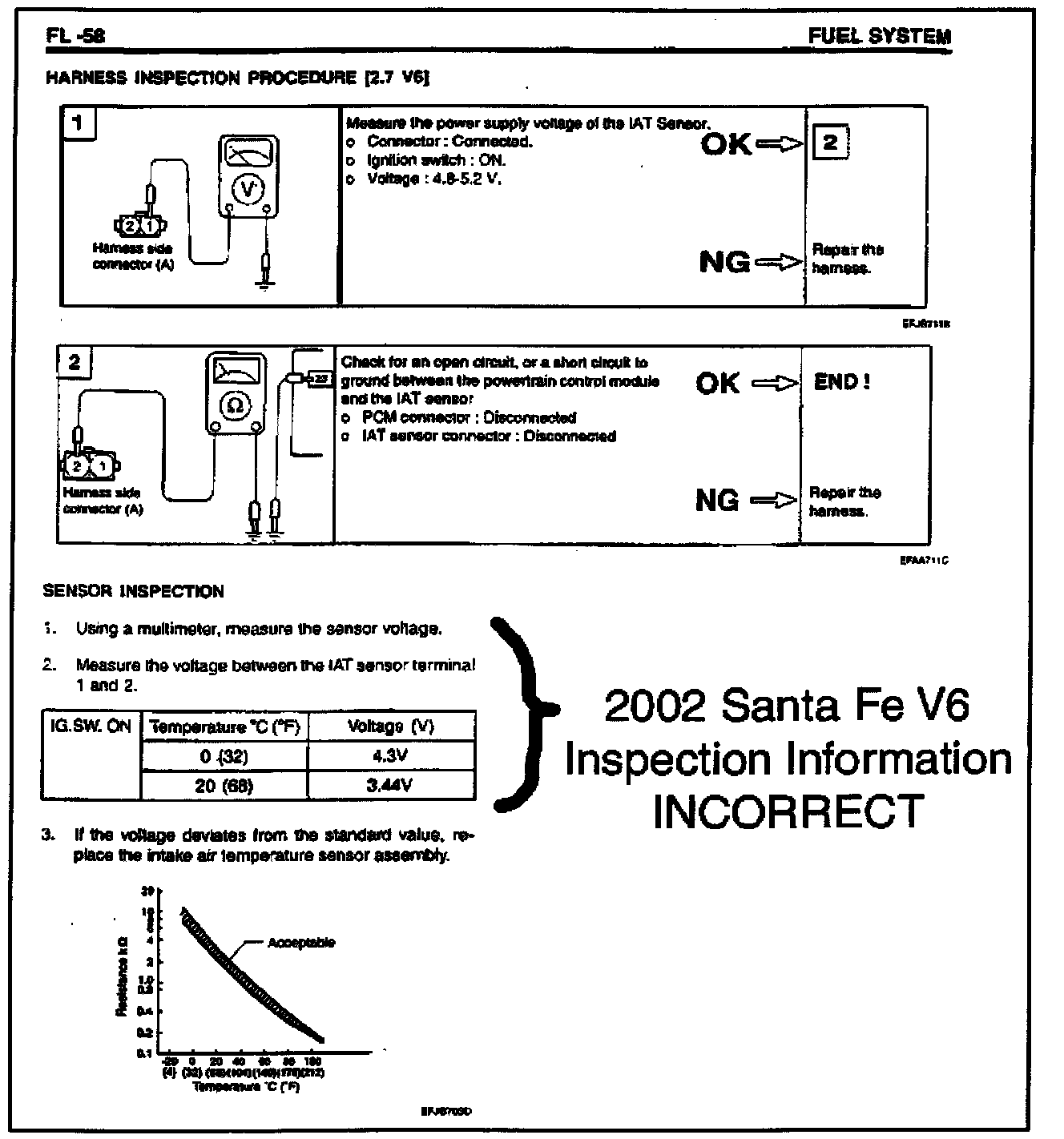

Please see the illustrations shown (example is 2002 Santa Fe Shop Manual). The illustrations apply to the 2001 Santa Fe as well.

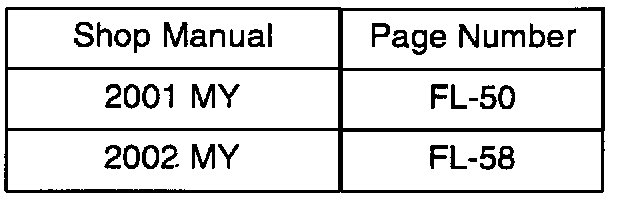

For future reference, write this TSB number on the top of the pages in the table.
