Manual Update Procedure

NOTE
In the event that menu option "01. SM 2.7 01MY/02MY ECM/AUTO MODE]" does not download the new program, option "02. SM 2.7 01MY/02MY ECM [ERROR MODE]" must be used.

1. Turn the ignition to the ON position.

2. Turn the Hi-Scan Pro ON and press ENTER.

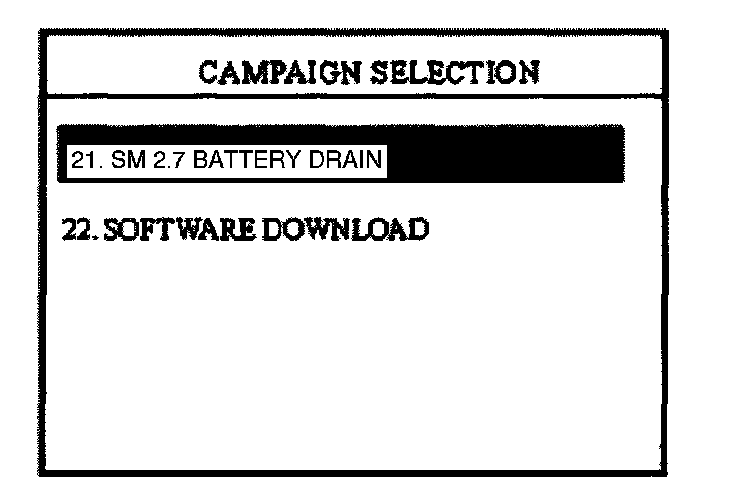

3. Select option "21. SM 2.7 BATTERY DRAIN" and press ENTER.

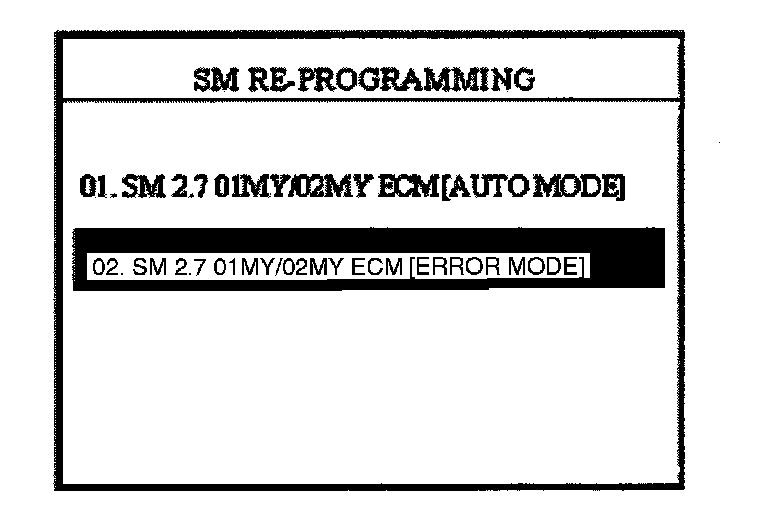

4. Select option "02. SM 2.7 01MY/02MY ECM [ERROR MODE]" and press ENTER.

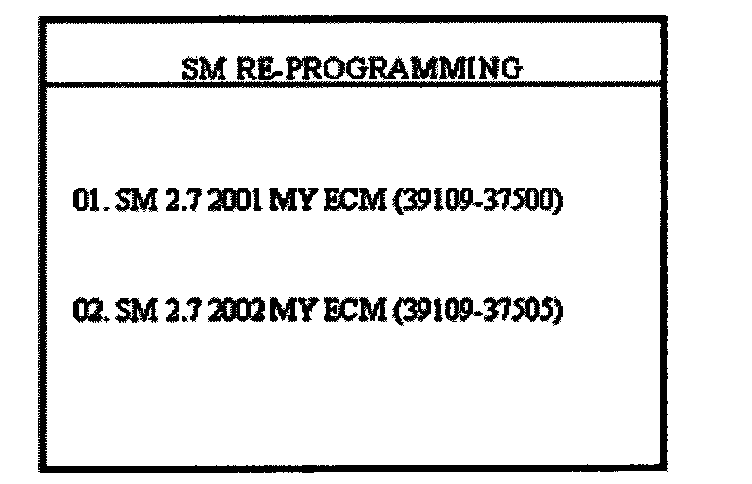

5. Choose the correct specification for your vehicle by identifying the VIN and BCM specification table.

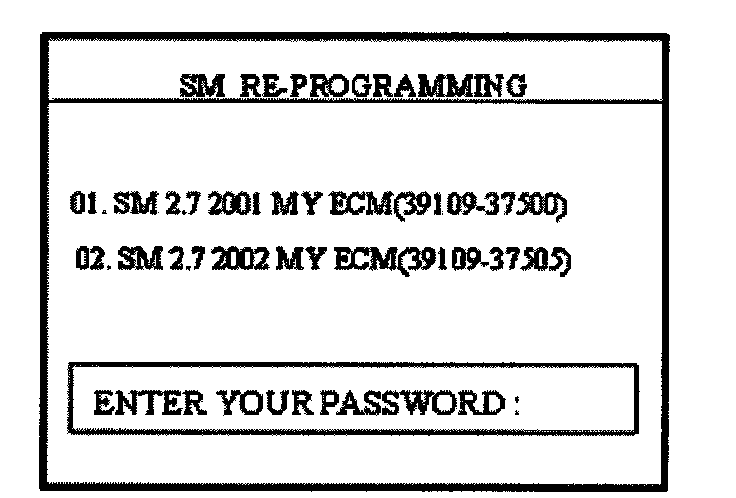

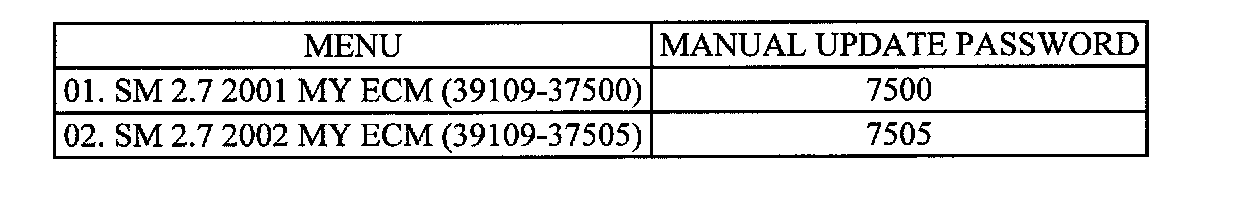

6. Select the correct password for manual update by using the table below. Enter the correct password and press ENTER.

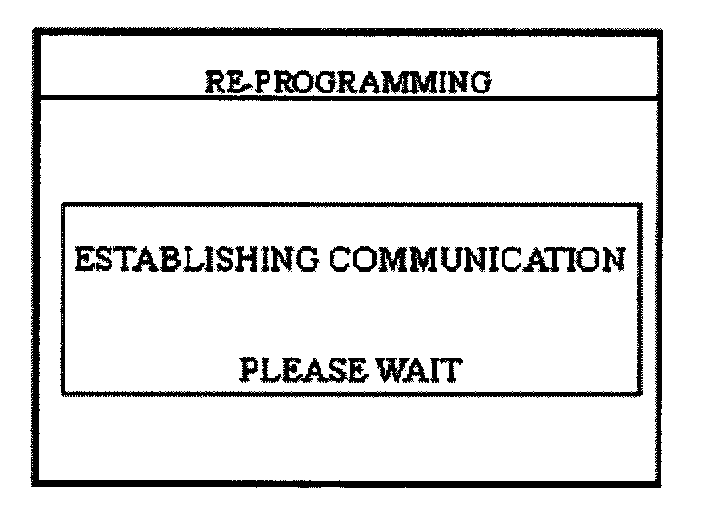

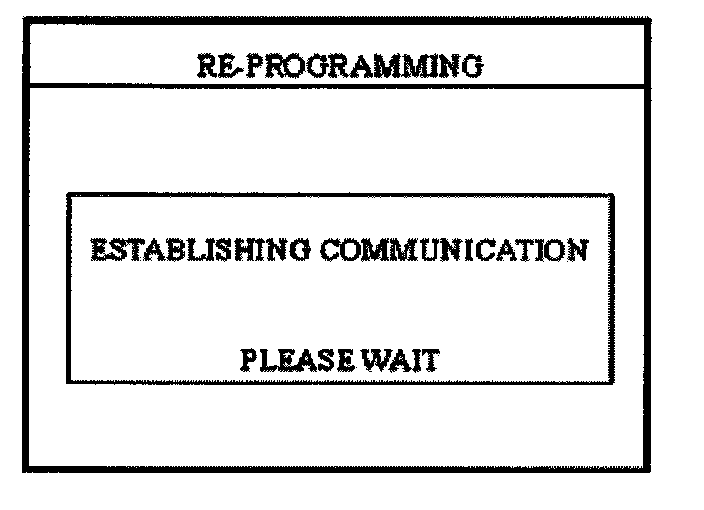

7. Hi-Scan Pro will establish communication. Hi-Scan Pro will reprogram the BCM.

NOTE

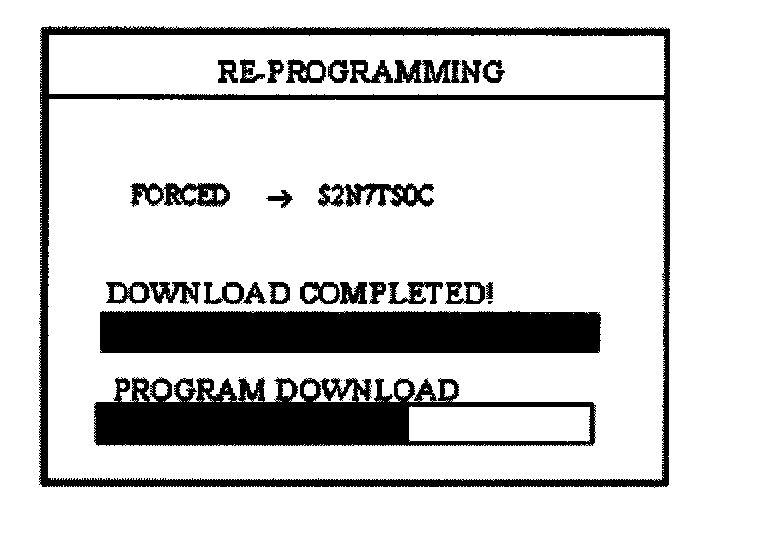

^ Hi-Scan Pro displays the new ECM ID on the screen.





^ The program will take approximately 7 minutes to download completely.

WARNING

^ Do not interrupt the reprogramming at any time. The ECM will be rendered inoperative if the program does not download completely.





8. Hi-Scan Pro reinitializes the ECM.

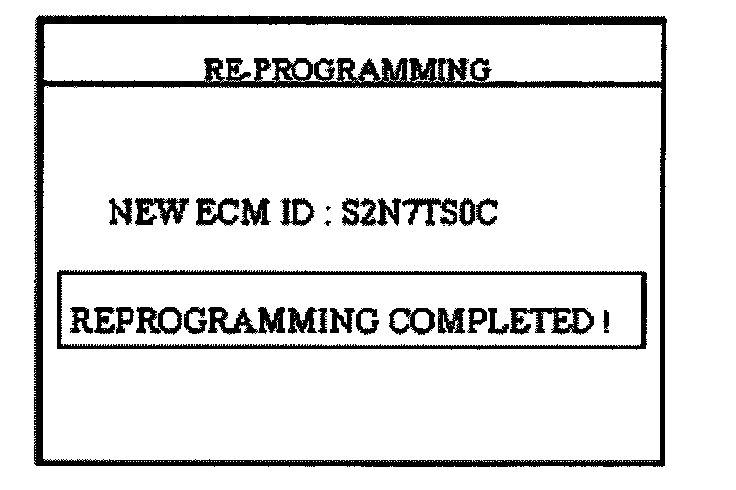

9. When the "COMPLETED" message is displayed, check the new ECM ID displayed on the Hi-Scan Pro screen to verify that the correct BCM software has been downloaded. The ID number should read "S2N7TS0C". Turn the Hi-Scan Pro OFF and the process is complete.

10. When the reprogramming is completed successfully, turn the ignition to the OFF position and then start the engine to check for proper operation.
