Replacement Procedure

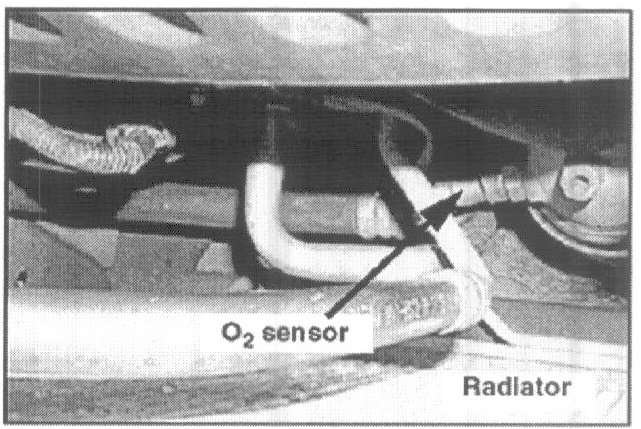

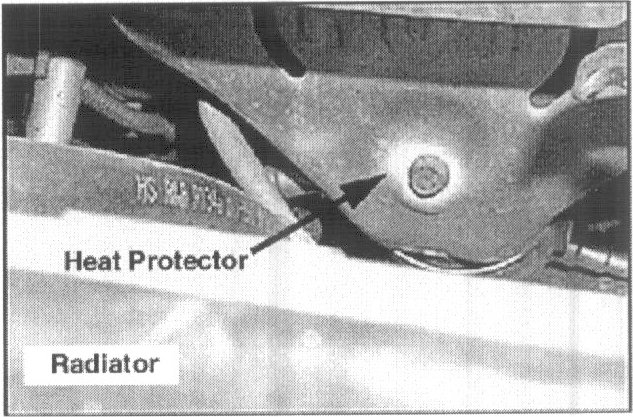

1. Locate the bank 2 02 sensor (upstream). Remove the heat protector mounting bolts (3 each) to the bank 2 exhaust manifold.





2. Using a 22 mm wrench, remove the 02 sensor afier disconnecting the sensor connector.

Install the new 02 sensor (P/N 39210-37165) and torque to 32 lb.-ft. Reconnect the sensor connector.

3. Reinstall the heat protector.

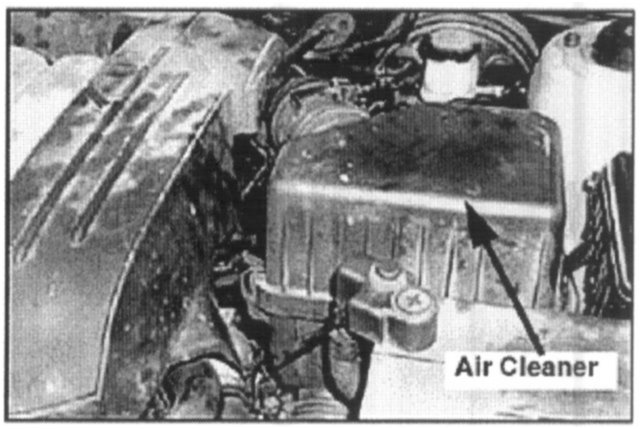

4. Remove the air cleaner cover and the hose attached to the throttle body as an assembly.

5. Locate the bank 1 02 sensor (upstream) connector and disconnect it.





6. Raise the vehicle.

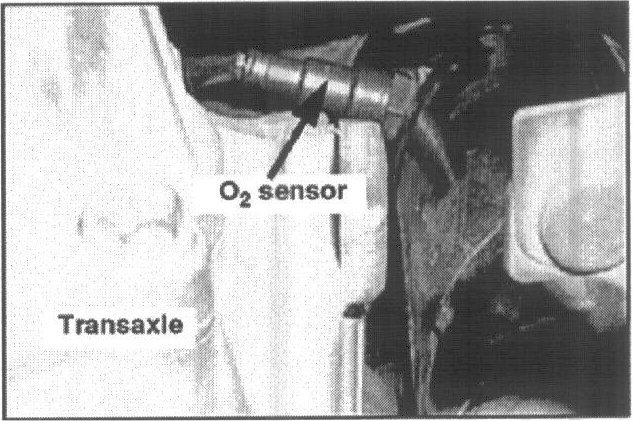

7. Locate the bank 1 02 sensor (upstream). Remove the 02 sensor using a 22 mm wrench.





8. Install the new 02 sensor (P/N 39210-37125) and torque to 32 lb-ft.

9. Lower the vehicle. Reconnect the disconnected 02 sensor connector. Reinstall the air cleaner assembly.
