Manual A/C Compressor Controls

MANUAL A/C

Manual A/C Control Panel Assembly - Rotary Type:




Manual A/C Control Panel Assembly - Rotary And Push Button Type:






CHECKING CONTROL PANEL ASSEMBLY

BLOWER SWITCH

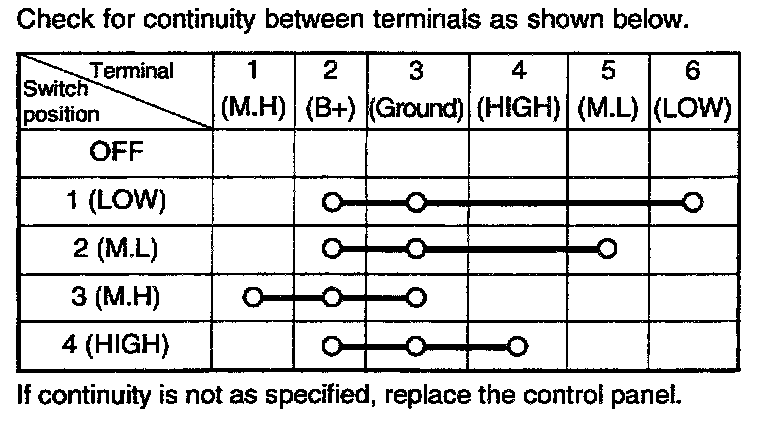

Blower Switch:










AIR CONDITIONING SWITCH

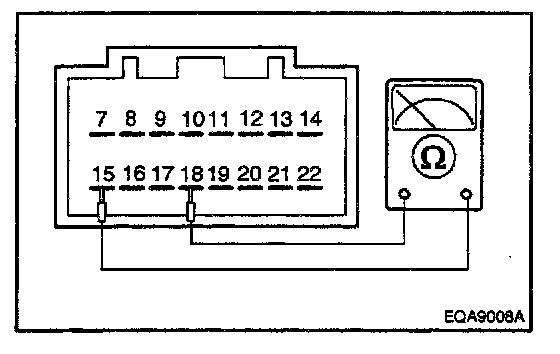

Air Conditioning Switch Connector:





1. Check for continuity between terminals No.21 and No.22.


MODE CONTROL SWITCH

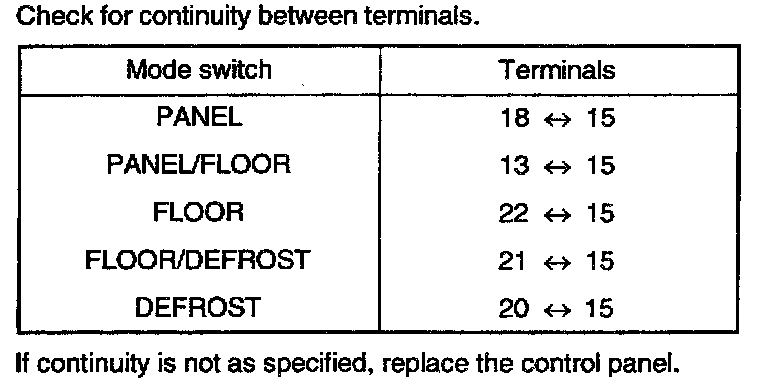

Mode Switch:





Air Conditioning Switch Connector:





(Rotary and push button type only)


FRESH RECIRC BUTTON

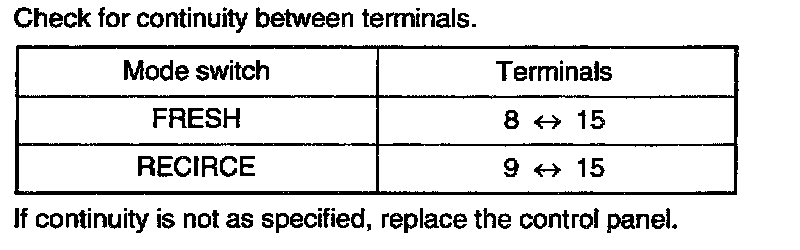

Fresh/Recirc Button:





Air Conditioning Switch Connector:
