Relay Box: Testing and Inspection

INSPECTION
1. Remove the head lamp and tail lamp relays from engine compartment relay box

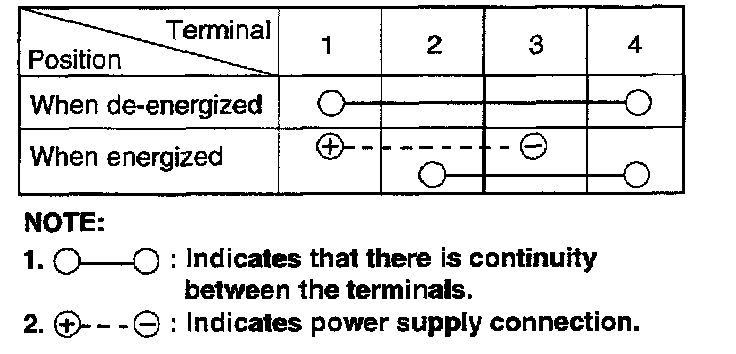

2. Check for continuity between the terminals.
