A/T Torque Data

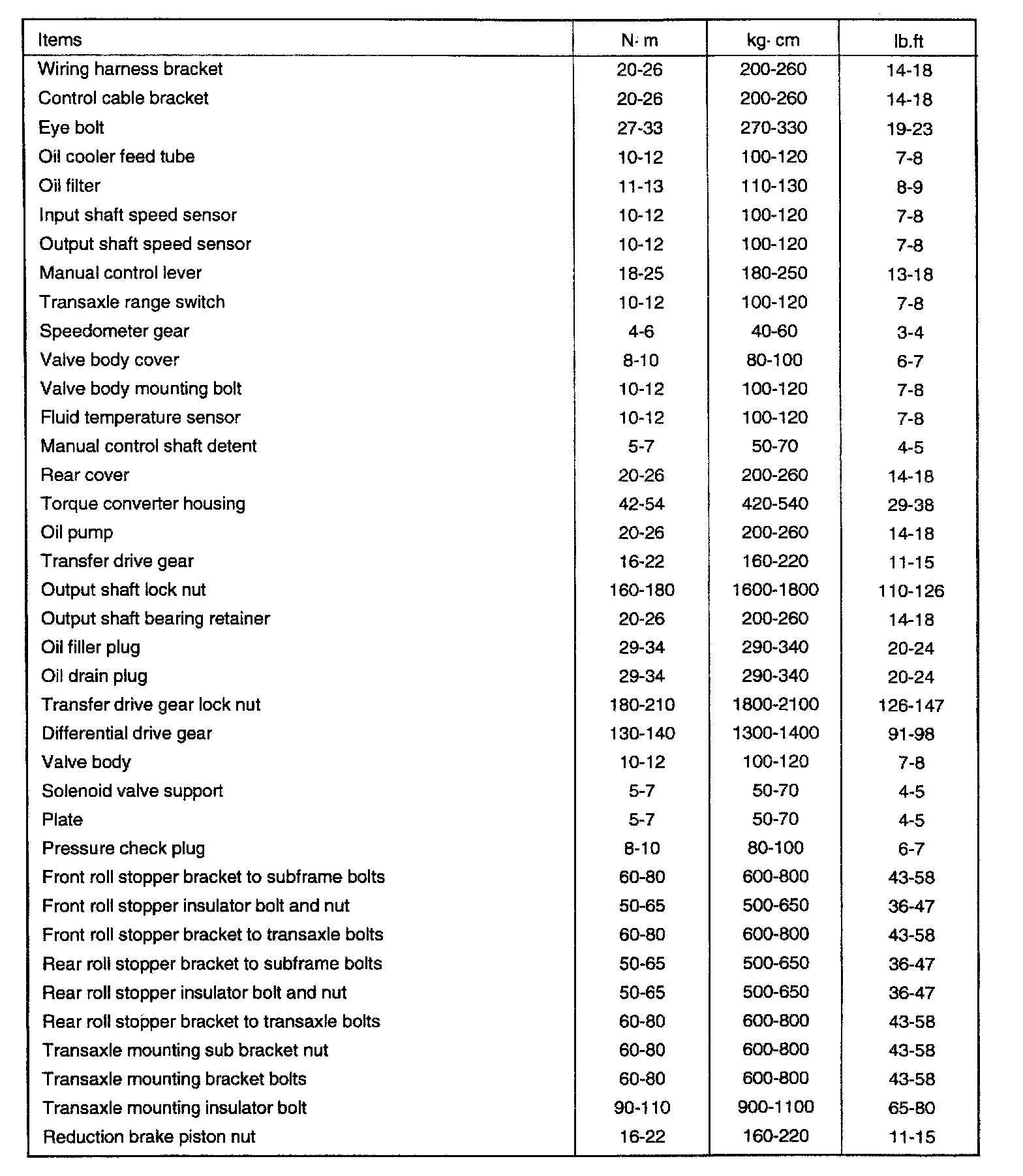

F4A42 4-spd A/T, Transaxle Torque:

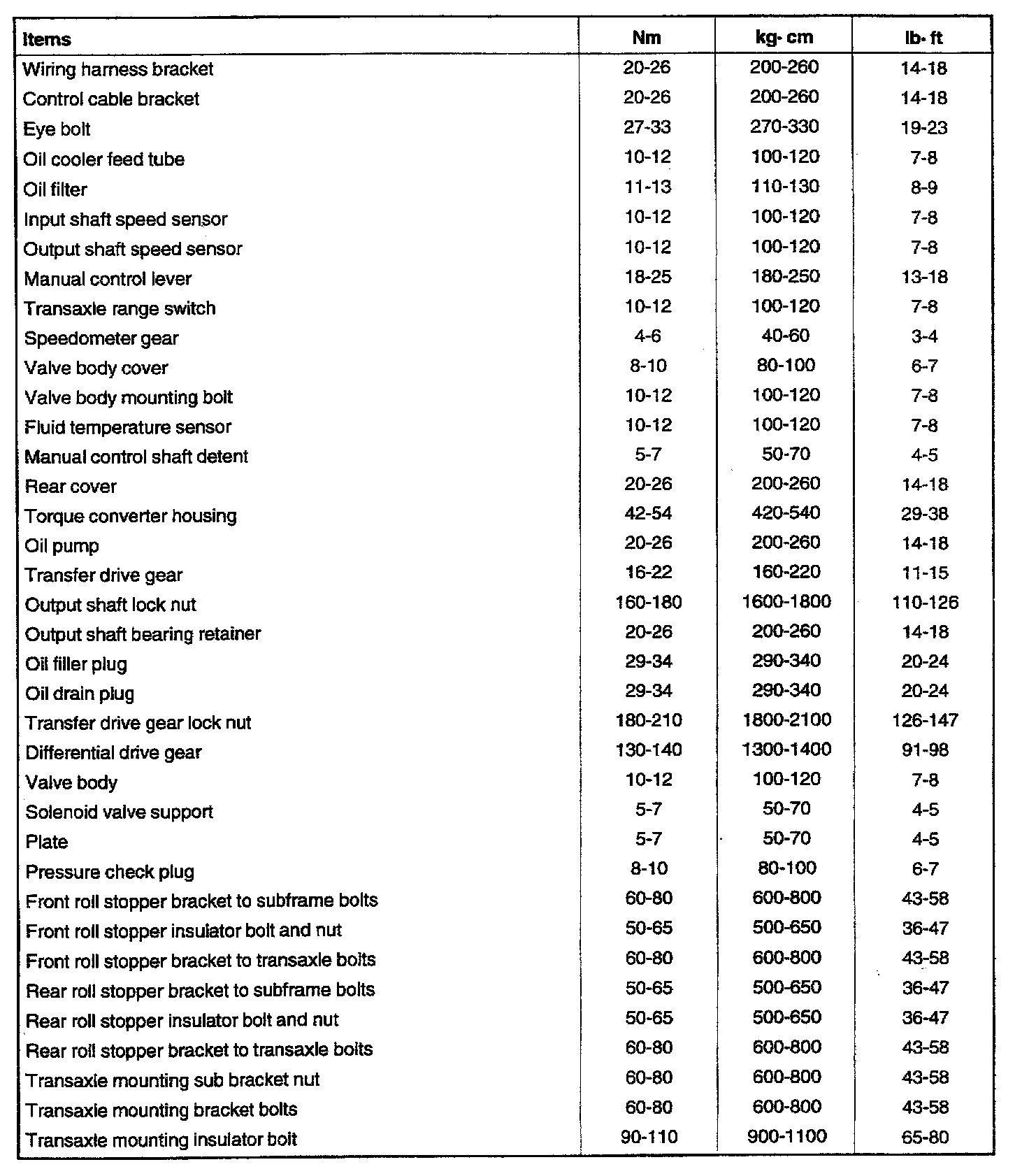

F4A42 4-spd/F5A51 5-spd A/T, Transmission Torque:










Drive Plate
