Tightening Torque Specifications

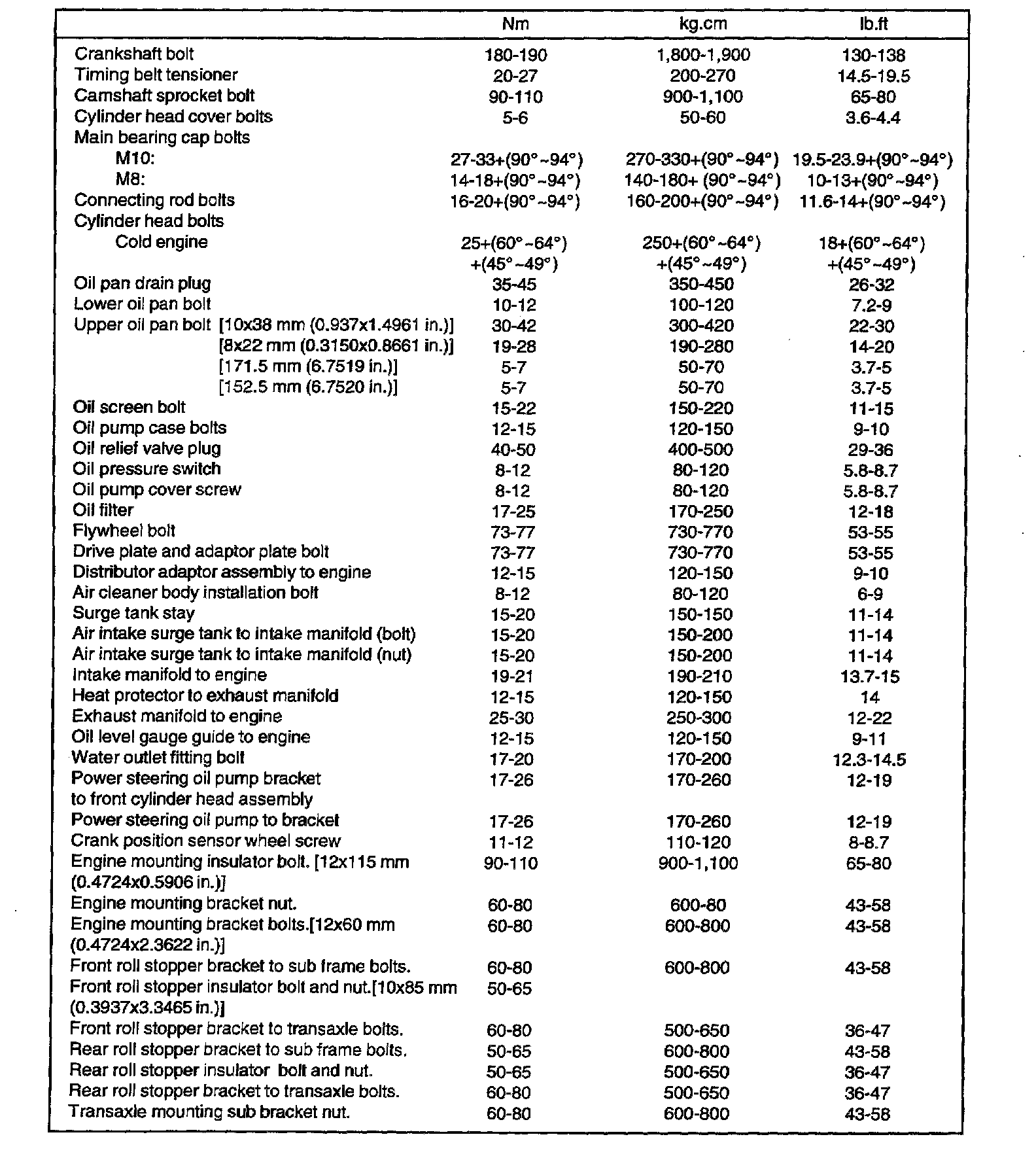

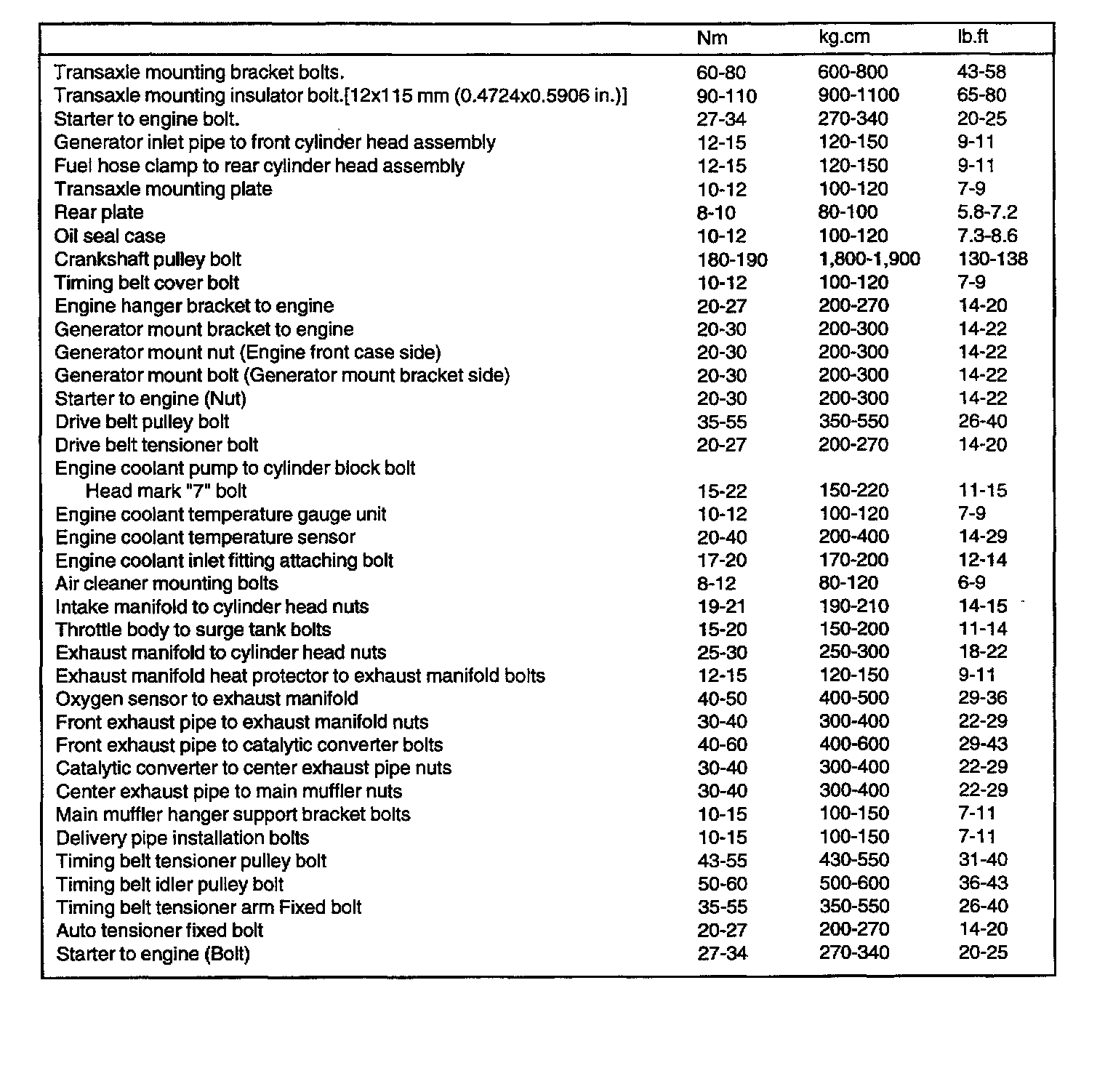

TIGHTENING TORQUE





1 of 2





2 of 2

Camshaft Bearing Cap Bolts
Tighten to 10-12 Nm (140-150 kg-cm, 10-11 lb-ft)

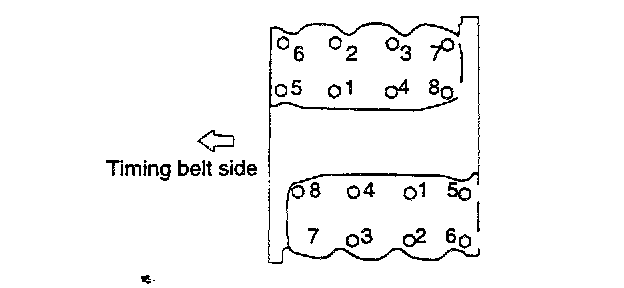

Sequence




Cylinder Head Installation
