Power Window Main Switch




POWER WINDOW MAIN SWITCH
1. Disconnect the power window main switch.
2. Operate the switch, and check for continuity between the terminals.
3. If continuity is not as specified, replace the switch.

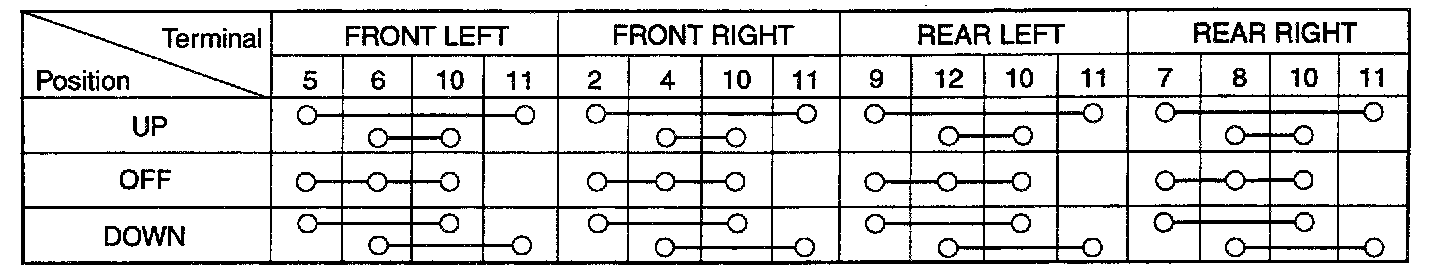

Power Window Main Switch (D04):

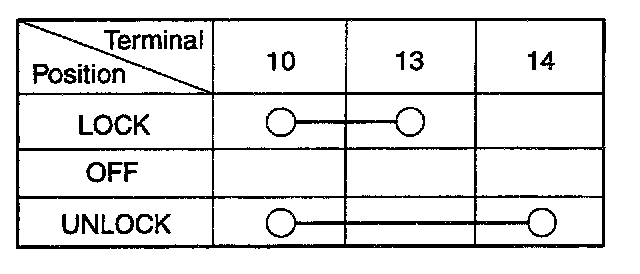

Door Lock Switch (D04):

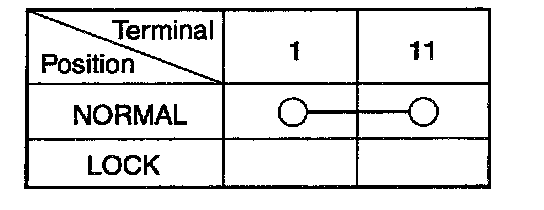

Window Lock Switch (D04):
