Wiper and Washer Systems: Service and Repair

Windshield Wiper And Washer:

COMPONENTS

REMOVAL

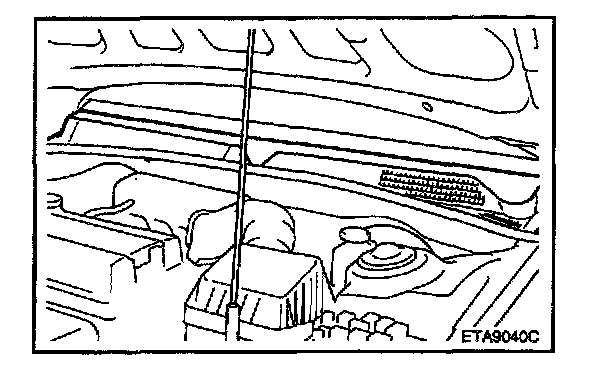

1. Remove the wiper arm.

NOTE: Care must be taken not to scratch the engine hood.

2. Remove the cowl top cover.

3. Disconnect the windshield wiper motor connector and remove the windshield wiper motor and the link.

Tightening torque : 0.7 - 1.1 kgf.m (5.1 - 8.0 lb. ft)
