Programming and Relearning

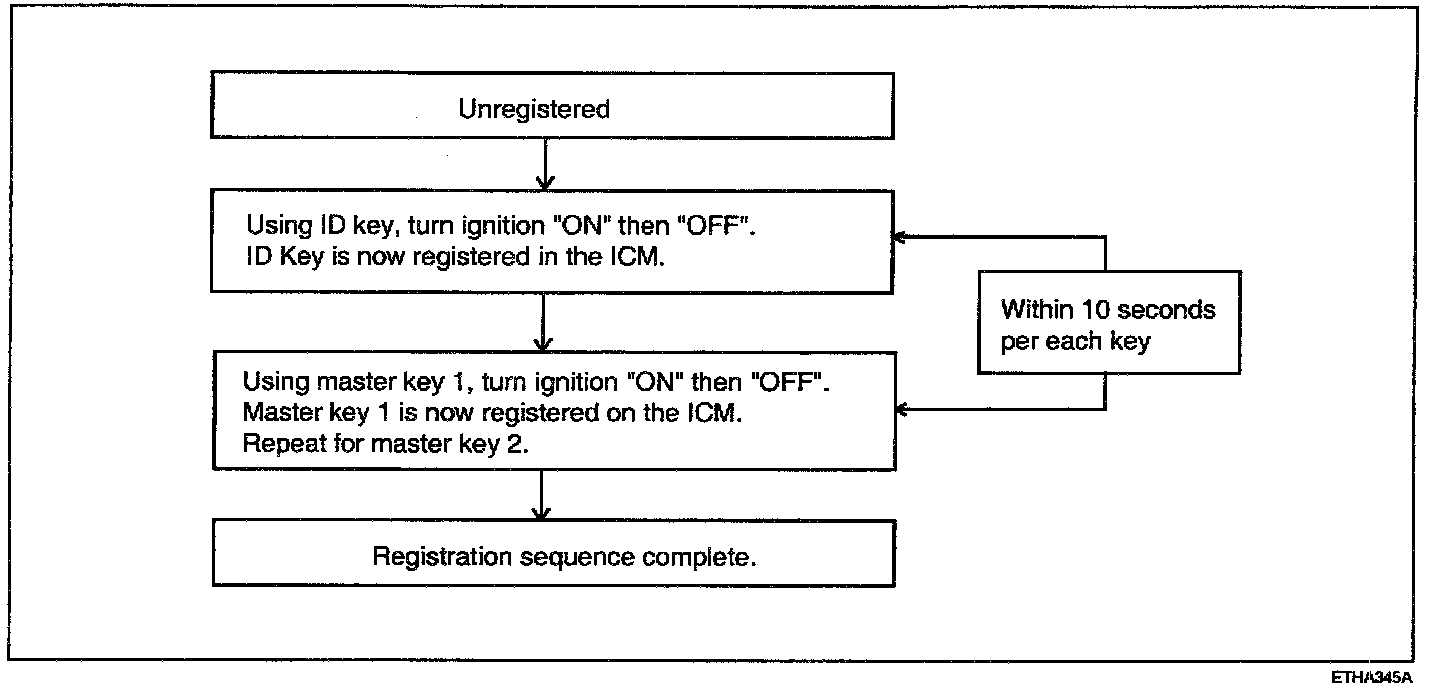

1. ID Code registration sequence

2. Master key correction
If a new set of master keys needs to be produced, it can be done by two methods:

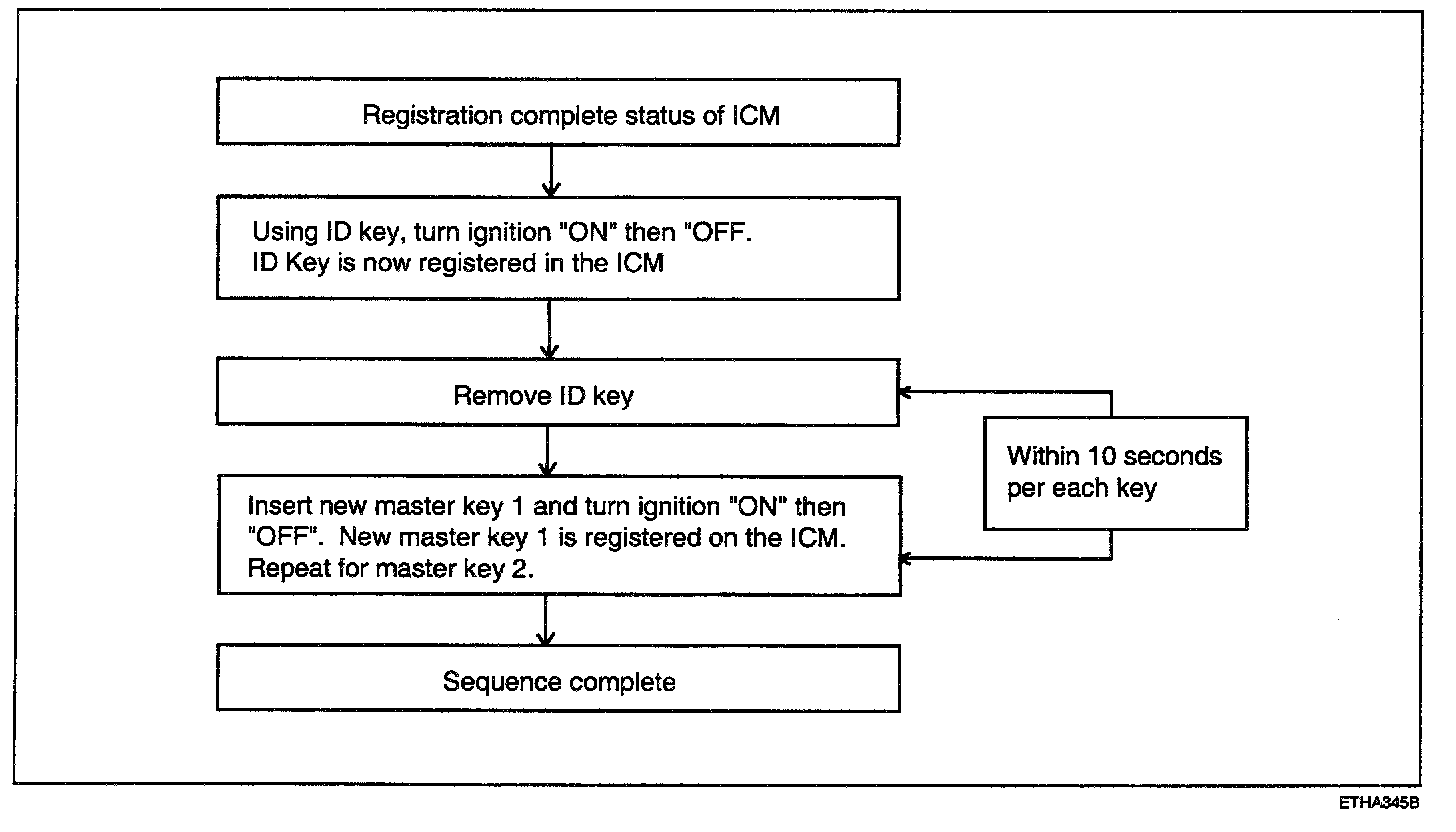

a. Using ID key

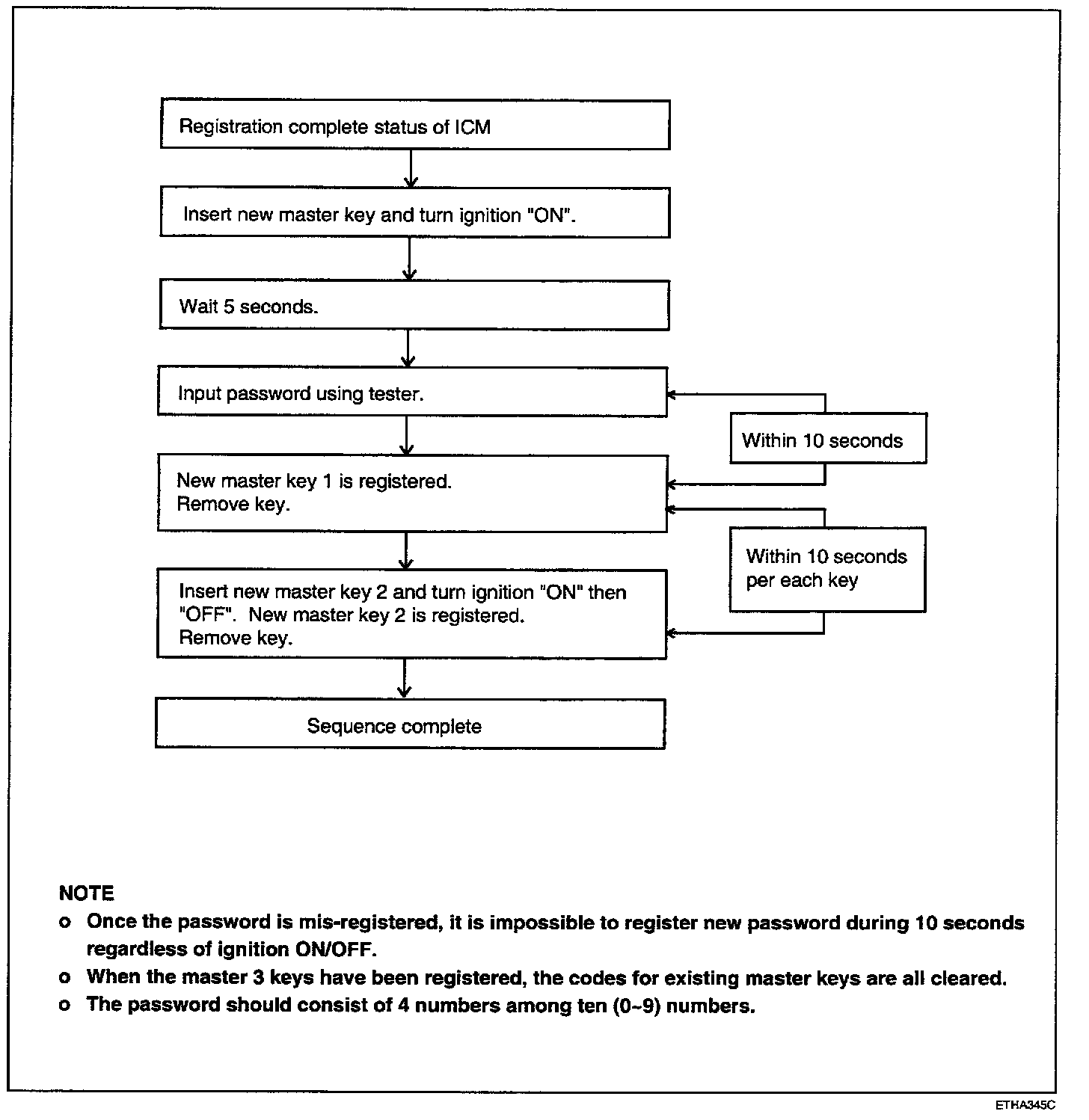

b. Using password
