Fender: Service and Repair
FENDERREMOVAL AND INSTALLATION 1.

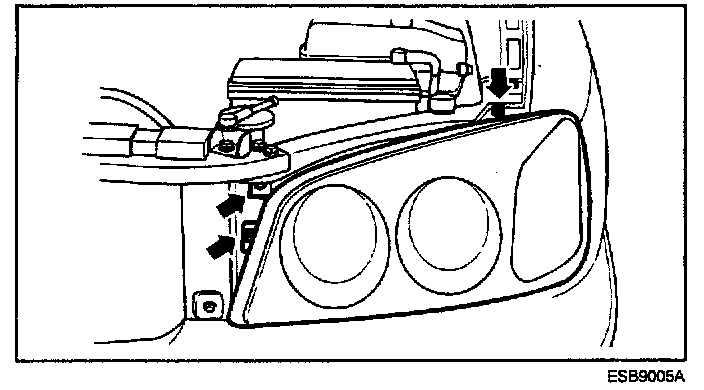

Remove the head lamp assembly.
2.

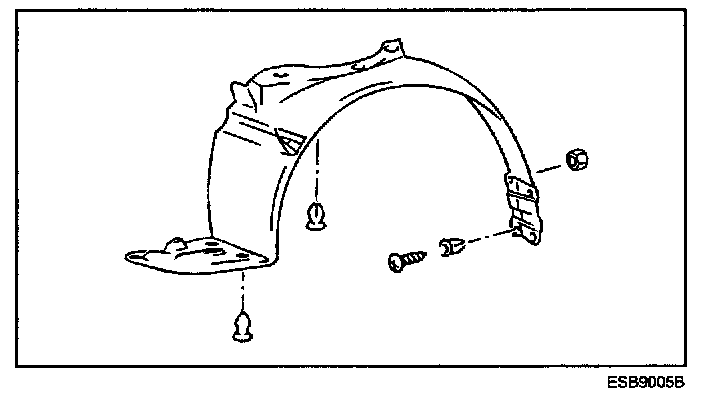

Remove the front wheel guard.
3.

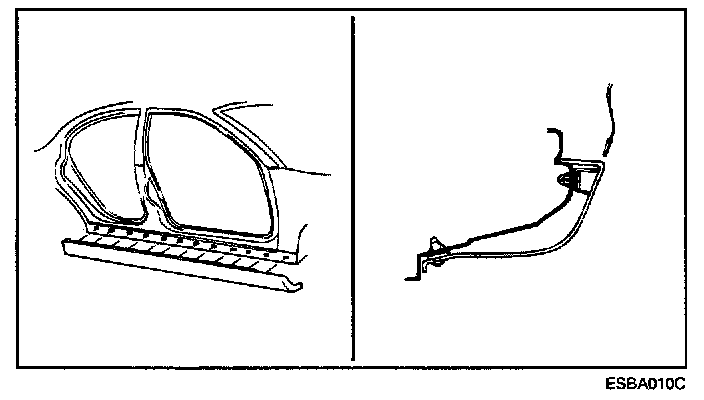

Remove the side sill molding.
4.

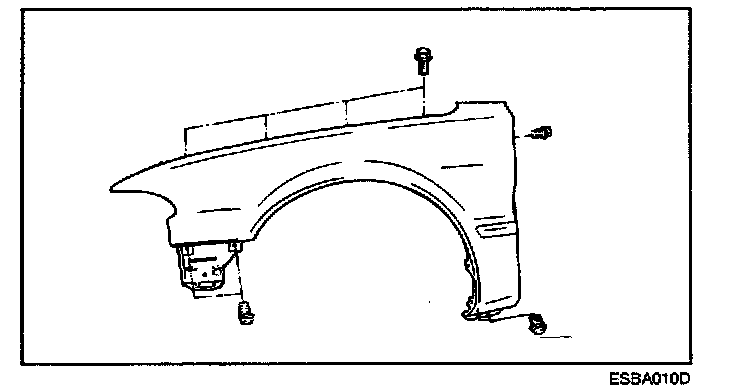

Remove the
fender mounting bolts.
CAUTION: Use care to avoid damaging the
paint.
5.
Installation is the reverse of removal.
NOTE: In order to prevent the
fender mounting bolts area from forming rust, apply tape sealer between the fender and the body panel.
