Symbols

Part 1:

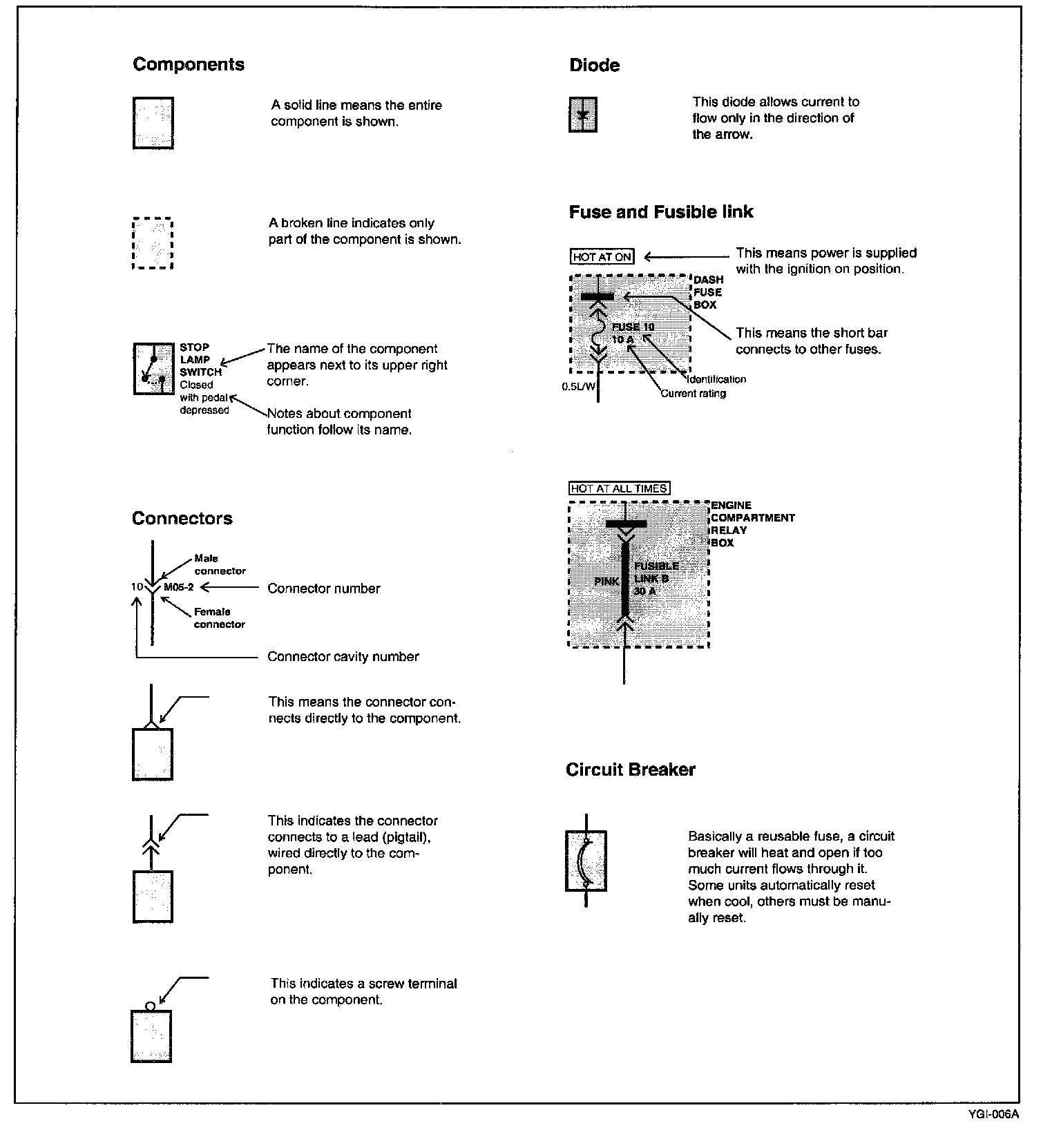

SYMBOLS
The symbols and abbreviations explained here are used throughout the information.

Part 2:




Symbols (Part 3 Of 3):

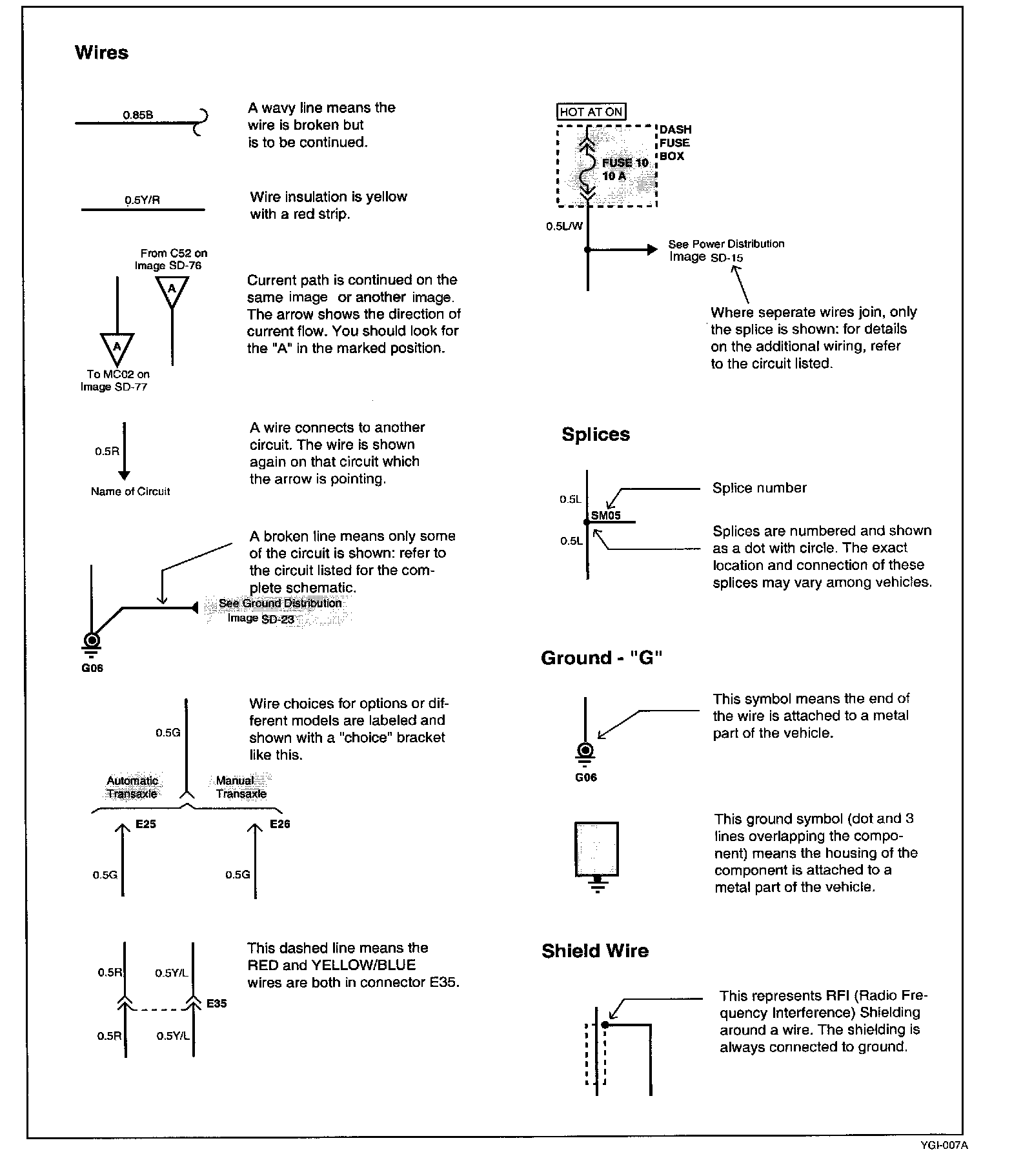

SYMBOLS IN SCHEMATIC
