Electronic Throttle Control - Manual Correction

Group: ENGINE ELECTRICAL

Number: 01-36-002

Date: APRIL, 2001

Model: 2001 XG300

Subject:

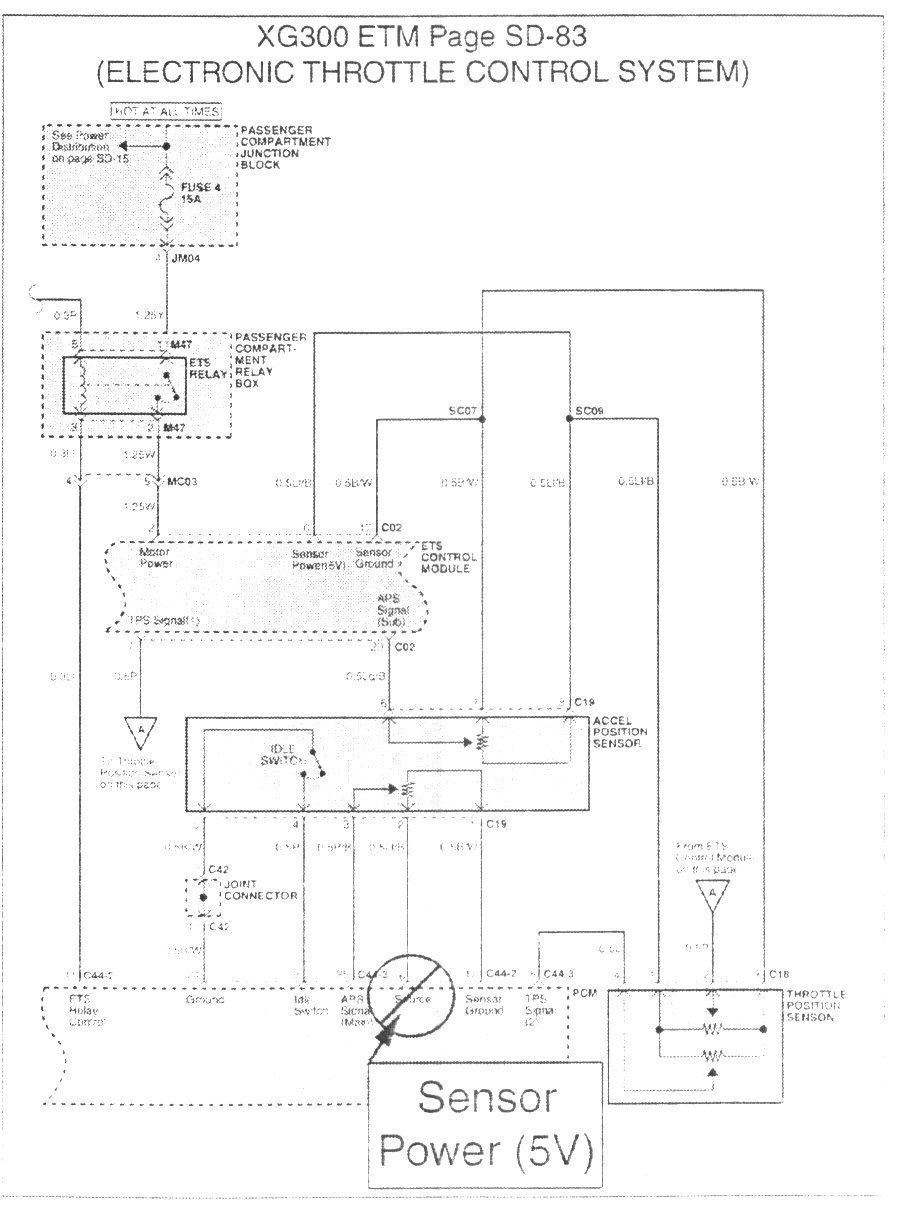

2001 XG300 ETM PAGE SD-83 CORRECTION

DESCRIPTION:

This TSB corrects the description for pin # 6 of PCM connector C44-2.

Please write this TSB number at the bottom of page SD-83 of your XG300 Electrical Troubleshooting Manual (ETM) and cross out the schematic diagram on that page for future reference.
