Engine Controls - CKP/CMP Sensor Description Correction
Group36 - ENGINE
ELECTRICAL
Number
02-36-020
Date
07-2002
Model
XG 300 2001 and XG 350 2002
Subject
XG CRANKSHAFT AND CAMSHAFT POSITION
SENSOR PART DESCRIPTION CORRECTION
DESCRIPTION:
The XG300/350 Parts Catalog and the Labels on the Sensors have incorrect descriptions for the Crankshaft and Camshaft Position Sensors.
In particular, the Camshaft Position Sensor is incorrectly described as the "Sensor -- Crankshaft Position."

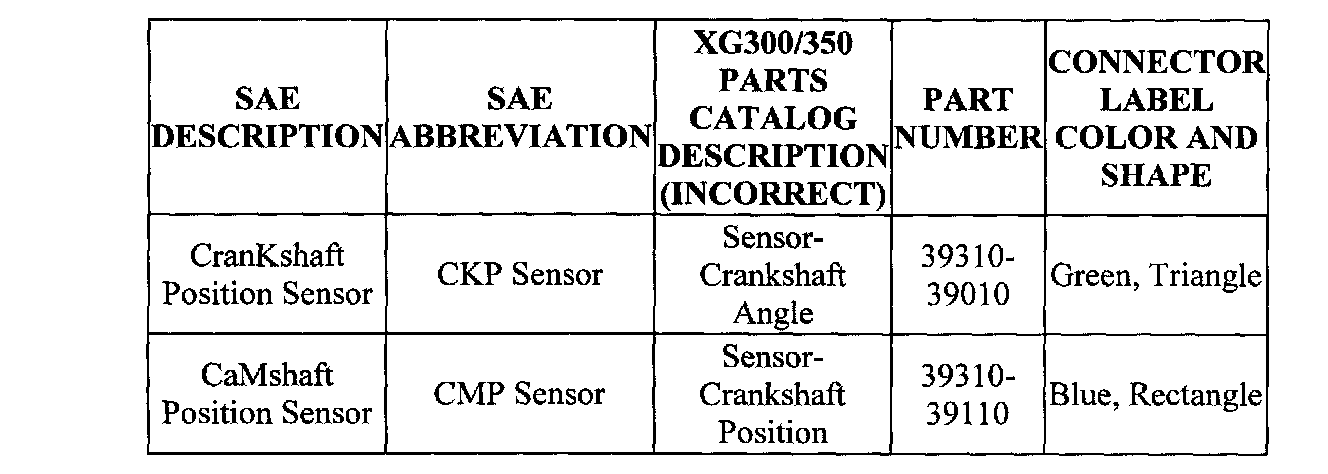

The SAE (Society of Automotive Engineers) recommended descriptions and abbreviations are shown in the table.

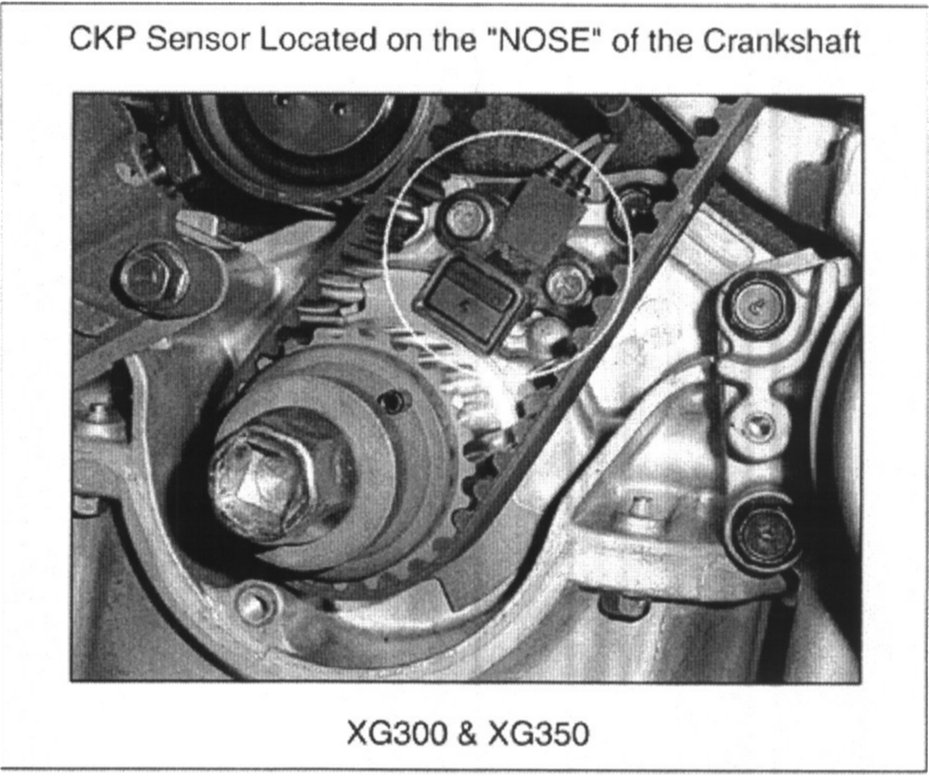

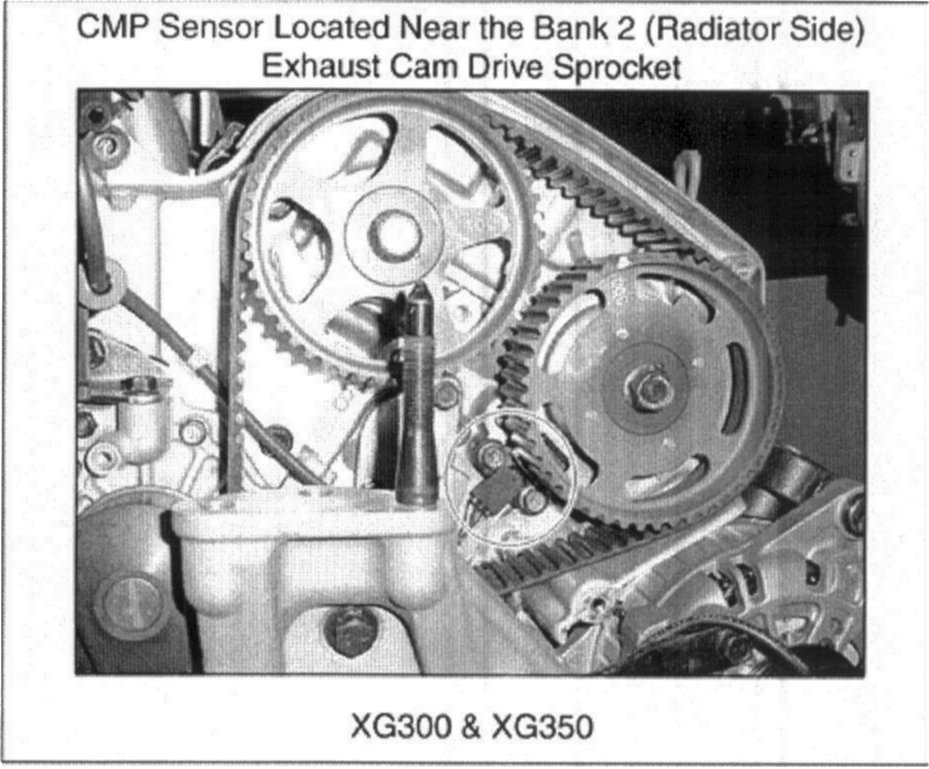

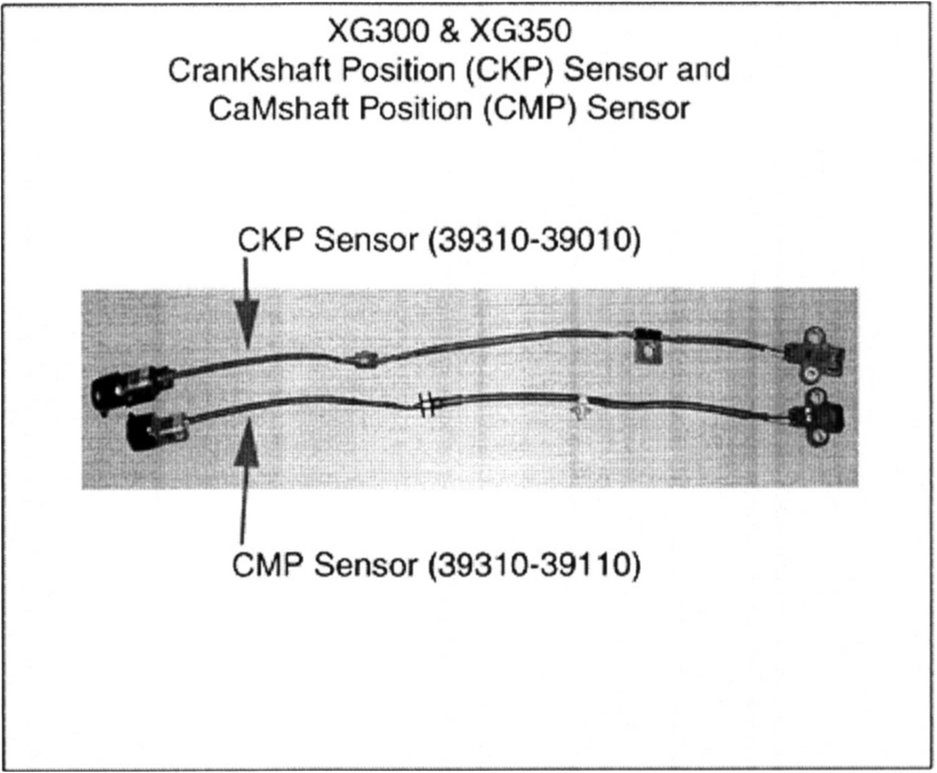

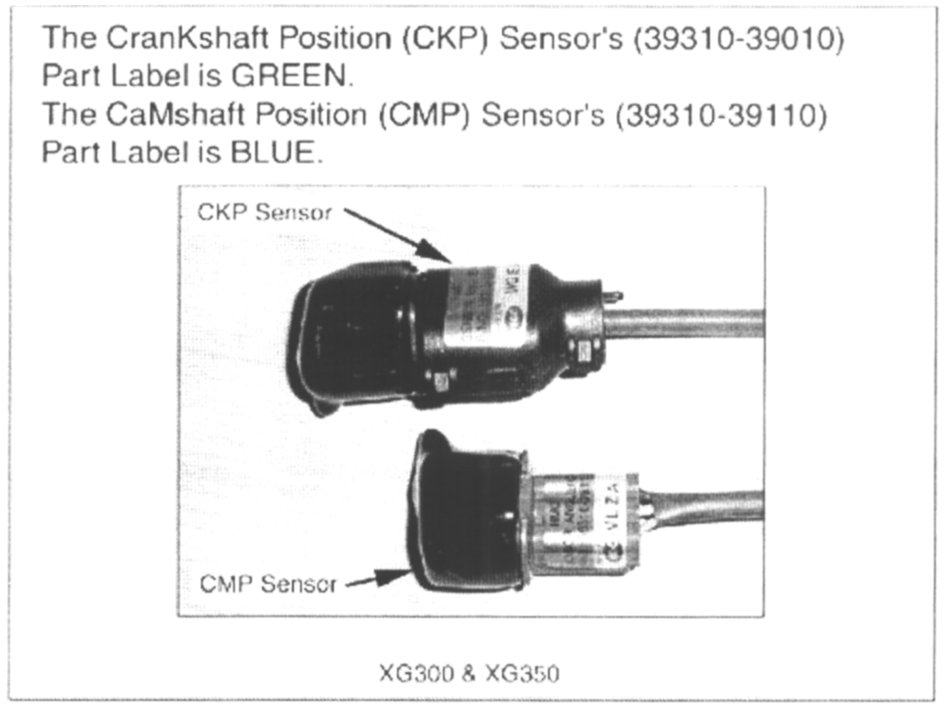

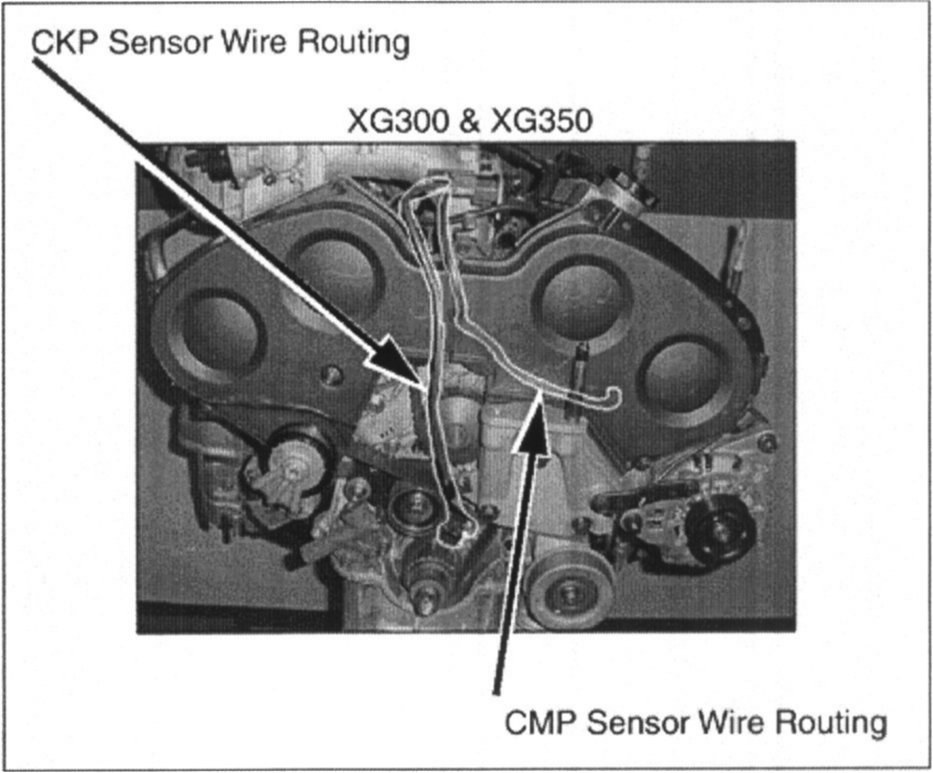

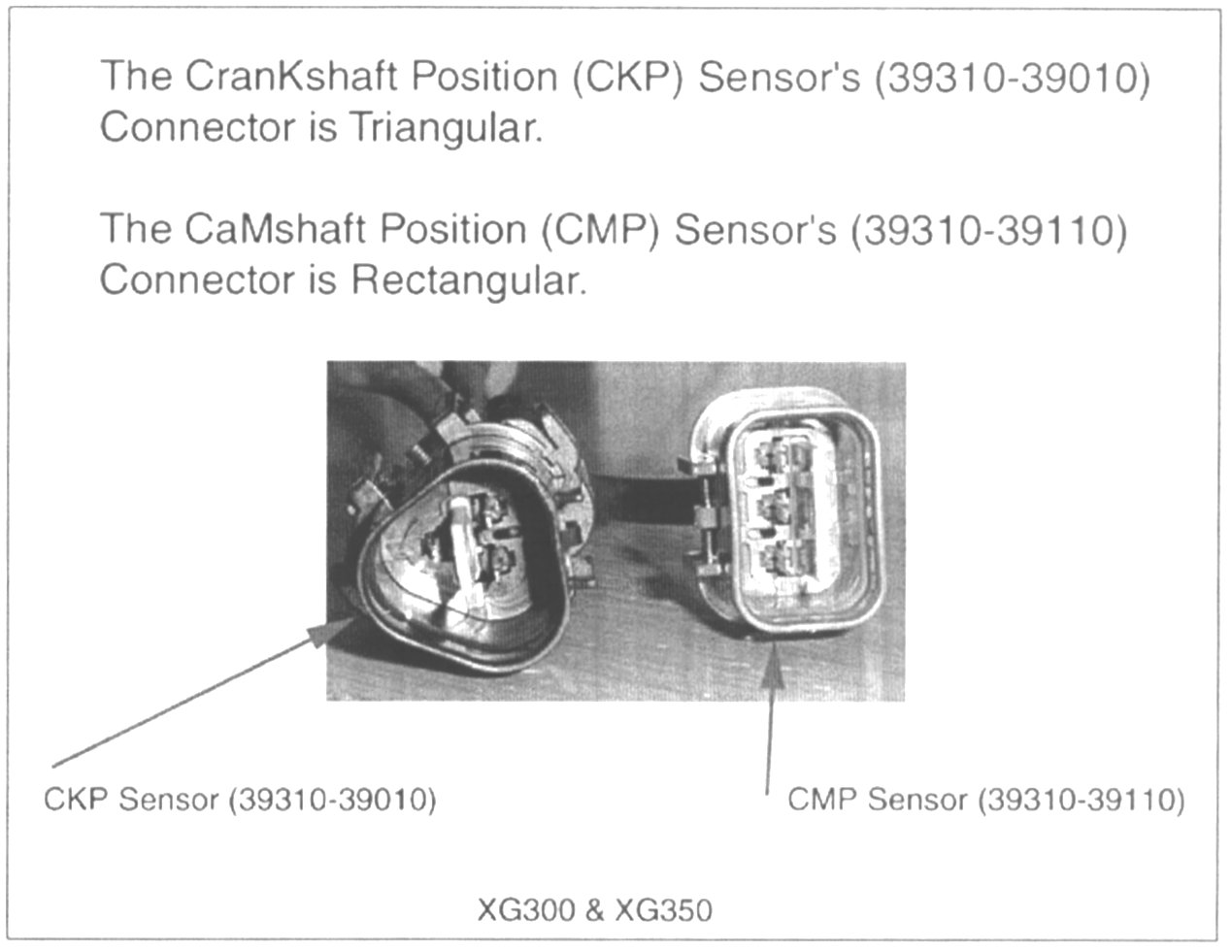

The photographs show the sensors and their locations.
Please write this TSB number at the top of section 28-390 of the XG300/350 Parts Catalog for future reference.
