Circuit Test
EXHAUST GAS RECIRCULATION (EGR) SOLENOID VALVEThe EGR solenoid valve is a duty control type solenoid valve, which controls
EGR valve operating negative pressure to the
throttle body A port.

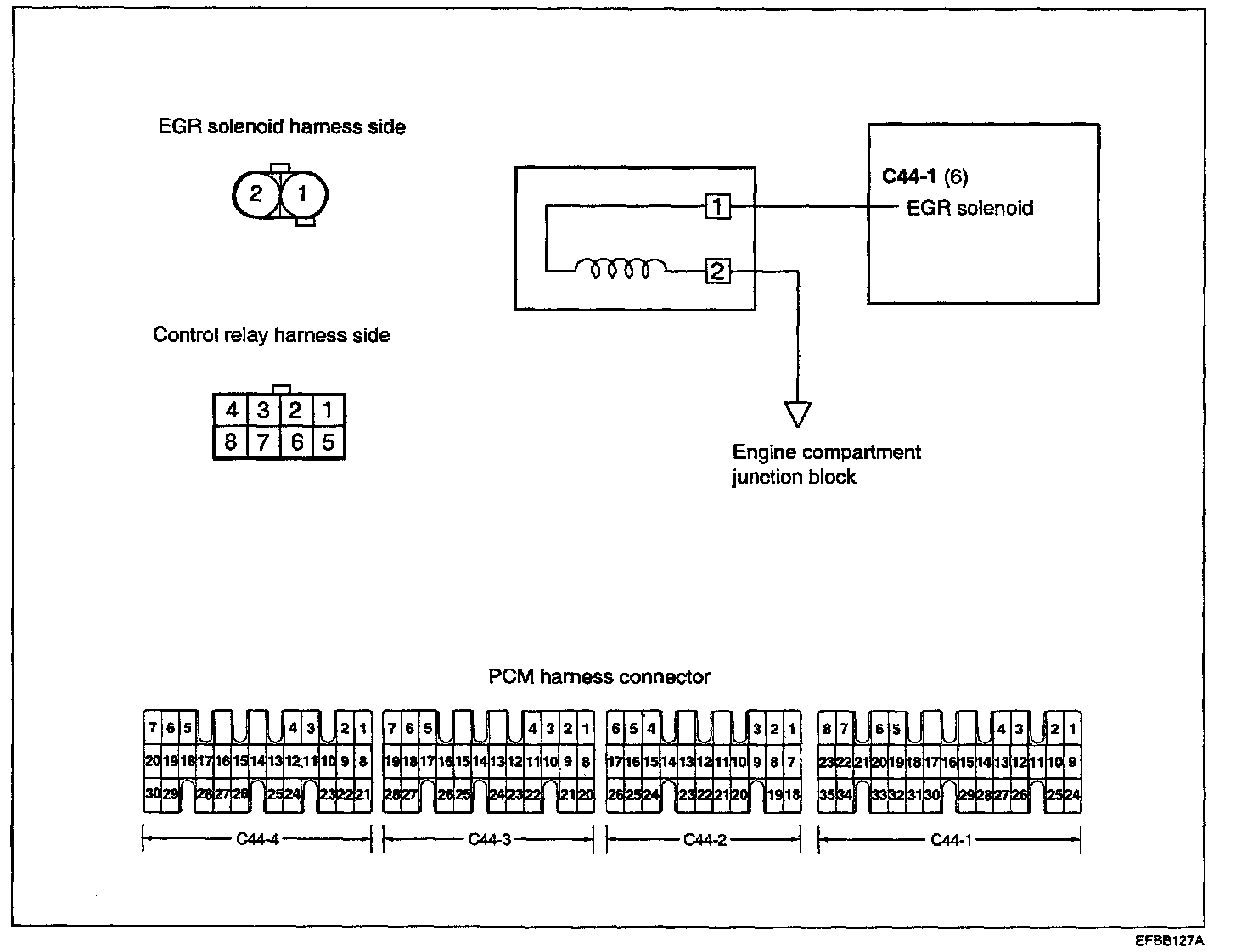

Circuit Diagram:

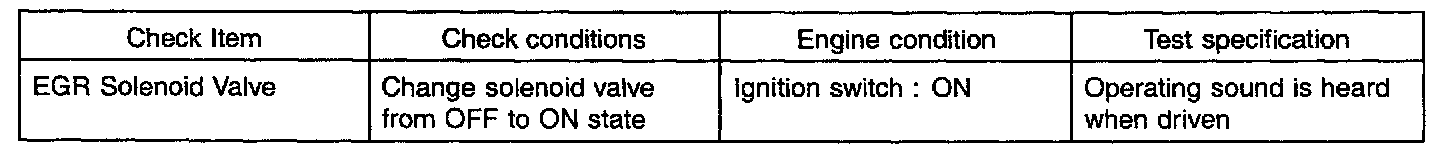

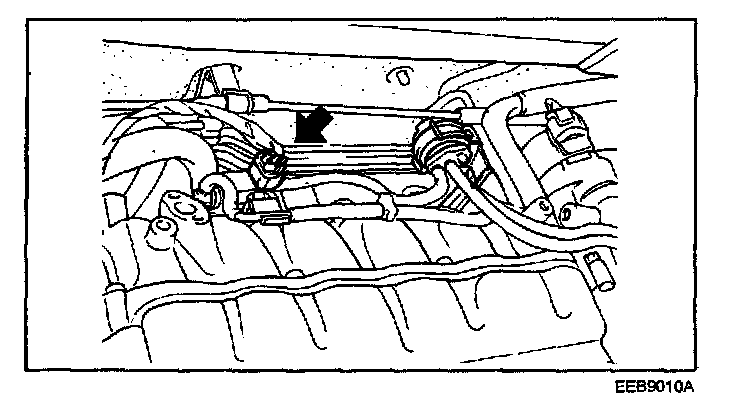

EGR Valve Checking:

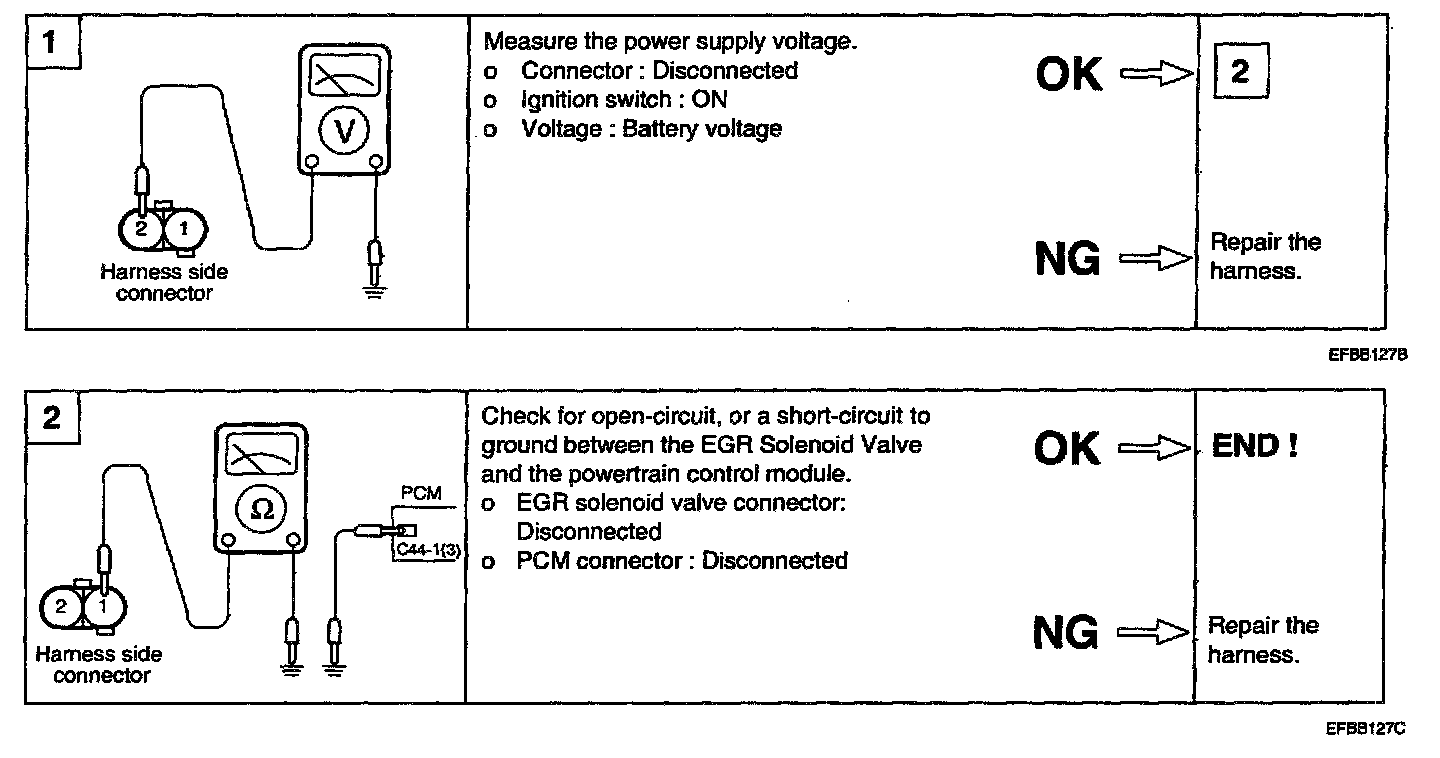

Harness Inspection Procedures:
