A/T Torque Data

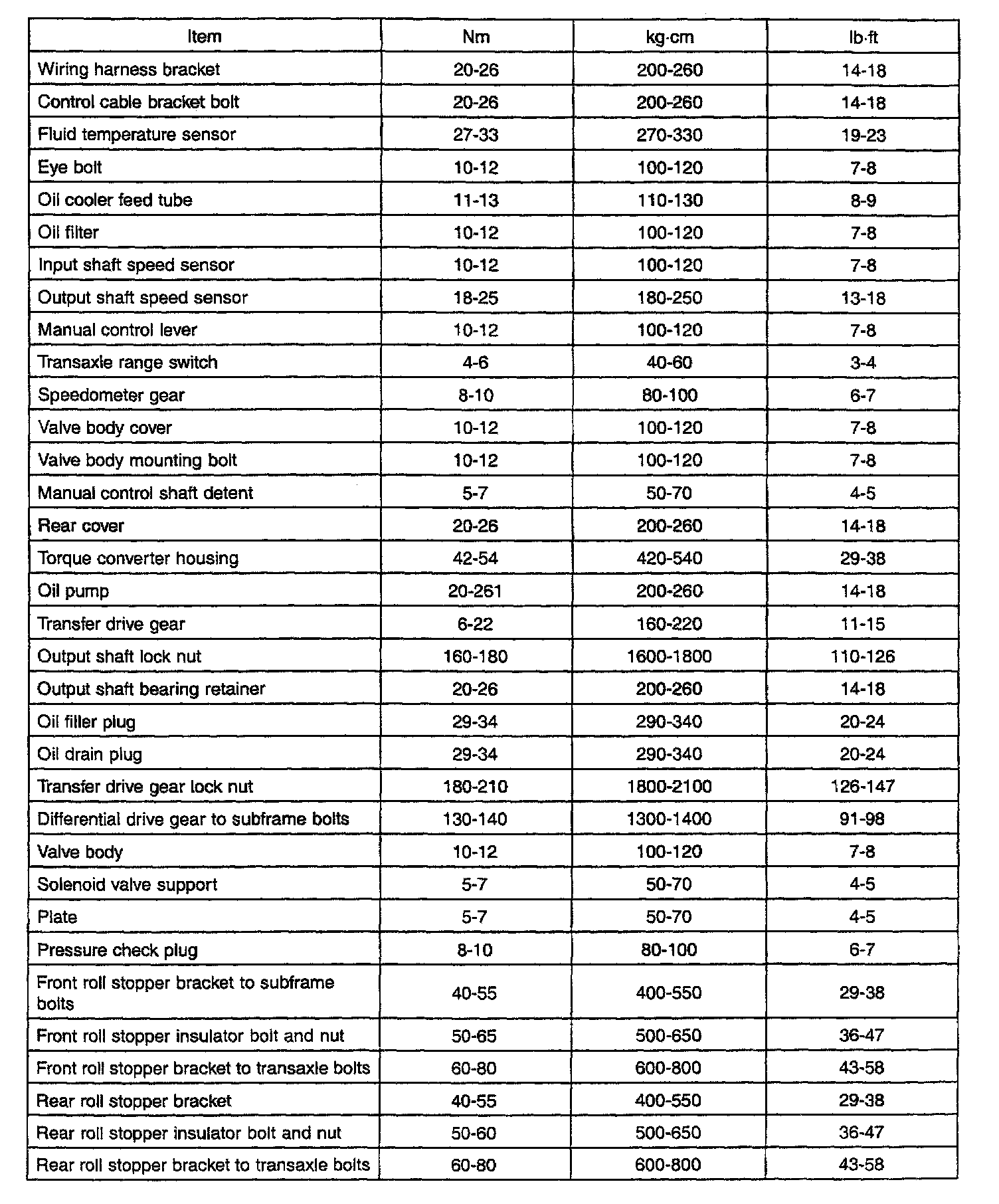

F5A51 5-spd A/T, Transaxle Torque:
F5A51 5-spd A/T, Transfer & Transaxle Torque:
F4A42 4-spd/F5A51 5-spd A/T, Transmission Torque:

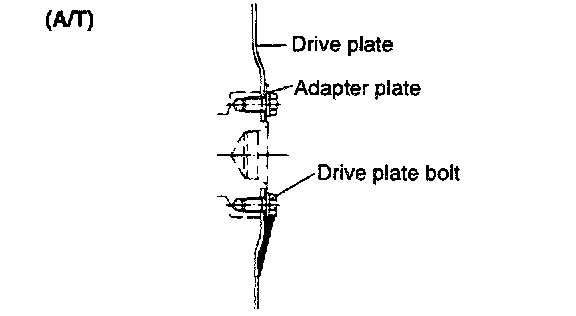

Drive Plate And Adapter Plate Bolt Torque
73 - 77 Nm (730 - 770 kg.cm, 53 - 56 ft. lbs.)
