Power Window Switch: Testing and Inspection

Check that components operate according to the following timing chart.

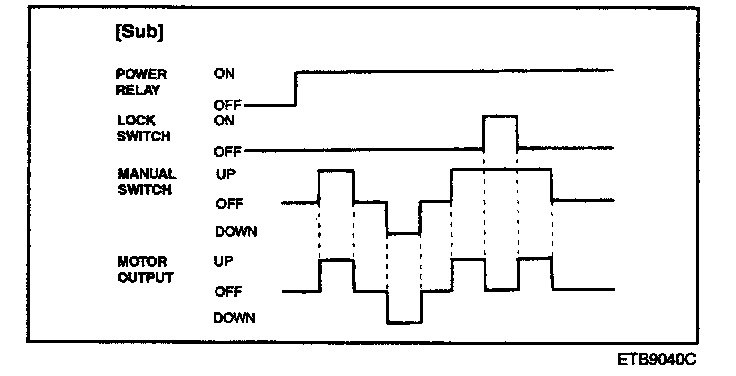

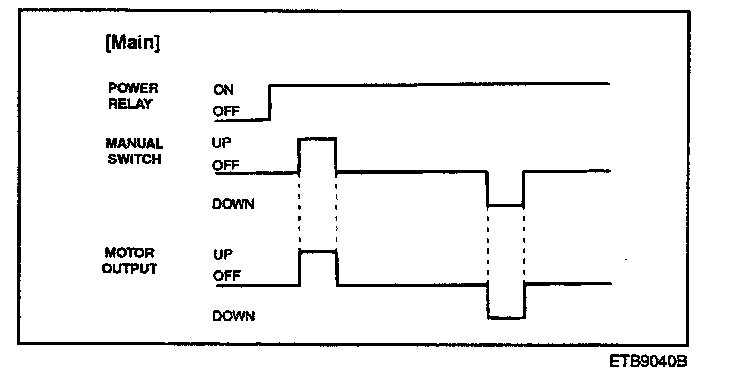

1. Manual power window function.

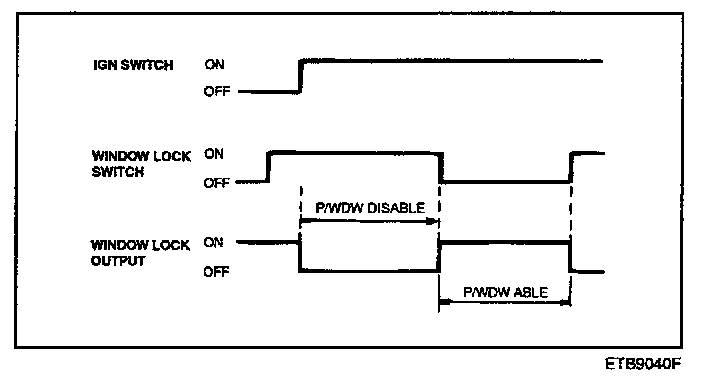

When pressing the window lock switch, all power window switches are disabled except for driver side.

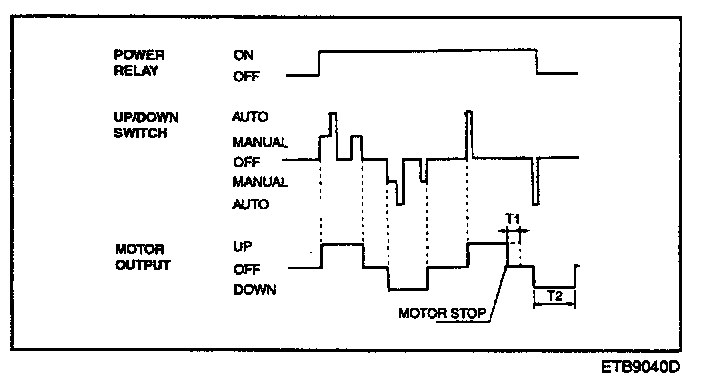

2. Auto power window function
T1 : 0.7 ± 0.2 sec.
T2 : 10 ± 2 sec.

When the battery is connected or changed, power window is initialized. Initialization is when the power window is fully closed.




3. Power window lock function.

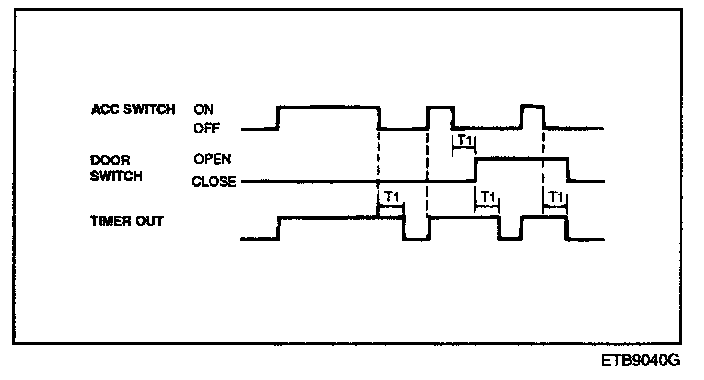

4. Power window timer
T1 : 30 ± 3 sec.

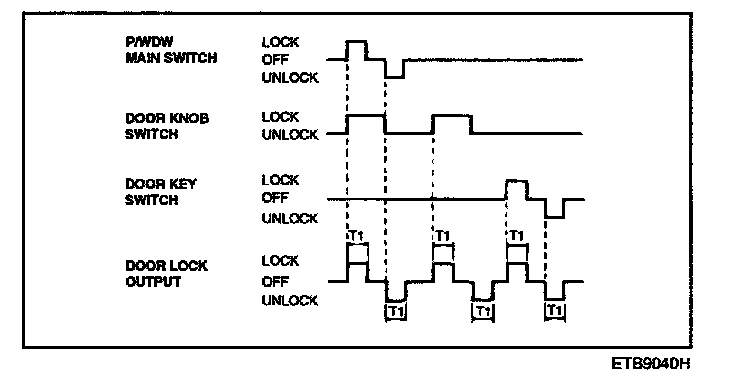

5. Central door lock function.
T1 : 0.3 ± 0.1 sec.




6. Power outside mirror control.
