Home >> Hyundai >> 2002 >> Sonata GLS V6-2.7L >> Repair and Diagnosis >> Cruise Control >> Relays and Modules - Cruise Control >> Cruise Control Module >> Locations >> Connector Locations

Connector Locations

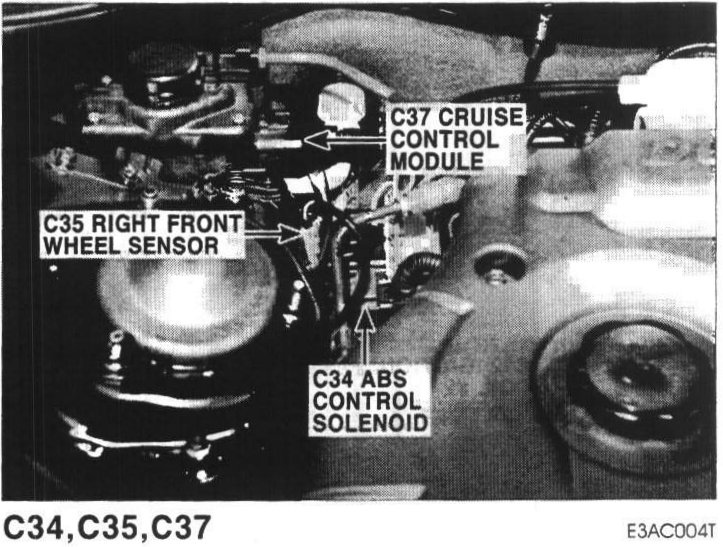

C34 ABS Control Module, C35 Right Front Wheel Sensor, C37 Cruise Control Module:

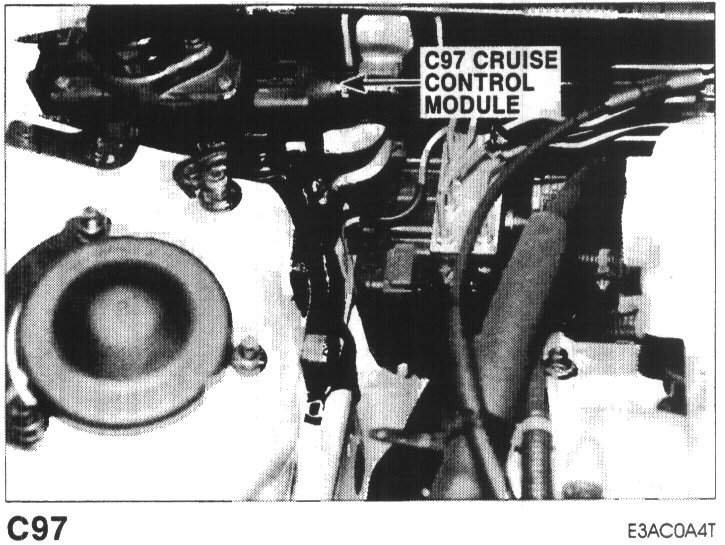

C97 Cruise Control Module:
