Engine Controls - Oxygen Sensor Locations
SOURCE: Hyundai Tech Net Times Volume 13 Issue 3 2003TITLE: Fuel - Oxygen Sensor
APPLIES TO: 1999-2003 MY V6
SERVICE TIP:
The illustration explains the following terms:
^ Engine BANK
^ Up = Sensor 1 = Front = Closer to the exhaust manifold = Before the Catalyst
^ Down = Sensor 2 = Rear = After the Catalyst
^ Bank 1 is closer to the dash panel = RH (right hand)
^ Bank 2 is closer to the Radiator = LH (left hand)
The following O2 Sensor EXAMPLES show how to interpret the terminology:
^ B1/S1 = Bank 1/Sensor 1 = Dash Panel Side, BEFORE the catalyst
^ B2/S2 = Bank 2/Sensor 2 = Radiator Side, AFTER the catalyst
2.7L V6 ENGINE OXYGEN SENSOR CHANGE (TBS...)
MODEL: 2003 SANTA FE V6, 2003 SONATA V6, 2003/4 TIBURON V6
This article supersedes TSB# 02-36-333 to correct part number descriptions.
DESCRIPTION:
The oxygen sensors on the 2.7L V6 (Delta) engine have been changed.
NOTE: With this change, Oxygen Sensors on ALL Hyundai engines will be of the same basic design (Zirconium Type), except for SULEV.
Also note that this change to the O2 Sensors results in changes to the related wiring harness and ECM. Refer to the Parts Catalog for related part numbers.
Old (Titanium) Versus New (Zirconium) O2 Sensors for the 2.7L V6 (Delta) Engine Main Physical Difference

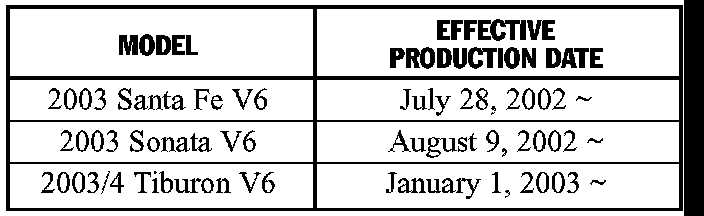

EFFECTIVE VEHICLE INFORMATION:
PARTS INFORMATION:
2003/4 TIBURON V6
NOTE: New B2/S1 O2 Sensor part number is unique to the Tiburon V6; otherwise, all other O2 Sensor part numbers are the same as the 2003 Santa Fe V6 and 2003 Sonata V6.

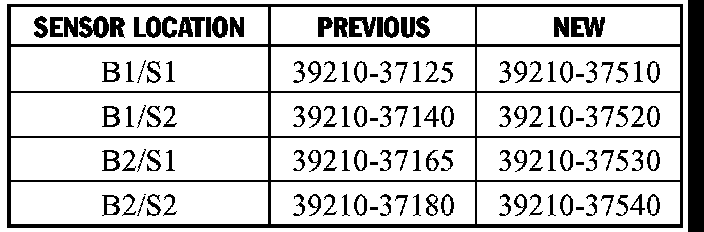

PARTS INFORMATION:
2003 SANTA FE and 2003 SONATA V6
B1/S1 = Bank 1, Sensor 1 (Front O2)
B2/S1 = Bank 2, Sensor 1 (Front O2)
B1/S2 = Bank 1, Sensor 2 (Rear O2)
B2/S2 = Bank 2, Sensor 2 (Rear O2)
Bank 1 = Dash Panel Side
Bank 2 = Radiator Side
INTERCHANGEABILITY:
The Previous and New O2 sensors are NOT Interchangeable.
