Front Bumper: Service and Repair

FRONT BUMPER

REMOVAL AND INSTALLATION

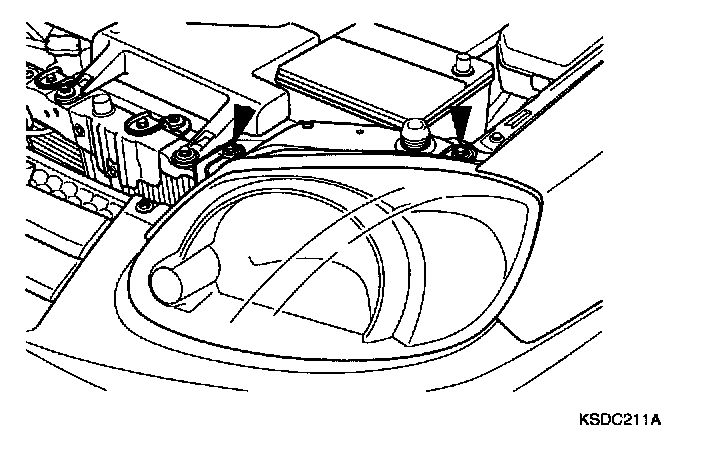

1. Loosen the head lamps, disconnect all connectors, and remove the head lamp.

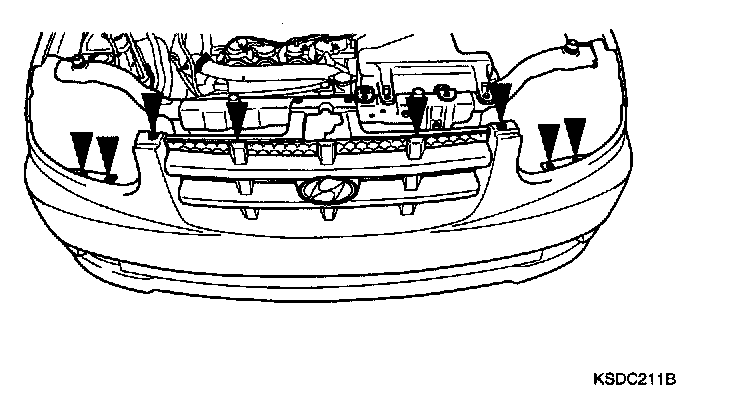

2. Remove the 6 mounting clips on the upper bumper and 2 clips in the inner bumper.

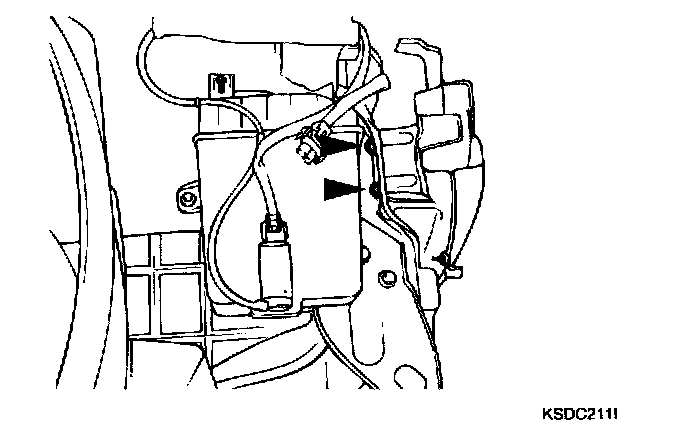

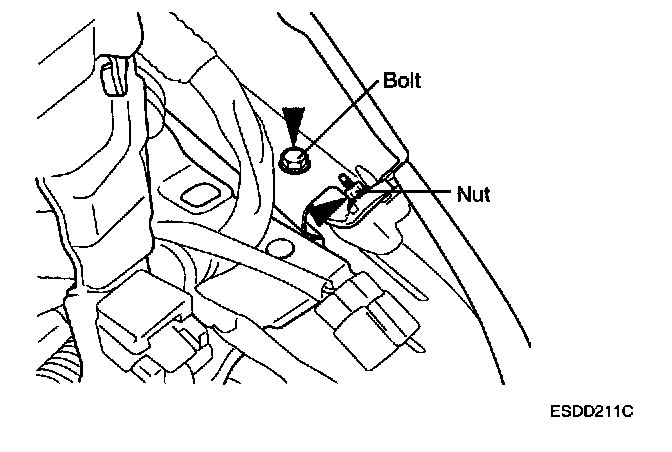

3. Remove the mounting bolt and nut in the bumper side.

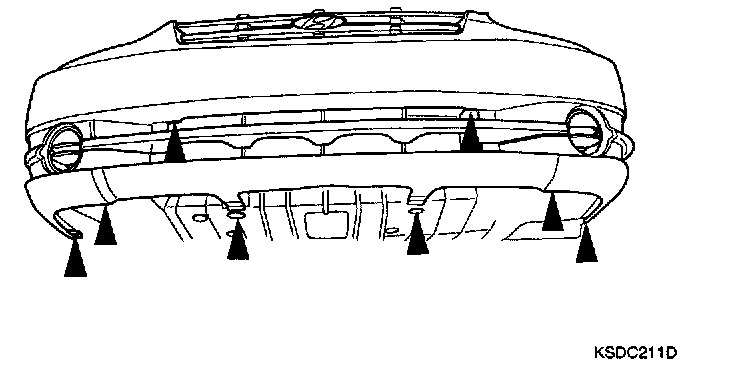

4. Raise the vehicle, remove the clip and screw from the lower member, and remove the bumper cover.

5. Remove the bumper stay.

6. Installation is the reverse of removal.

REAR BUMPER

REMOVAL AND INSTALLATION

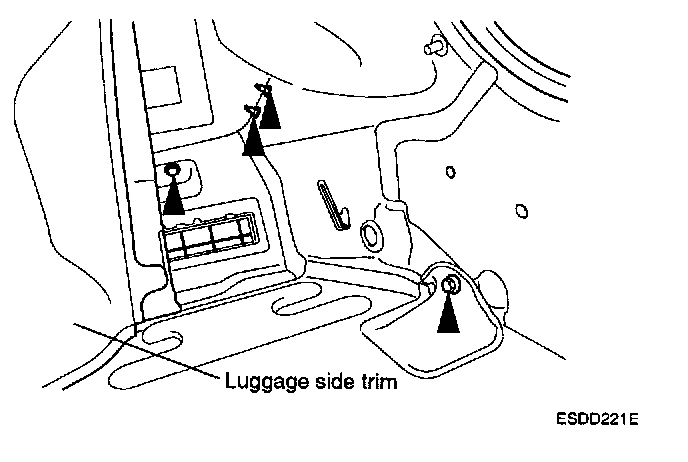

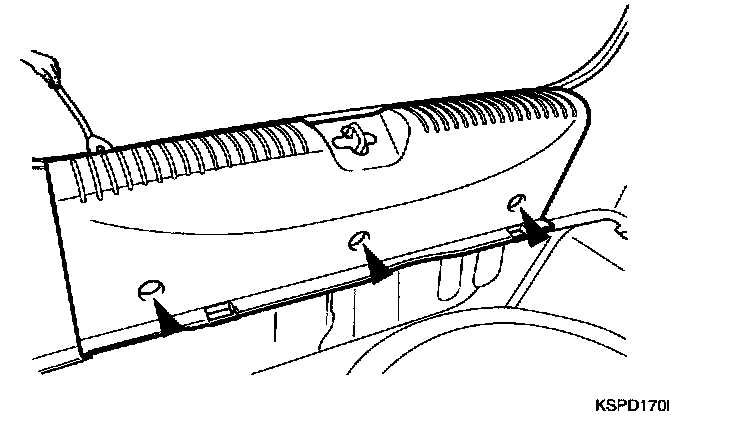

1. Remove the transverse trim and luggage rear trim.

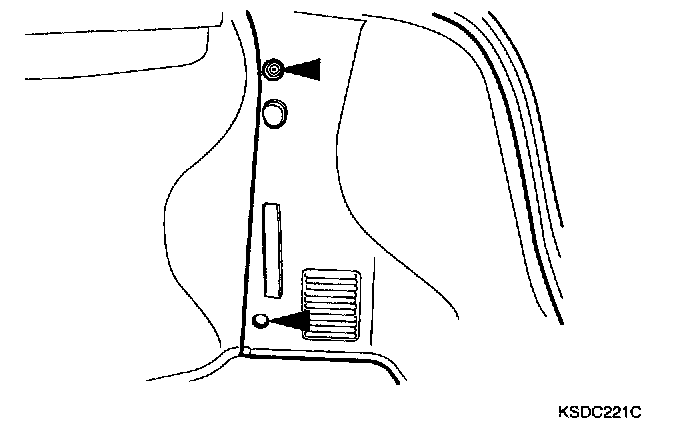

2. Loosen the 2 mounting bolts and 2 nuts from the luggage rear trim inner rear bumper cover.

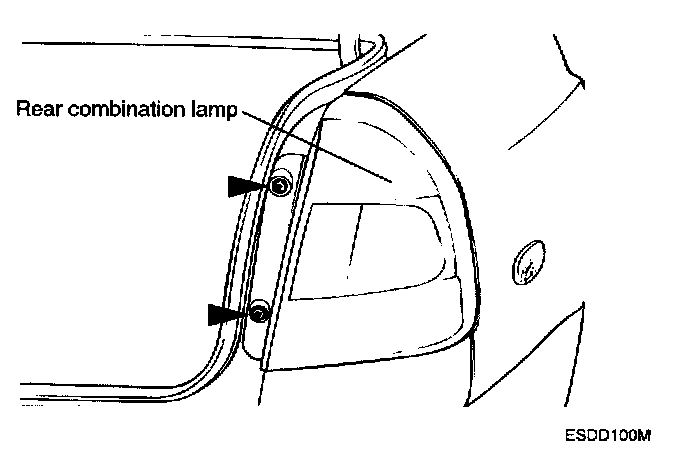

3. Remove the rear combination lamp.

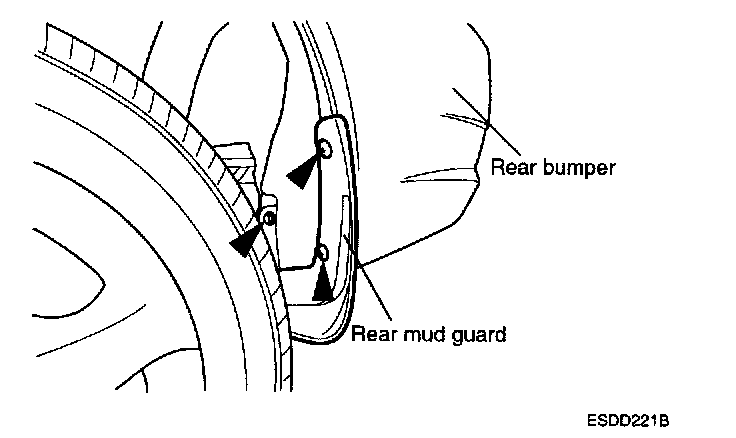

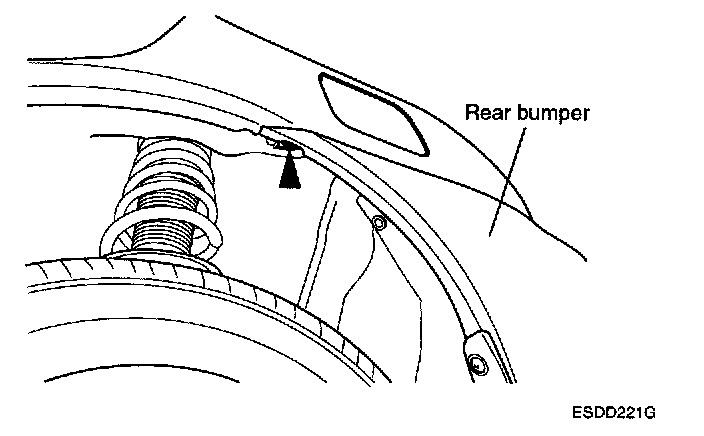

4. Loosen the 3 mounting screws on the mud guard, remove the mud guard, and loosen the rear wheel house inner mounting screw.

5. Loosen the 6 mounting screw on the upper rear bumper cover.

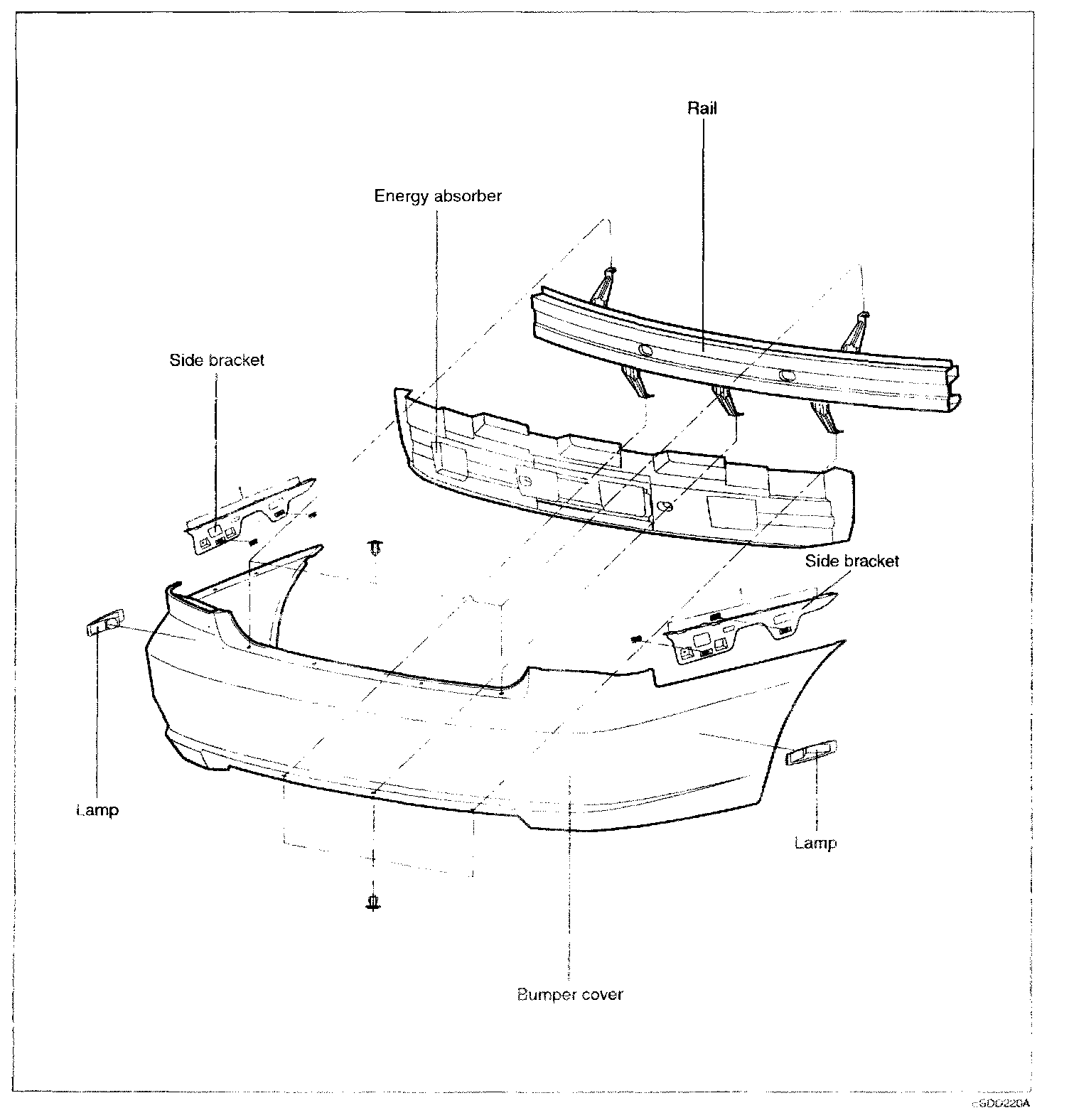

6. After loosening the rear bumper cover inner rail mounting bolts (Left : 2, Right 2), remove the rear bumper assembly.

7. After loosening 5 mounting screw on the rear bumper cover, disconnect the cover from the rail.
8. Installation is the reverse of removal.
