Front Door Panel: Service and Repair

Front Door:

REMOVAL AND INSTALLATION

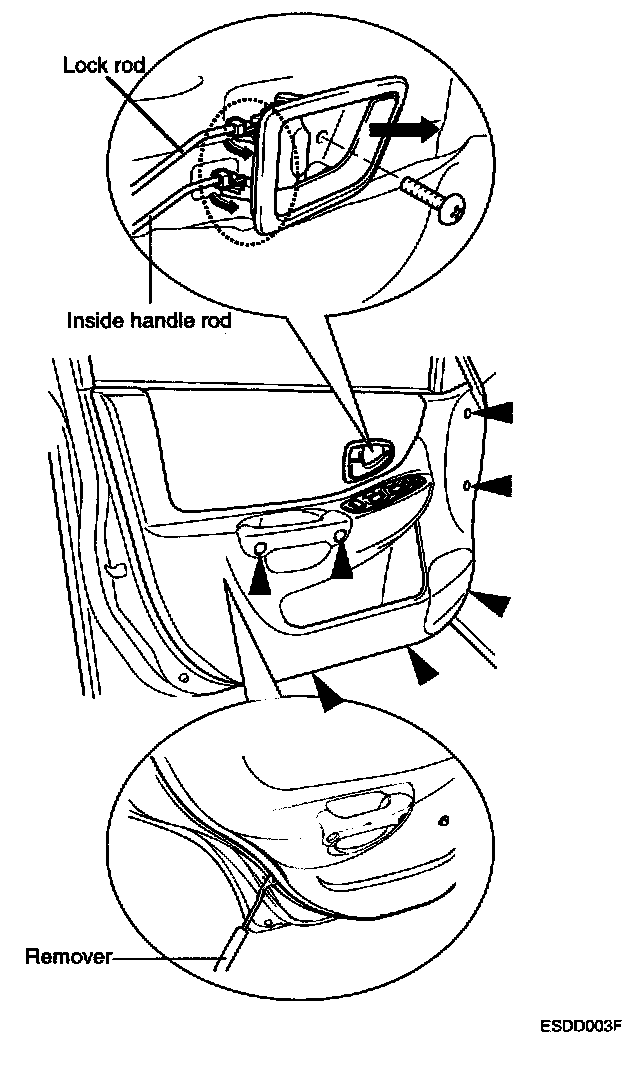

1. Remove the in side handle mounting screw.




2. Loosen the door trim mounting screws(7EA), remove the trim using a trim remover, and then disconnect the power window switch connector.

NOTE: When using a trim remover, wrap it with a piece of cloth so it will not damage the painted surface.

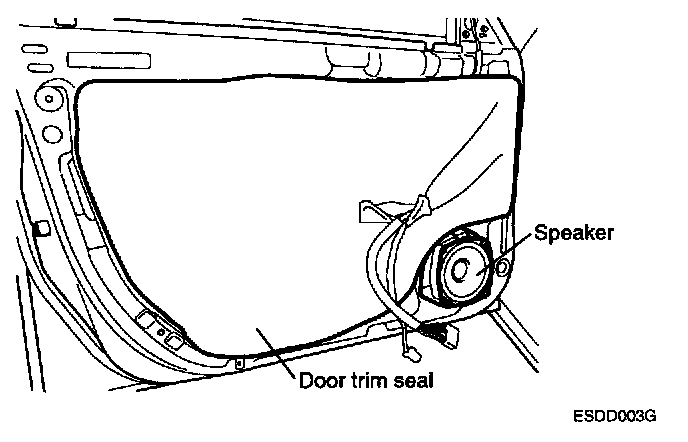

3. Remove the door trim seal, speaker, and connector.
4. Installation is the reverse of removal.
