Power Mirror Motor: Testing and Inspection

INSPECTION

Mirror Heater Inspection:

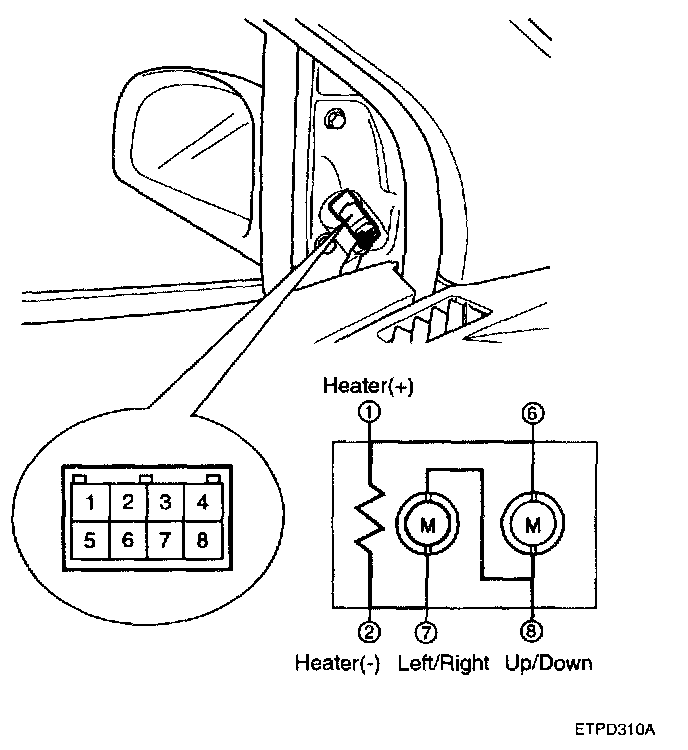

1. Disconnect the power door mirror connector from the harness.

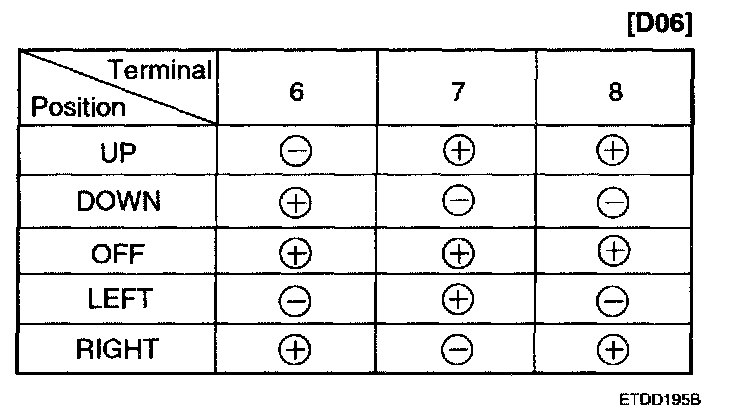

2. Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
