Fluid - M/T: Service and Repair

REPLACEMENT OF TRANSAXLE GEAR OIL
USE HP GEAR OIL SAE 75W/90 (API-GL-4)

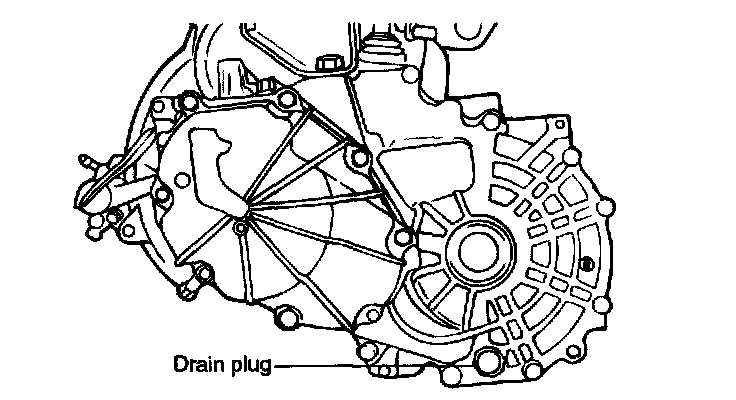

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.





2. Replace the gasket with a new one and install the drain plug.
Tightening torque:
Drain plug: 30 - 35 Nm (300 - 350 kgf-cm, 22 - 25 ft. lbs.)





3. Add new oil the through the filler plug, filling to the same level as the opening plug.
Transaxle oil total capacity: 2.15 Liters (2.27 U.S. quarts, 1.89 Imp.quarts)
Tightening torque:
Filler plug: 30 - 35 Nm (300 - 350 kgf-cm, 22 - 25 ft. lbs.)
