Radiator Cap

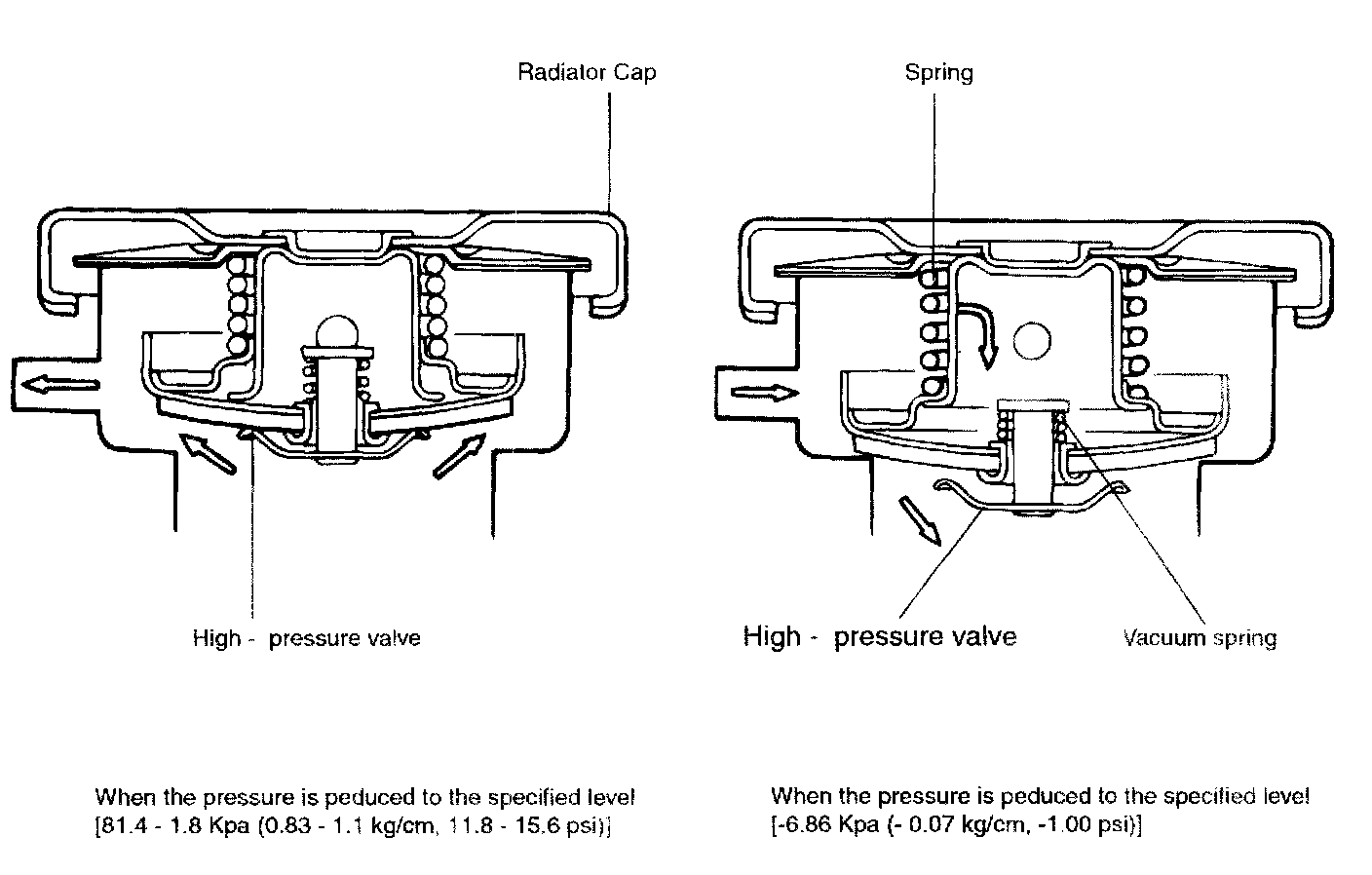

RADIATOR CAP:






Main valve opening pressure.....81.4 - 108 kPa (11.8 - 15.6 psi.,0.83 - 1. 1 kg/cM2

Vacuum valve opening pressure..... -6.86 kPa (-1.00 psi, -0.07 kg/cM2 or less
