Starter Solenoid: Testing and Inspection

STARTER SOLENOID TEST




1. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). The coil is OK if there is continuity.

2. Check the pull-in coil for continuity between the S and M terminals. The coil is OK if there is continuity.

FREE RUNNING TEST
1. Place the starter motor in a vise equipped with soft jaws and connect a fully-charged 12-volt battery to starter motor as follows

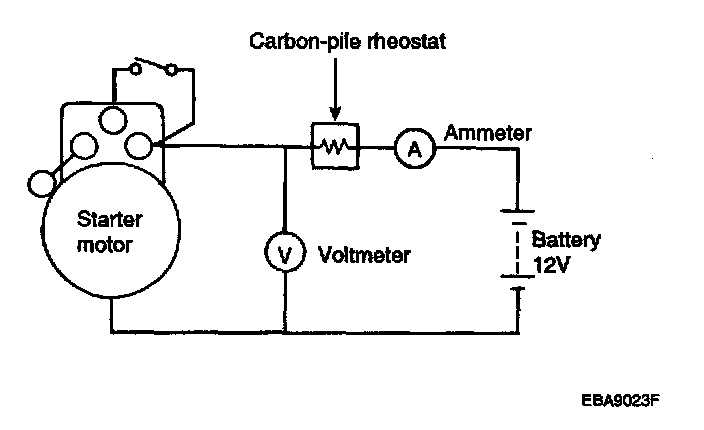

2. Connect a test ammeter (100-ampere scale) and carbon pile rheostat as shown is the illustration.
3. Connect a voltmeter (15-volt scale) across starter motor.
4. Rotate carbon pile to the off position.
5. Connect the battery cable from battery's negative post to the starter motor body.
6. Adjust until battery voltage shown on the voltmeter reads 11 volts.




7. Confirm that the maximum amperage is within the specifications and that the starter motor turns smoothly and freely:

Current: Max. 90 Amps
Speed: Min. 2,800 rpm
