Front Wiper Motor

This article has been updated by technical service bulletin (TSB) 04-90-011 dated August 2004.

REMOVAL




1. Remove the windshield wiper arm and blade after removing a nut.

Tightening torque: 28-32 Nm (280-320 kg-cm, 21-24 lb-ft)

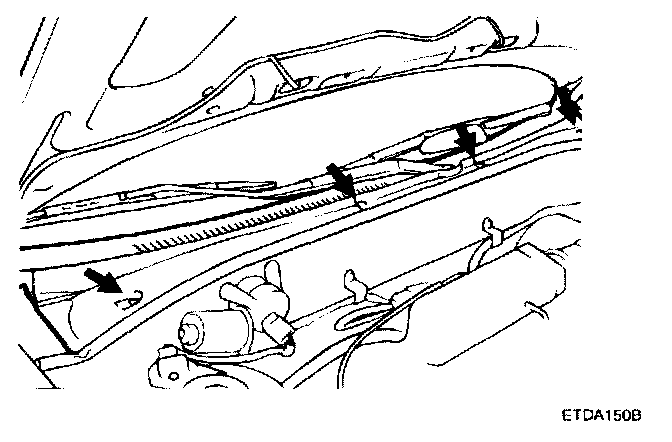

2. Remove the weatherstrip and cowl top cover after removing 4 clips.

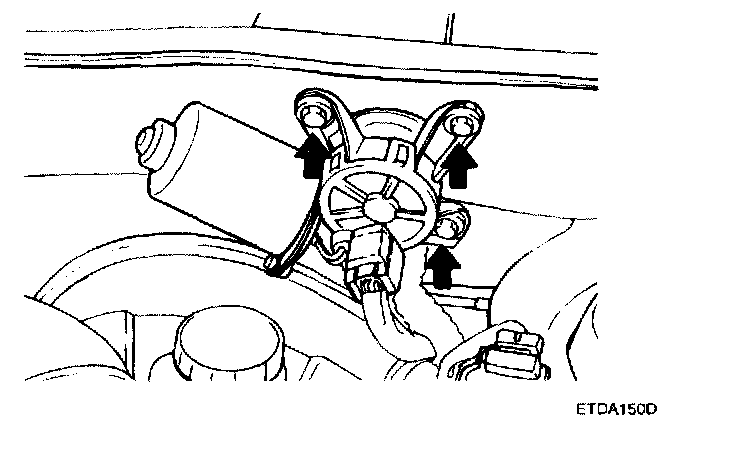

3. Remove the windshield wiper motor after removing 3 bolts.

Tightening torque: 7-11 Nm (70 - 110 kg-cm, 5.1 - 8.0 lb-ft)

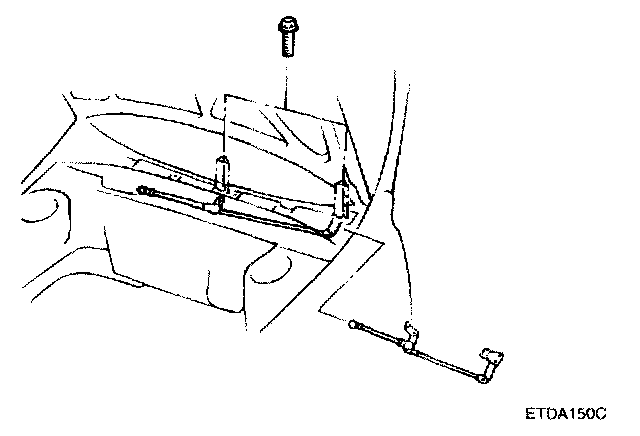

4. Remove the wiper link mounting bolts and take out the wiper link assembly from the cowl top panel.
5. Installation is the reverse of removal.

INSTALLATION




1. Install the wiper arm and blade to the specified position.




2. Set the washer nozzle on the specified spray position.
