Front Bumper: Service and Repair

FRONT BUMPER

Front Bumper:






REMOVAL AND INSTALLATION

1. Disconnect the leads to the turn signals and headlamps.

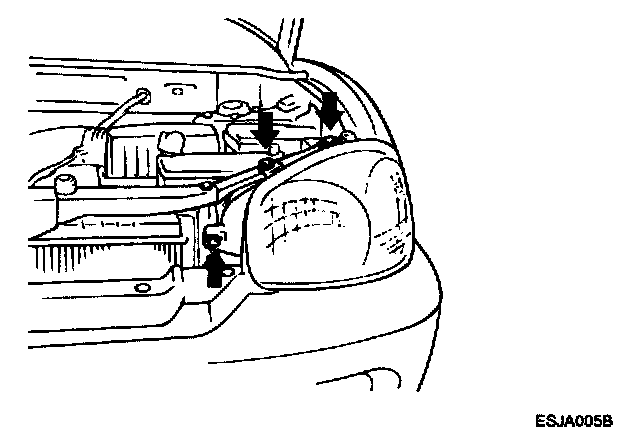

2. Remove the turn signal lamps and head lamps.

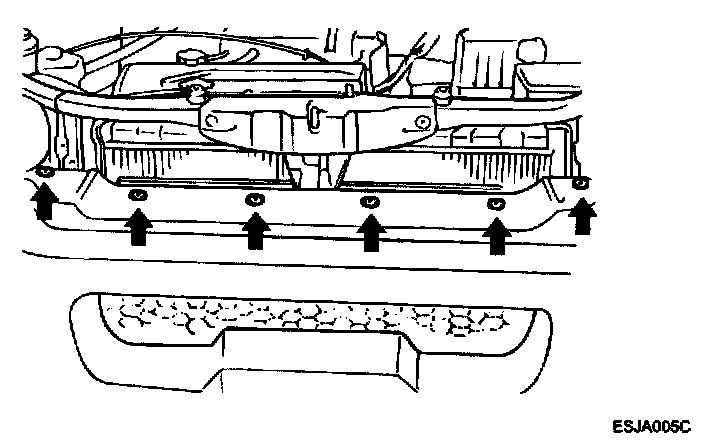

3. Remove the screws holding the front bumper cover.

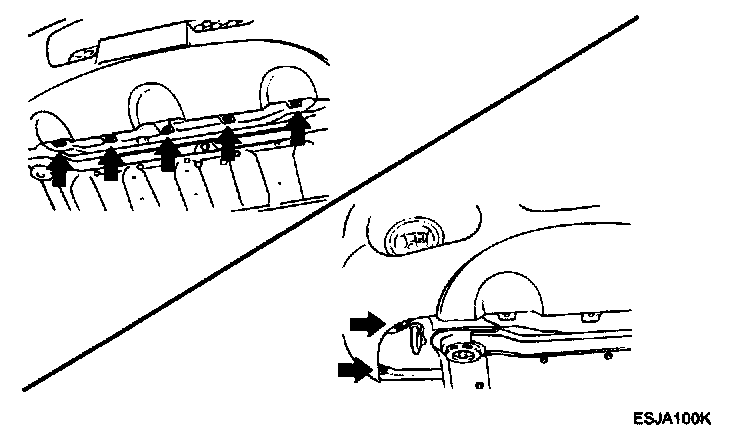

4. Raising the vehicle, remove the bolts holding the front bumper cover and the front wheel guard.






5. Remove the front bumper cover and the bumper energy absorber.

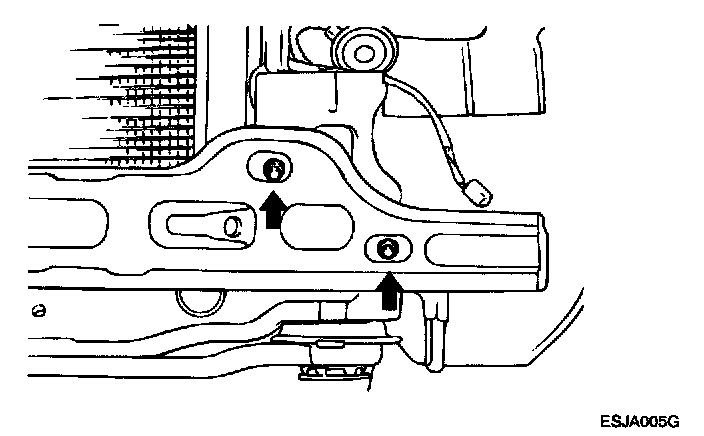

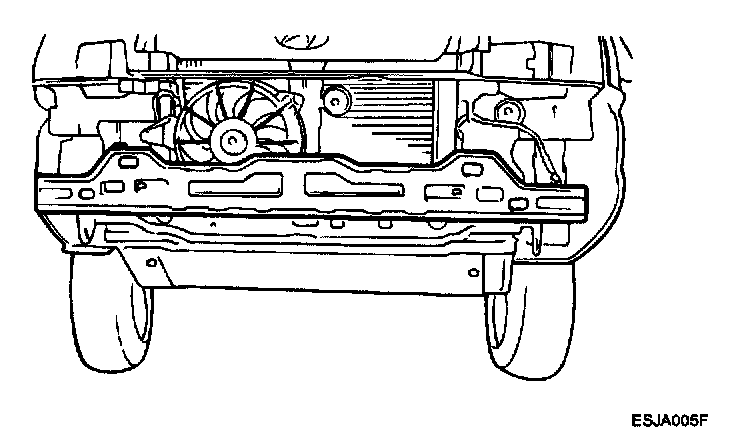

6. Remove the front bumper rail.






7. Installation is the reverse of removal.
