Power Seat Motor: Testing and Inspection

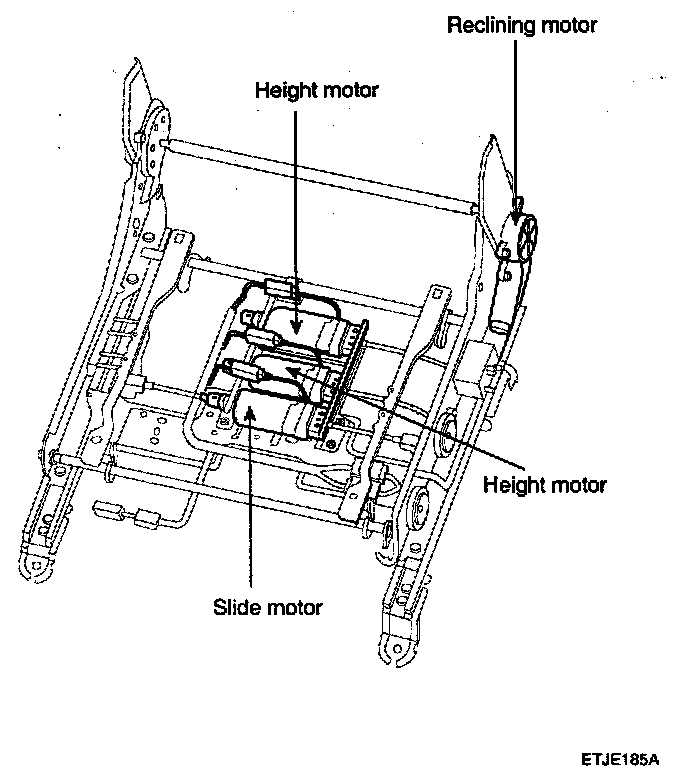

POWER SEAT MOTOR

INSPECTION

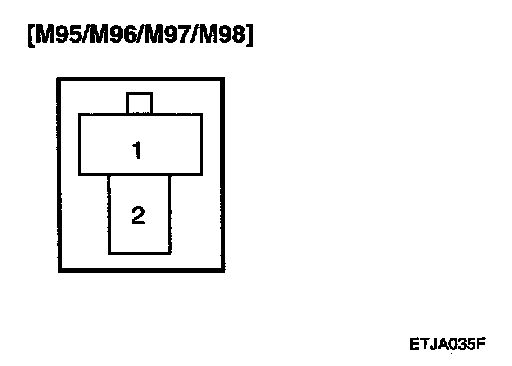

1. Disconnect the wire connectors from each motor.

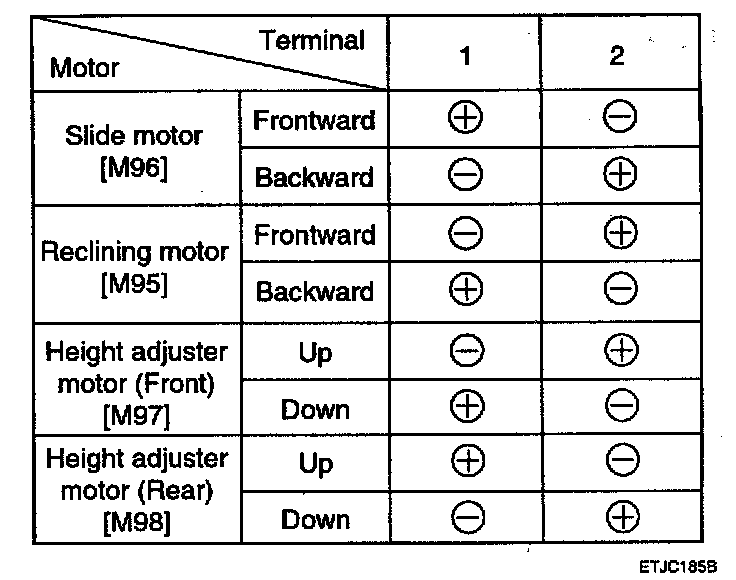

2. With the battery connected directly to the motor terminals, check if the motors run smoothly.




3. Reverse the connections and check that the motor turns in reverse.
4. If there is an abnormality, replace the motors.
