Rear Seat
REAR SEATREMOVAL AND INSTALLATION 1.

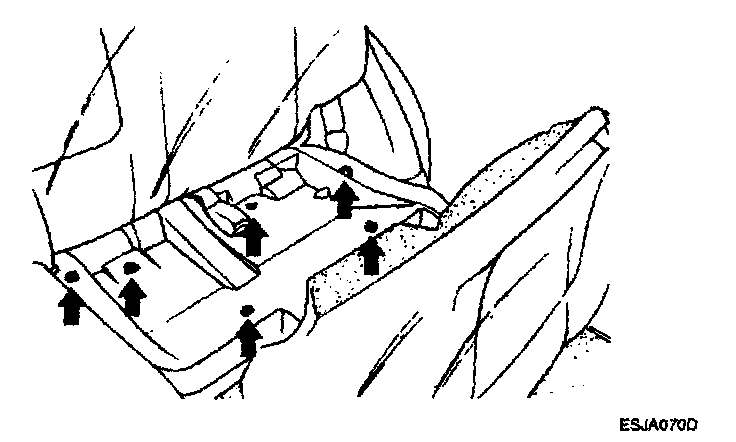

Remove the bolts holding the rear seat.
2.

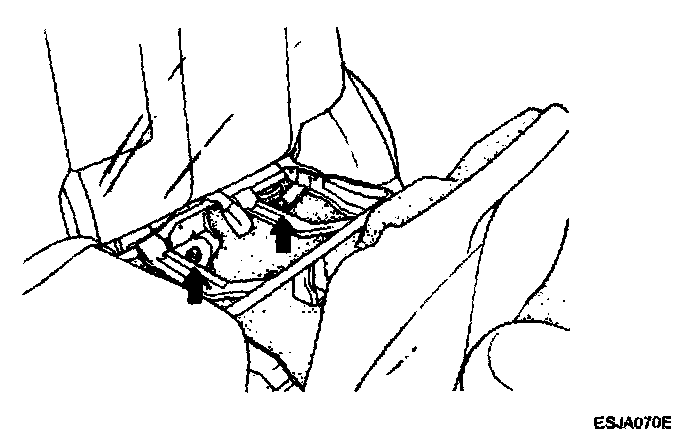

After pulling up the rear seat cushion, remove the screws holding the cushion cover and remove it.
3.

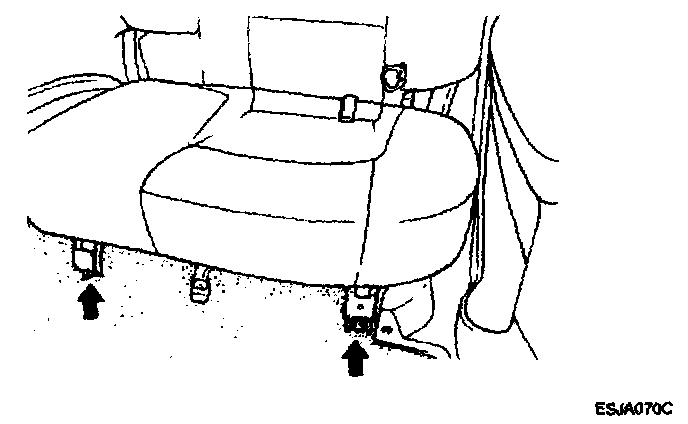

Remove the bolts holding the rear seat and then remove the rear seat assembly.
Tightening torque
Rear seat mounting bolts: 34.3-53.9 N.m (3.5-5.5 kgf-m, 25.3-39.8 lb-ft) 4.
Installation is the reverse of removal.
