Exhaust System: Service and Repair

REMOVAL
MAIN MUFFLER

CAUTION: Before removing or inspecting the exhaust system, ensure that the exhaust system is coot.

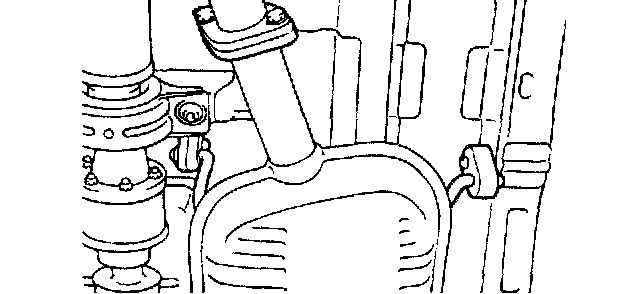

1. Disconnect the main muffler from the center exhaust pipe.





1 of 2





2 of 2

2. Remove the rubber hangers and remove the main muffler.

FRONT EXHAUST PIPE (INCLUDING CATALYTIC CONVERTER)
1. Remove the front exhaust pipe from the center exhaust pipe.





2. Remove the front exhaust pipe bolts and exhaust manifold pipe mounting nuts.





1 of 2





2 of 2

3. Remove the front exhaust pipe from the rubber hanger.

INSPECTION
1. Check the mufflers and pipes for leaks, corrosion and damage.
2. Check the rubber hangers for deterioration and cracks.

INSTALLATION
1. Temporarily install the front exhaust pipe (catalytic converter assembly), the center exhaust pipe and the main muffler in this order.
2. Install the rubber hangers so that they hang equally (left and right).
3. Tighten the parts securely and then confirm that there is no interference with any of components.
