Home >> Hyundai >> 2004 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Relay >> Locations

Blower Motor Relay: Locations

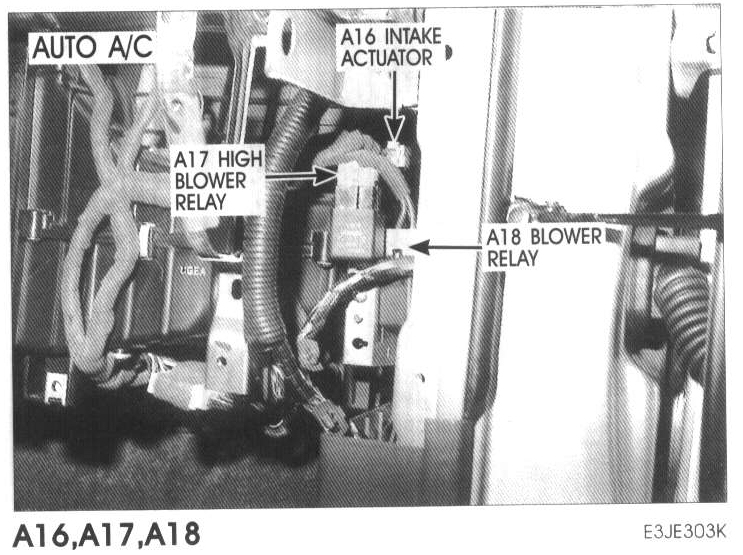

A16, A17, A18:

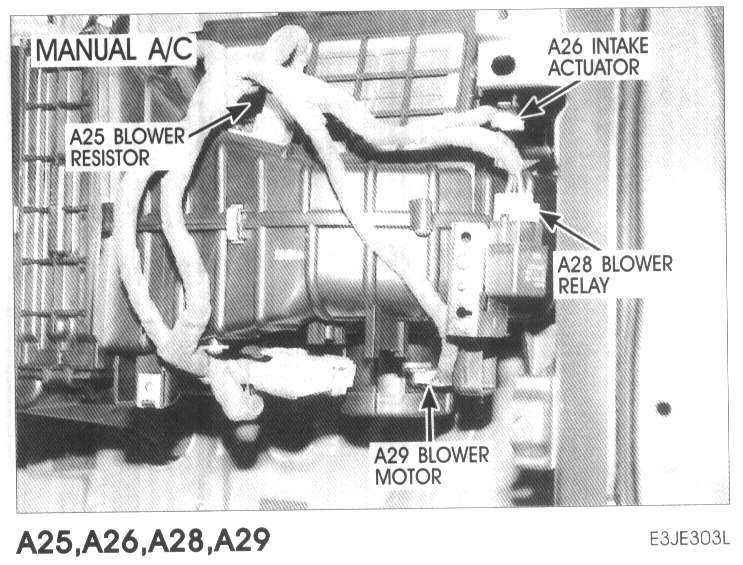

A25, A26, A28, A29:
