Blower and A/C Controls (Automatic)

BLOWER AND A/C CONTROLS (AUTOMATIC)

DESCRIPTION
1. Full auto air conditioning system: One-touch button type.
2. Manual air conditioning system: Combination of dial switch and one-touch button.

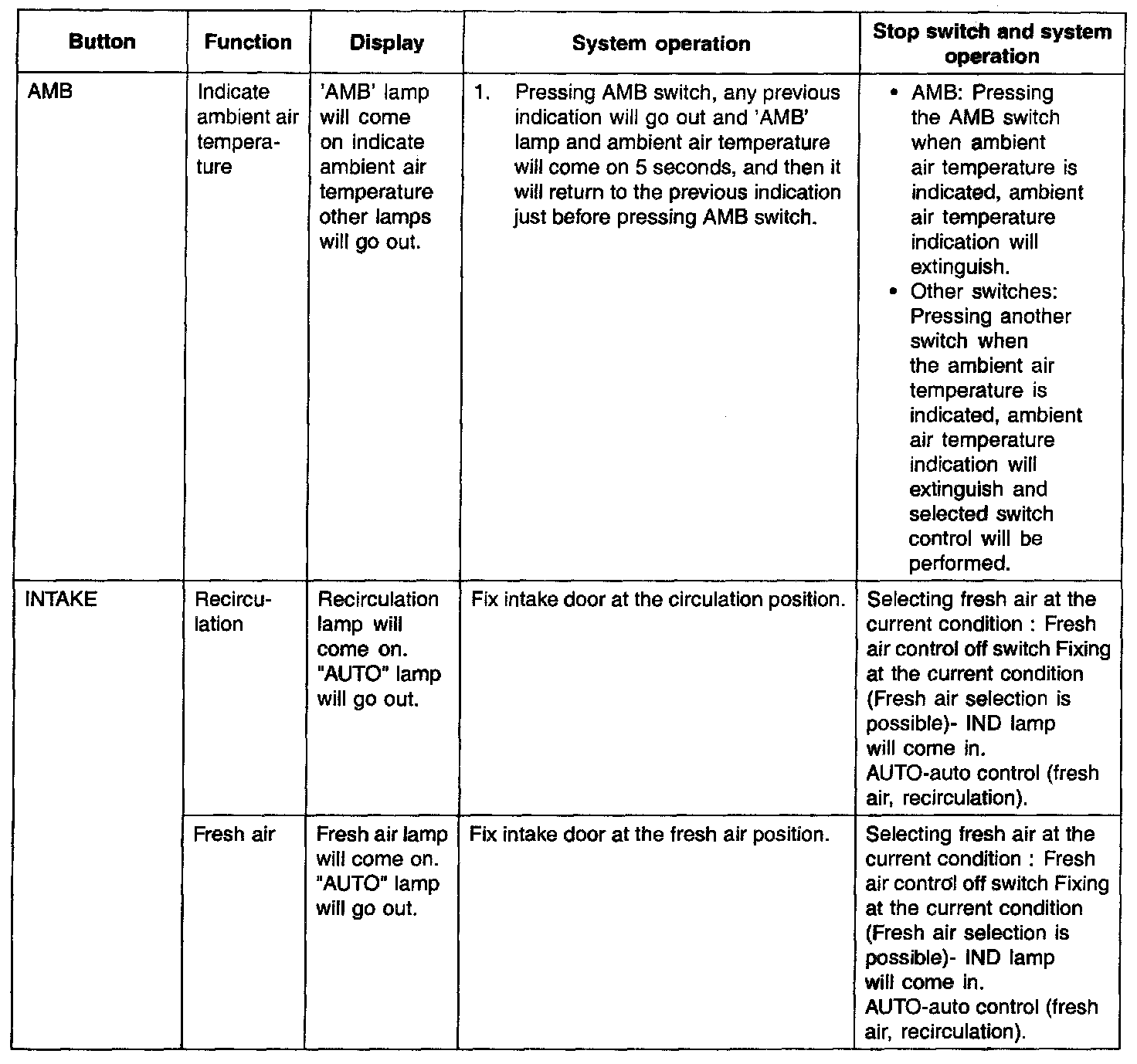

Control Panel Switches Will Generate Buzzer Sound On Operation Part 1:

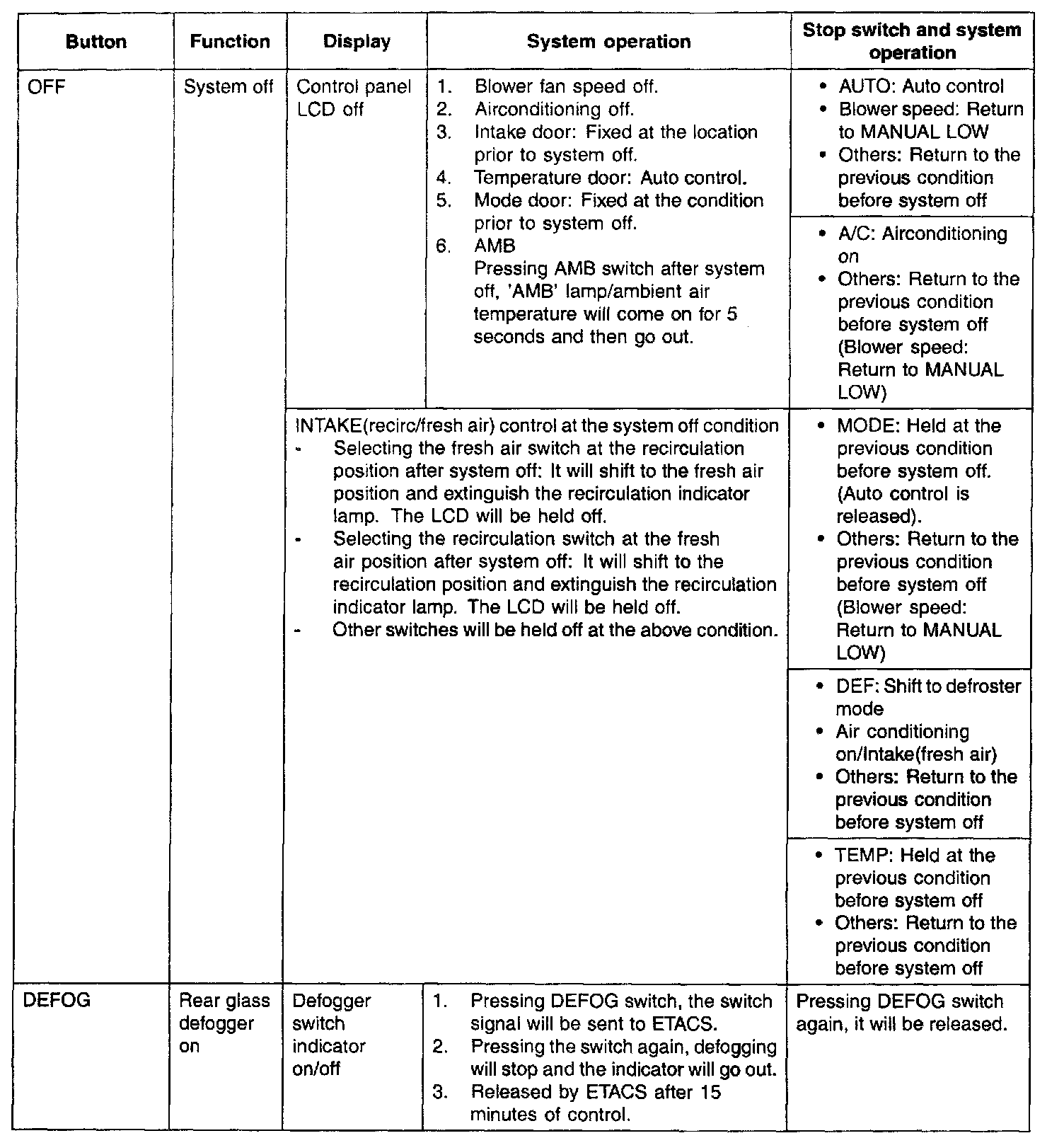

Control Panel Switches Will Generate Buzzer Sound On Operation Part 2:

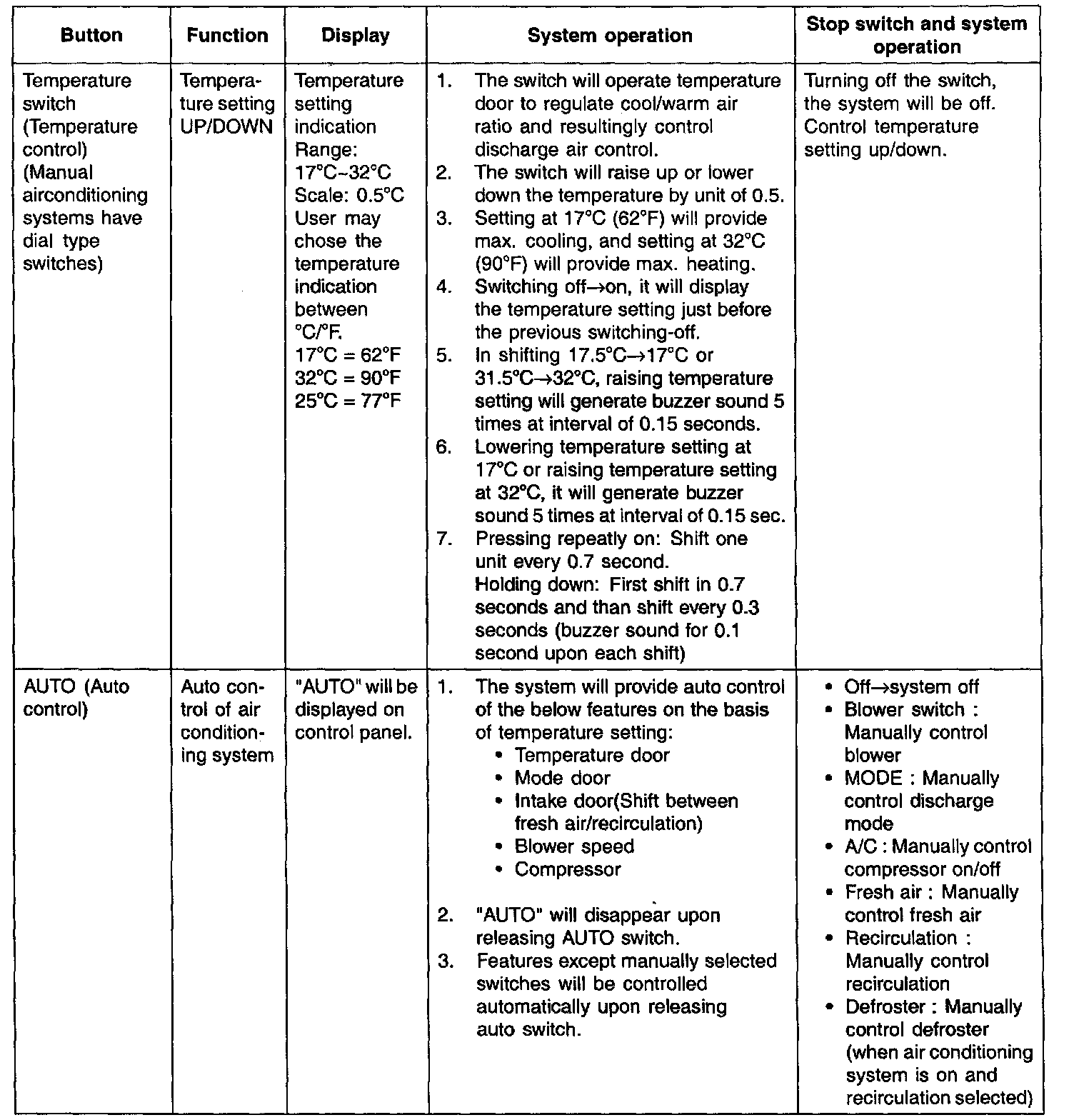

Control Panel Switches Will Generate Buzzer Sound On Operation Part 3:

Control Panel Switches Will Generate Buzzer Sound On Operation Part 4:

CONTROL PANEL SWITCHES WILL GENERATE BUZZER SOUND ON OPERATION
