Mode Control Actuator
MODE CONTROL ACTUATOR 1.

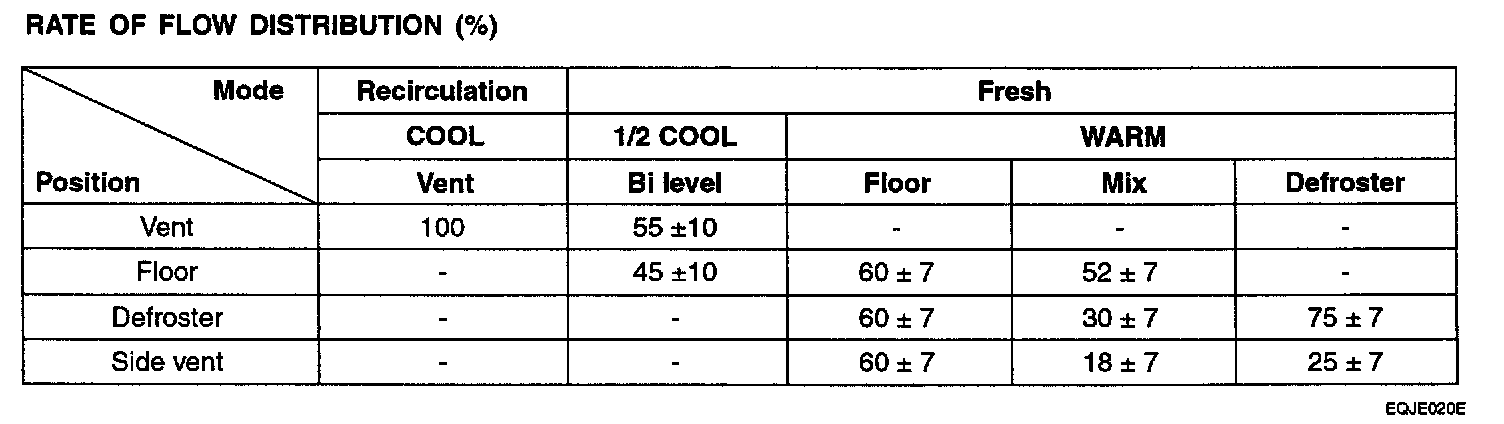

Pressing the mode select switch with the ignition on will shift the driver side and passenger side mode door actuators as follows :
VENT => BI/LEVEL => FLOOR => MIX
2.

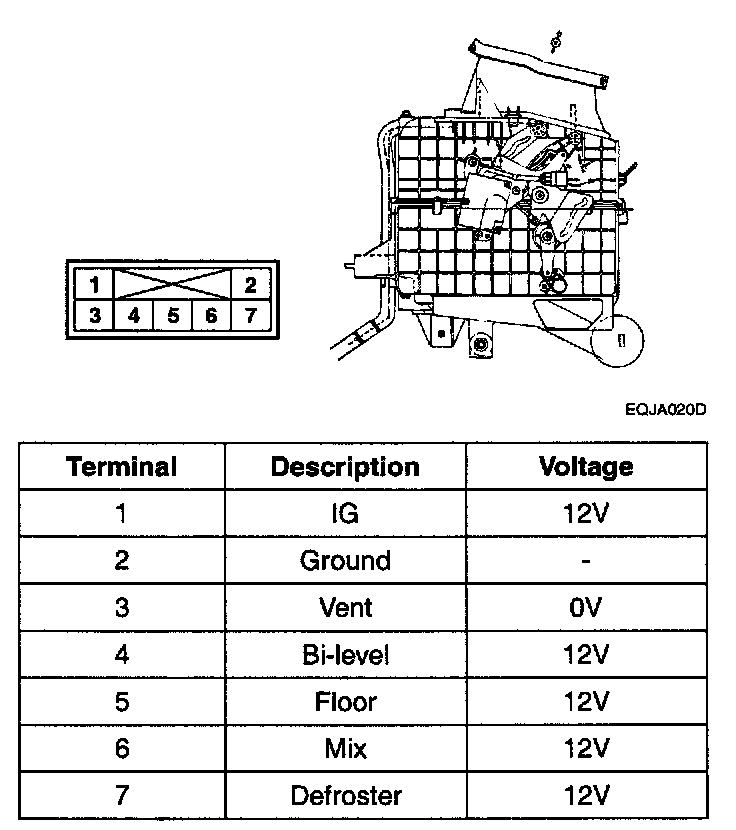

Mode actuator circuit diagram and voltage.
