Ambient Light Sensor: Testing and Inspection

INSPECTION

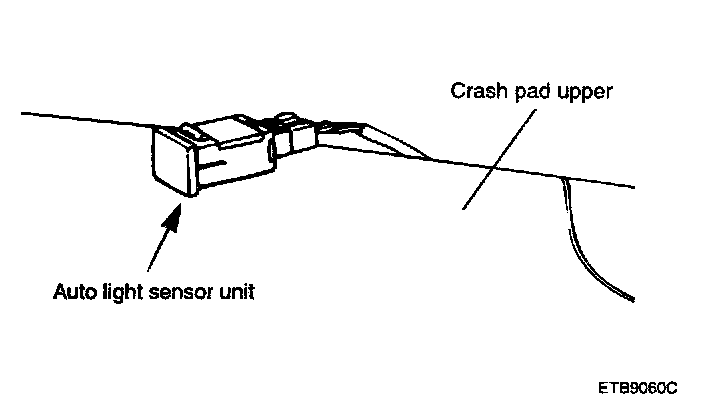

1. Detach the sensor unit in the upper crash pad.

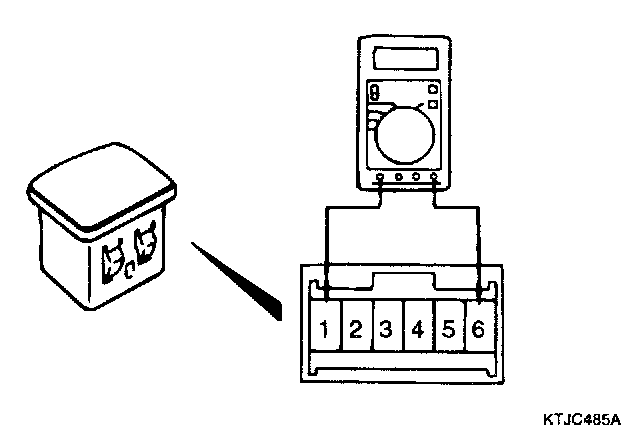

2. Check the continuity between terminal 6(+) and terminal 1(-).

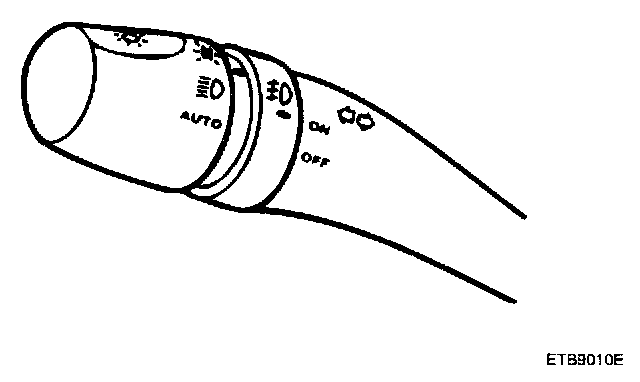

Auto Light Switch:

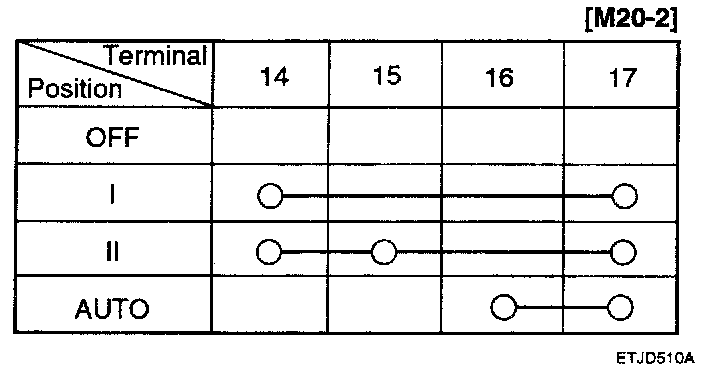

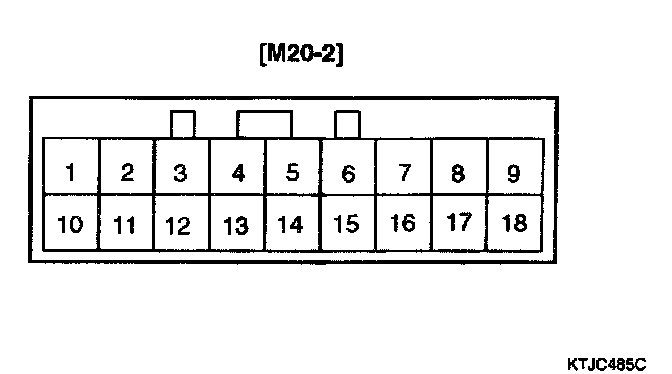

3. Check the continuity between the terminals while operating the switch.
