Fog/Driving Lamp: Adjustments

FRONT FOG LAMP
The front fog lamps should be aimed in the same manner of the head lamps aiming.

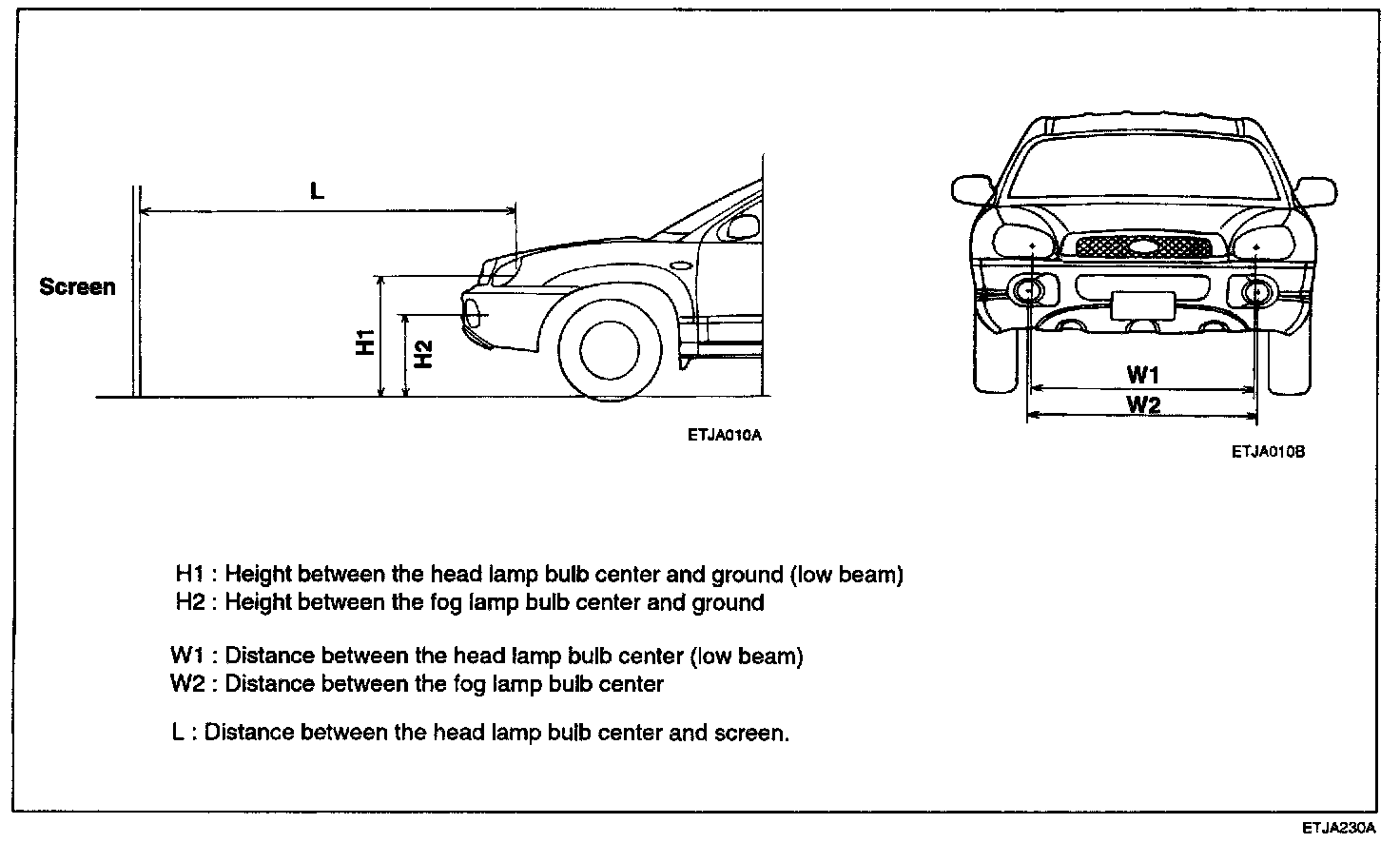

Head Lamp And Fog Aiming Point:

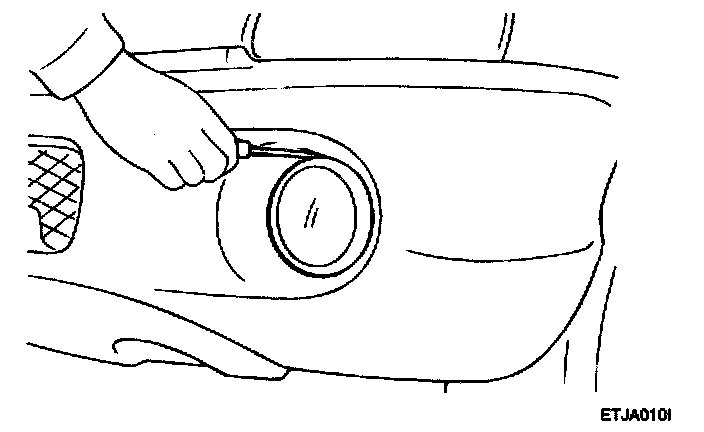

With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear.

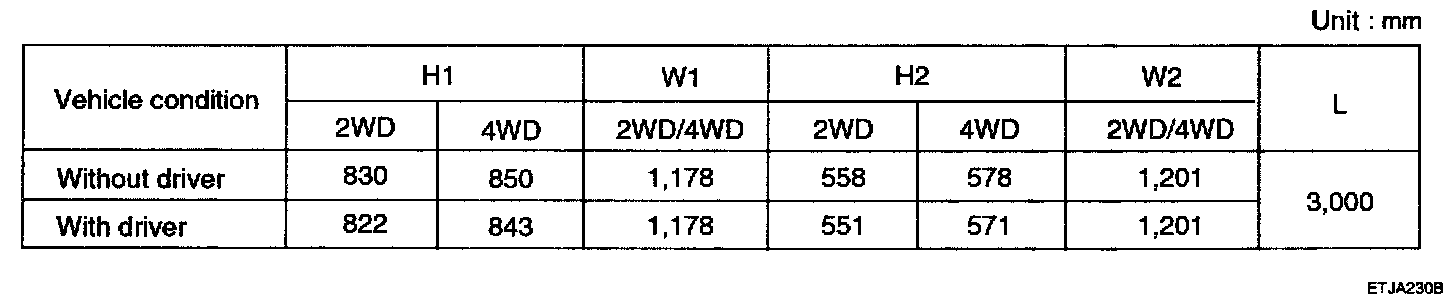

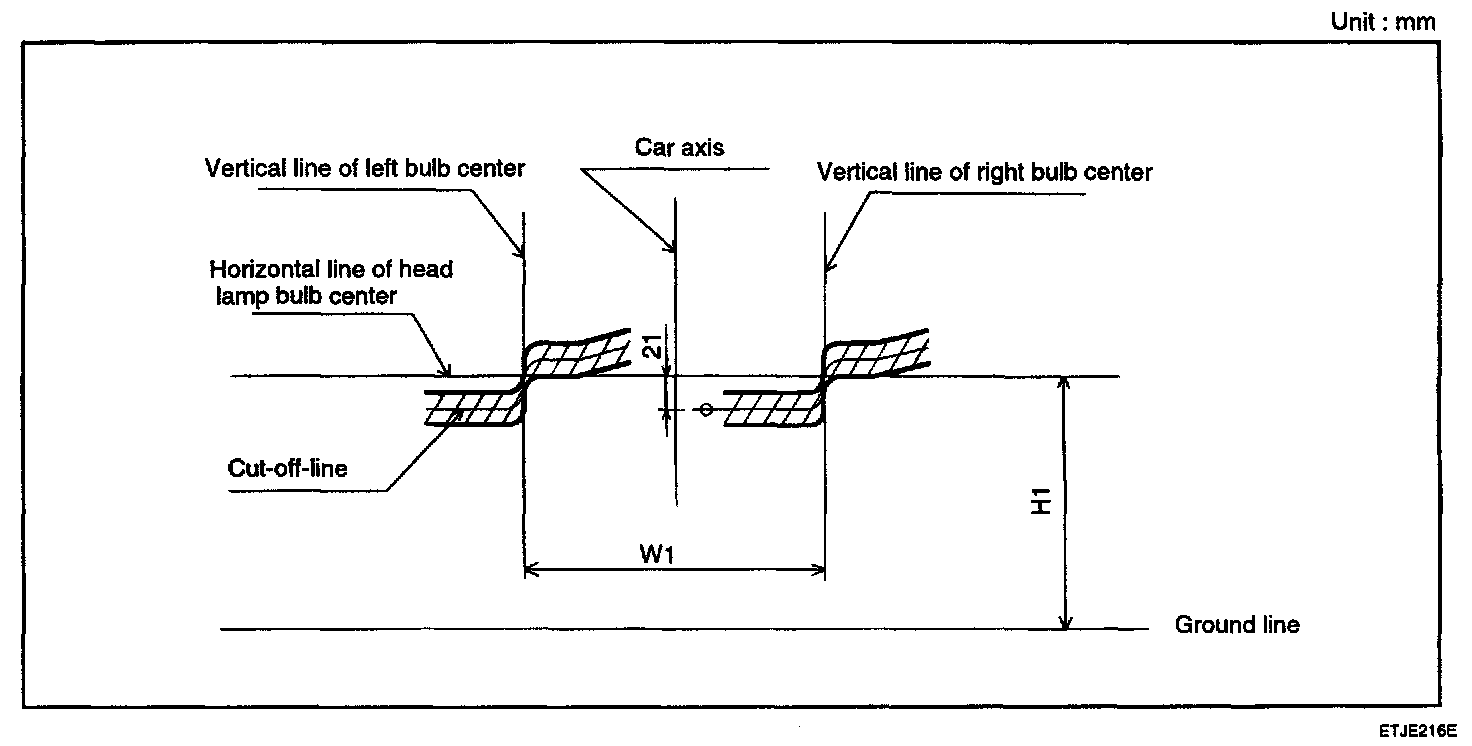

- Turn the low beam on without the driver aboard. The cut-off line should be projected in the allowable range (shaded region).

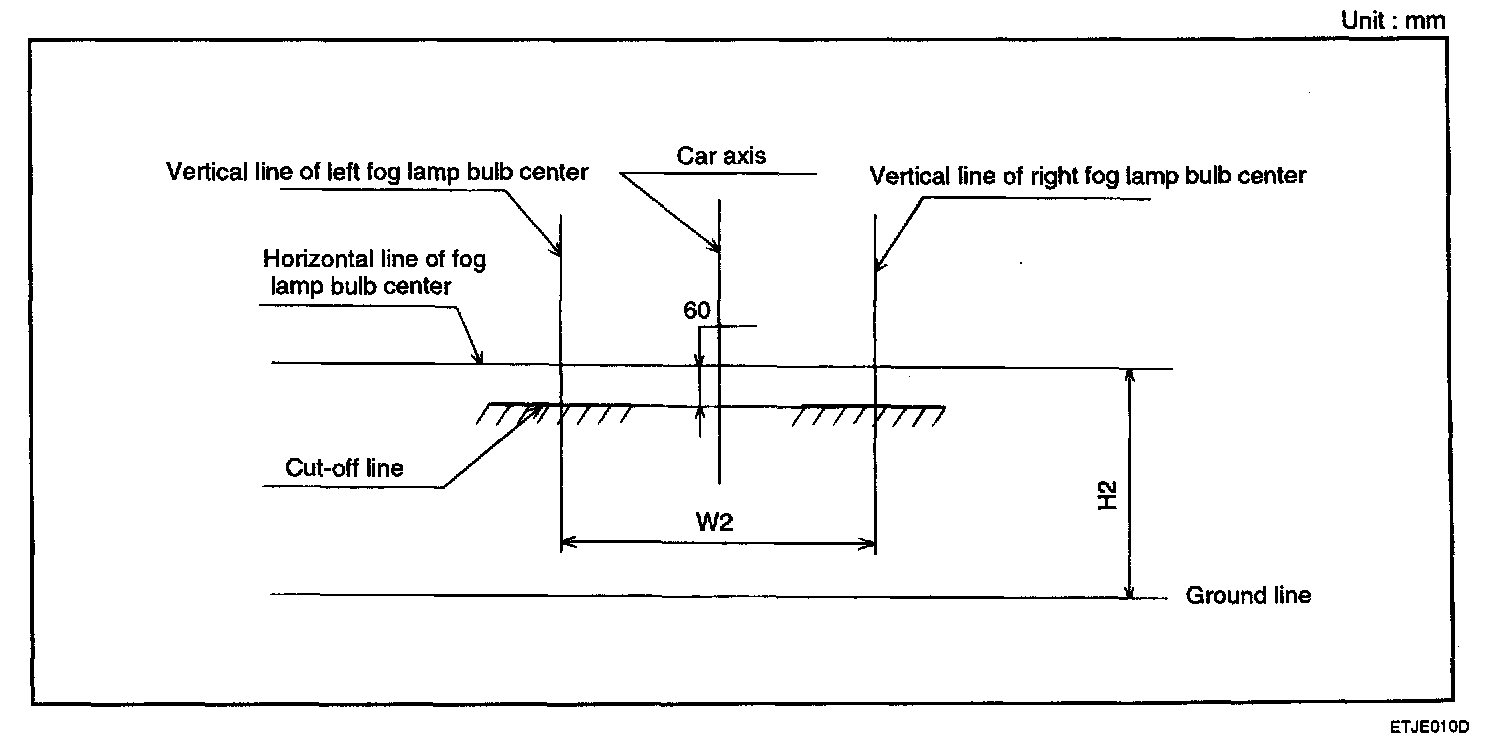

- Turn the front fog lamp on without the driver aboard. The cut-off line should be projected in the allowable range. (shaded region)
