Fog/Driving Lamp: Service and Repair
FRONT FOG LAMP 1.
Disconnect the negative battery terminal.
2.

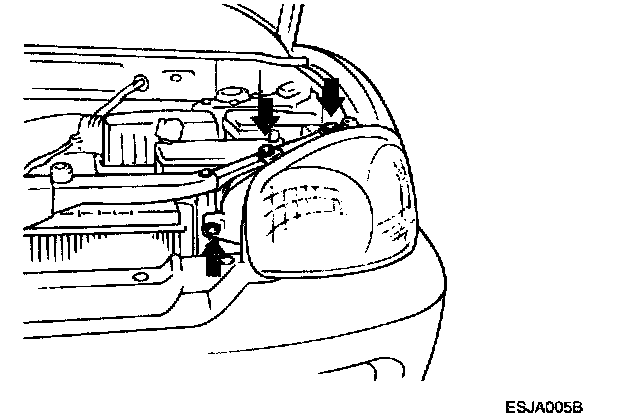

Remove the head lamp mounting bolts and remove the head lamp assembly.
3.

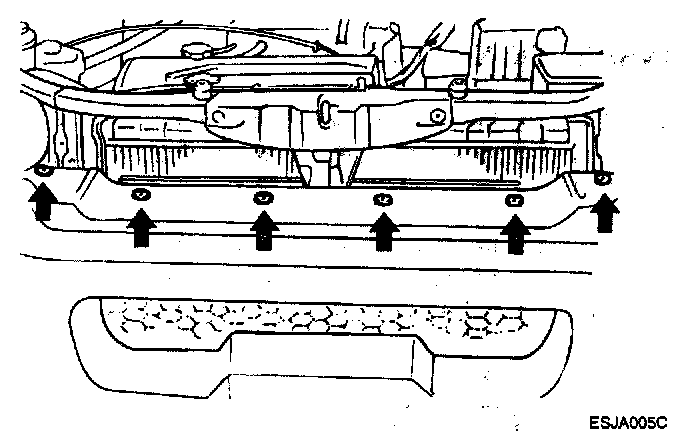

Remove the screws in the front bumper cover.
4.

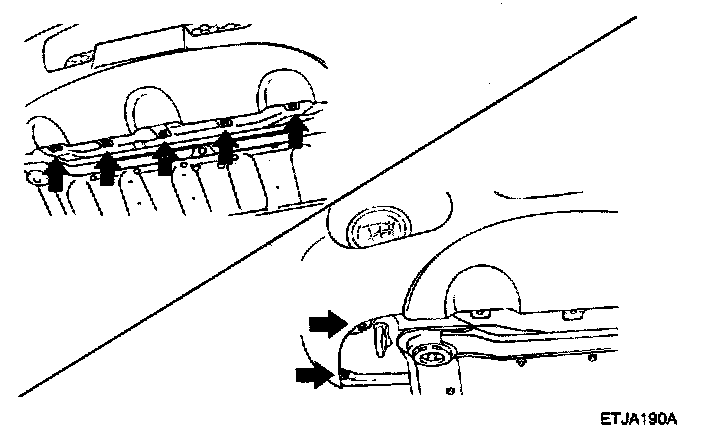

Raise the vehicle then remove the screws holding the front bumper and the front wheel guard.
5.

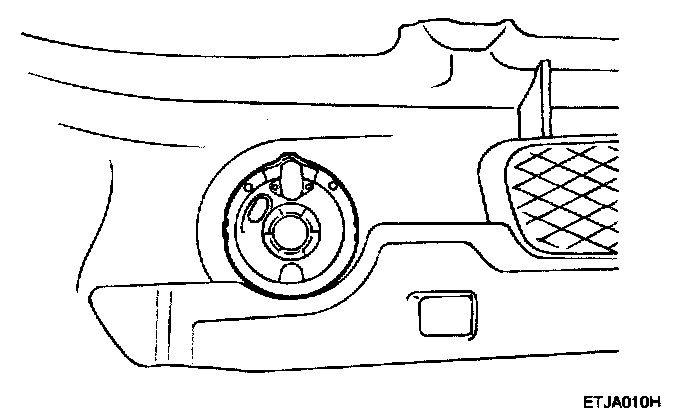

Remove the front fog lamp from the bumper cover.
6.
Installation is the reverse of removal.
