Transfer Case Oil Replacement

REPLACEMENT OF TRANSFER CASE OIL
USE SHELL SPIRAX AX (SAE 80W/90, API GL-5)

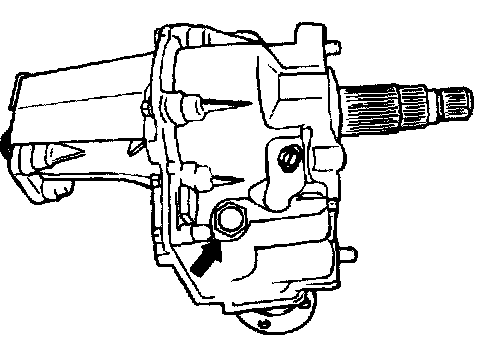

1. With the vehicle parked on a level surface, remove the drain plug and drain the transfer case oil.





2. Install the drain plug.
3. Remove the oil filler plug.
4. Add the specified amount and type of oil into the oil filler hole.
5. Install the oil filler plug.
