Manual Update Procedure

NOTE:
In the event that "01. SM 2.4/2.7 SHIFT FEEL [AUTO]" fails to download the new TCM program, option "02. SM 2.4/2.7 SHIFT FEEL [ERROR] must be used.

NOTE:
Confirm all connections are established as shown in the "AUTOMATIC UPDATE PROCEDURE" before continuing.

1. Turn the ignition to the ON position.

2. Turn the Hi-Scan Pro ON and press ENTER.





3. Select option "46. SM 2.4/2.7 SHIFT FEEL IMPROVEMENT" and press ENTER.





4. Select option "02. SM 2.4/2.7 SHIFT FEEL [ERROR]" and press ENTER.

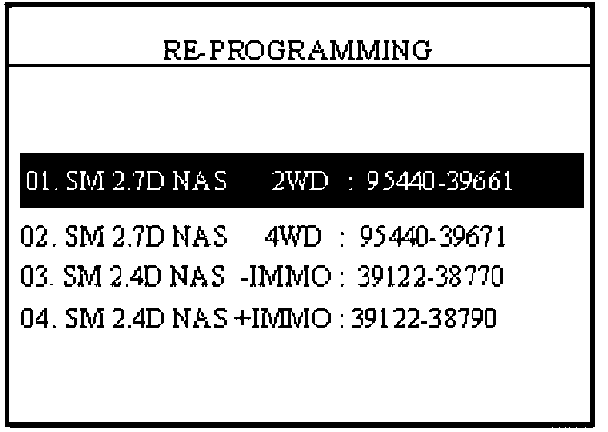

5. Choose the vehicle type which is correct for your vehicle.

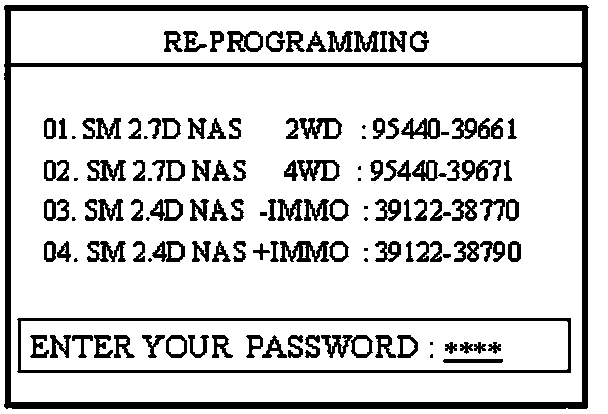

6. Select the correct password for the manual update mode which is correct for the vehicle specification by referring to the chart shown. Then press ENTER.

WARNING:
Be sure to input the correct password. If an incorrect password is selected, the correct program will not be downloaded.

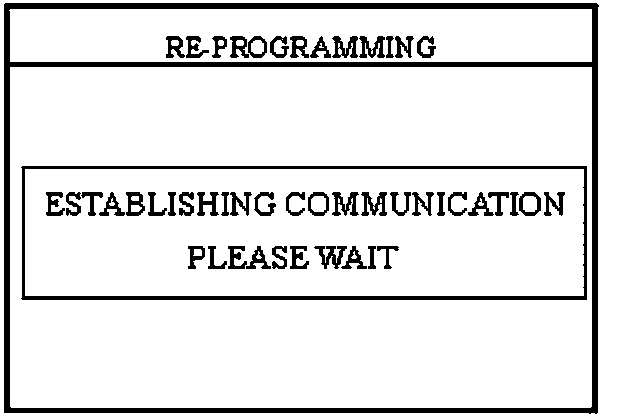

7. The Hi-Scan Pro will establish communication.

NOTE:
Once the password is entered and accepted, the rest of the process is exactly the same as the automatic update procedure.

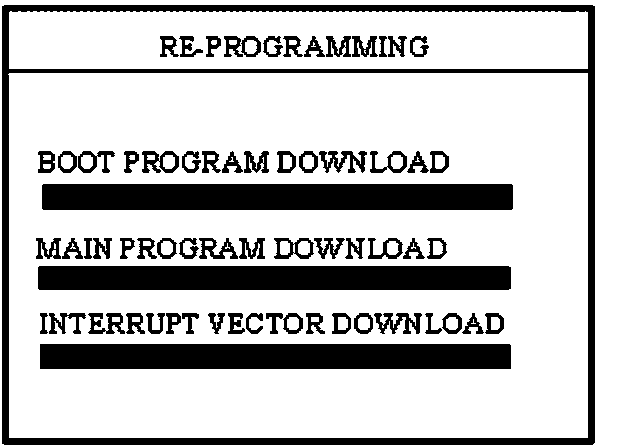

8. The Hi-Scan Pro will reprogram the TCM.





WARNING:
Do not interrupt the reprogramming at any time. The TCM will be rendered inoperative if the program does not download completely.





9. The Hi-Scan Pro checks the TCM ID to confirm reprogramming is complete.

10. Turn the ignition to the OFF position for 20 seconds and then start the engine and check for proper operation.

11. Check for diagnostic trouble codes using the Hi-Scan Pro with the system software card. Erase all trouble codes.
