Removal and Installation






REMOVAL

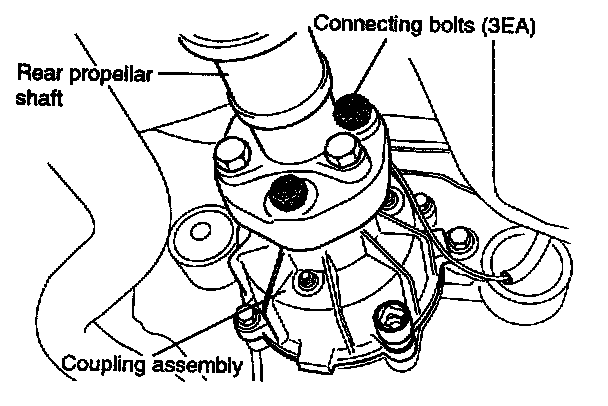

1. Remove the 4WD coupling bolts (SEA) mounted to the rear propeller shaft.

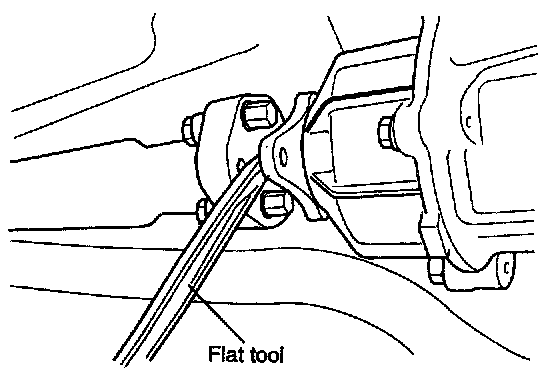

2. Using a flat tool, separate the propeller shaft from 4WD coupling.





3. Remove the rear axle (Differential carrier) bolts mounted to the 4WD coupling.

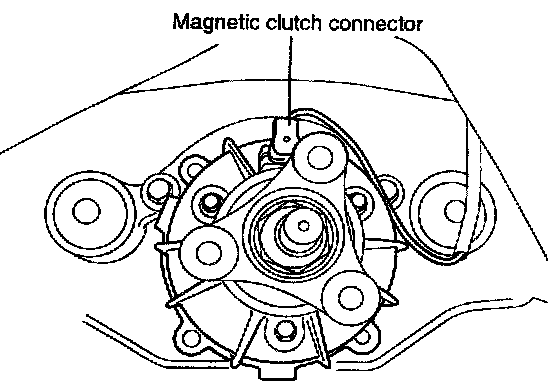

4. Remove the electric magnetic clutch connector.

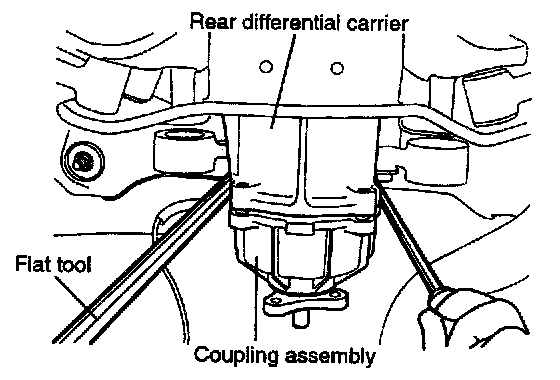

5. Using a flat tool, separate the 4WD coupling assembly from the rear differential carrier.

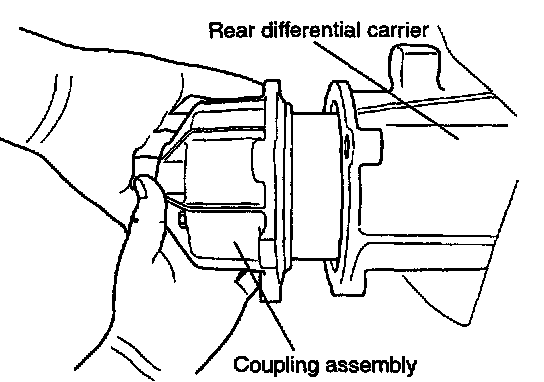

6. Remove the 4WD coupling assembly.

INSTALLATION
Installation is the reverse of the removal.
