Heated Glass Element Switch: Testing and Inspection
REAR WINDOW DEFOGGER SWITCH 1.
Disconnect the negative(-) battery terminal.
2.
Remove the center facia panel.
3.
Disconnect the connector from the rear window defogger switch.
4.

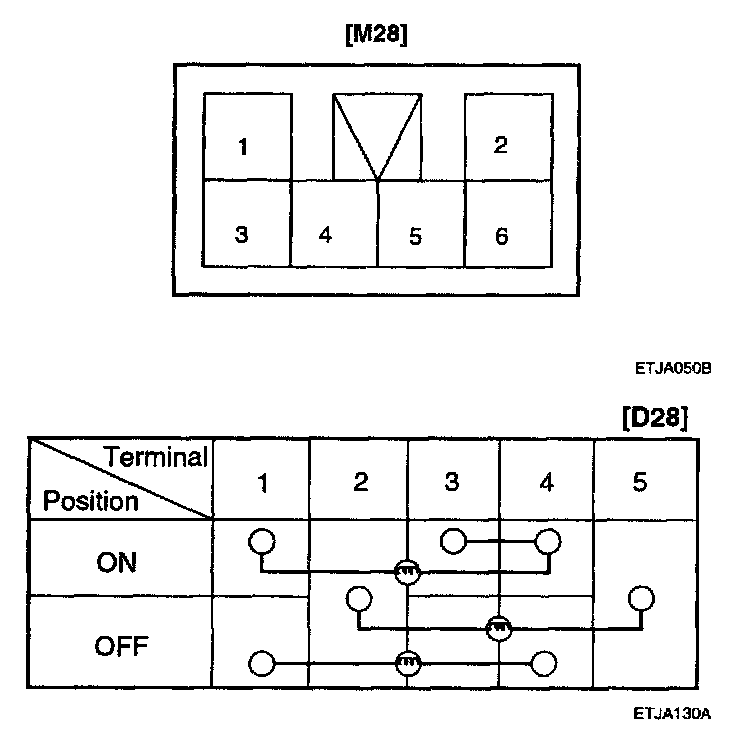

Operate the switch and check for continuity between the terminals using an ohmmeter.
