Cylinder Head Bolt Torque and Sequence
Cylinder Head Tightening Sequence:
Tighten the

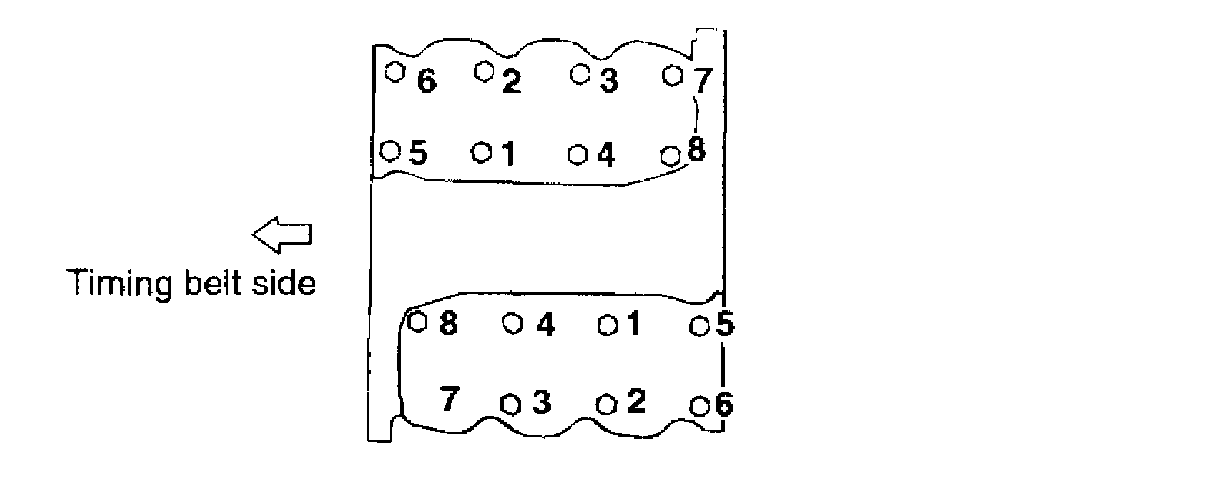

cylinder head bolts in the sequence shown in the illustration with a torque wrench.
Tighten the

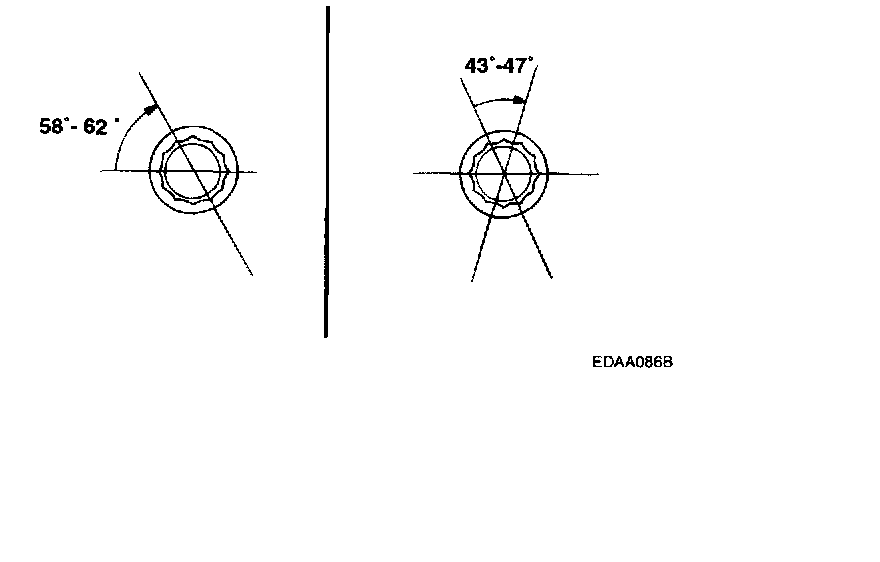

cylinder head bolts using the torque - angle method.
Starting at top center, tighten all
cylinder head bolts in sequence as shown in the illustration, using the 12 mm socket.
Cylinder head bolt:
25 Nm (18.1 ft. lbs.) + (58 - 62°) + (43 - 47°)
