Schematic Diagrams

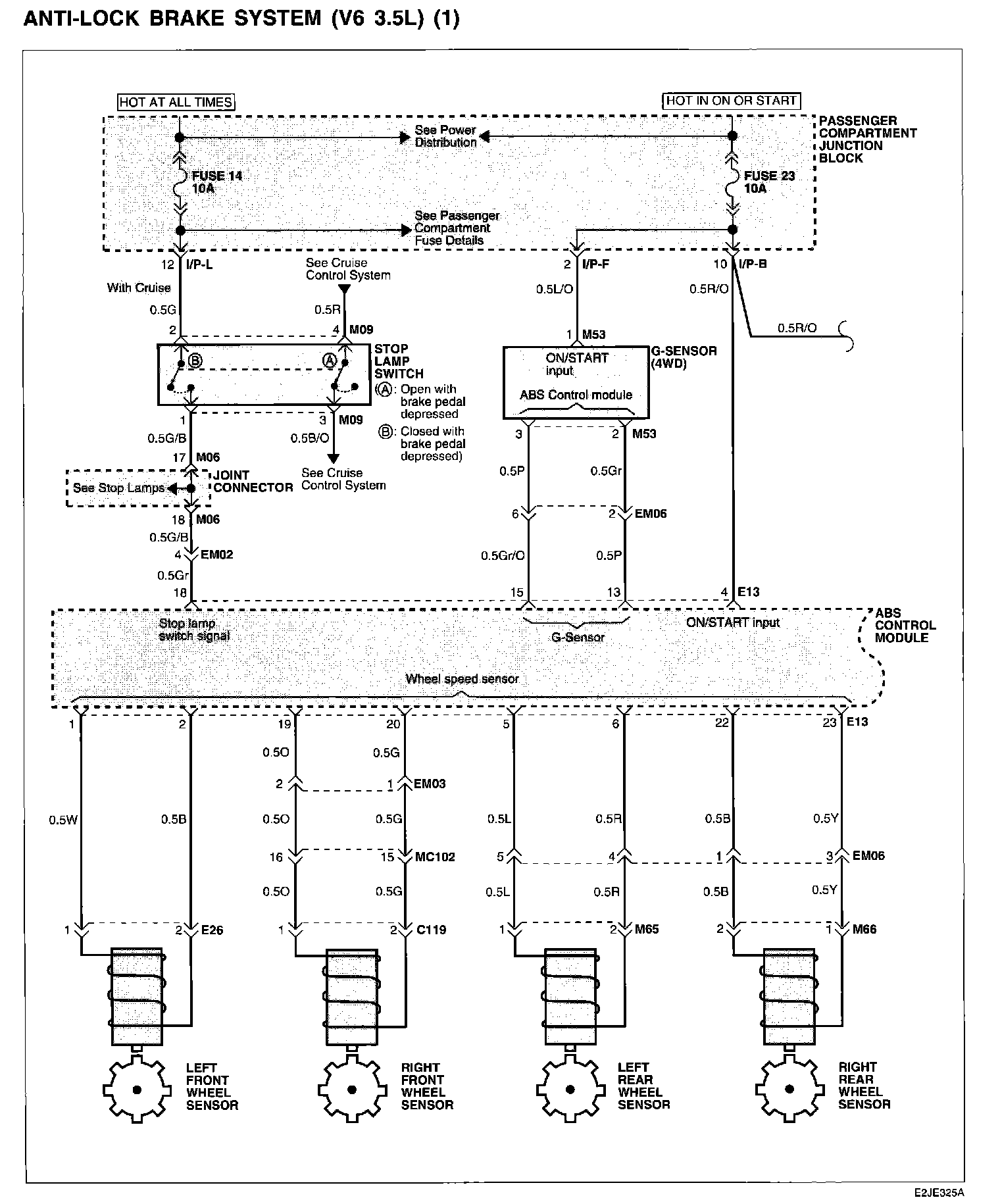

Anti-Lock Brake System (ABS) (V6 3.5L) (1):

Anti-Lock Brake System (ABS) (V6 3.5L) (2):

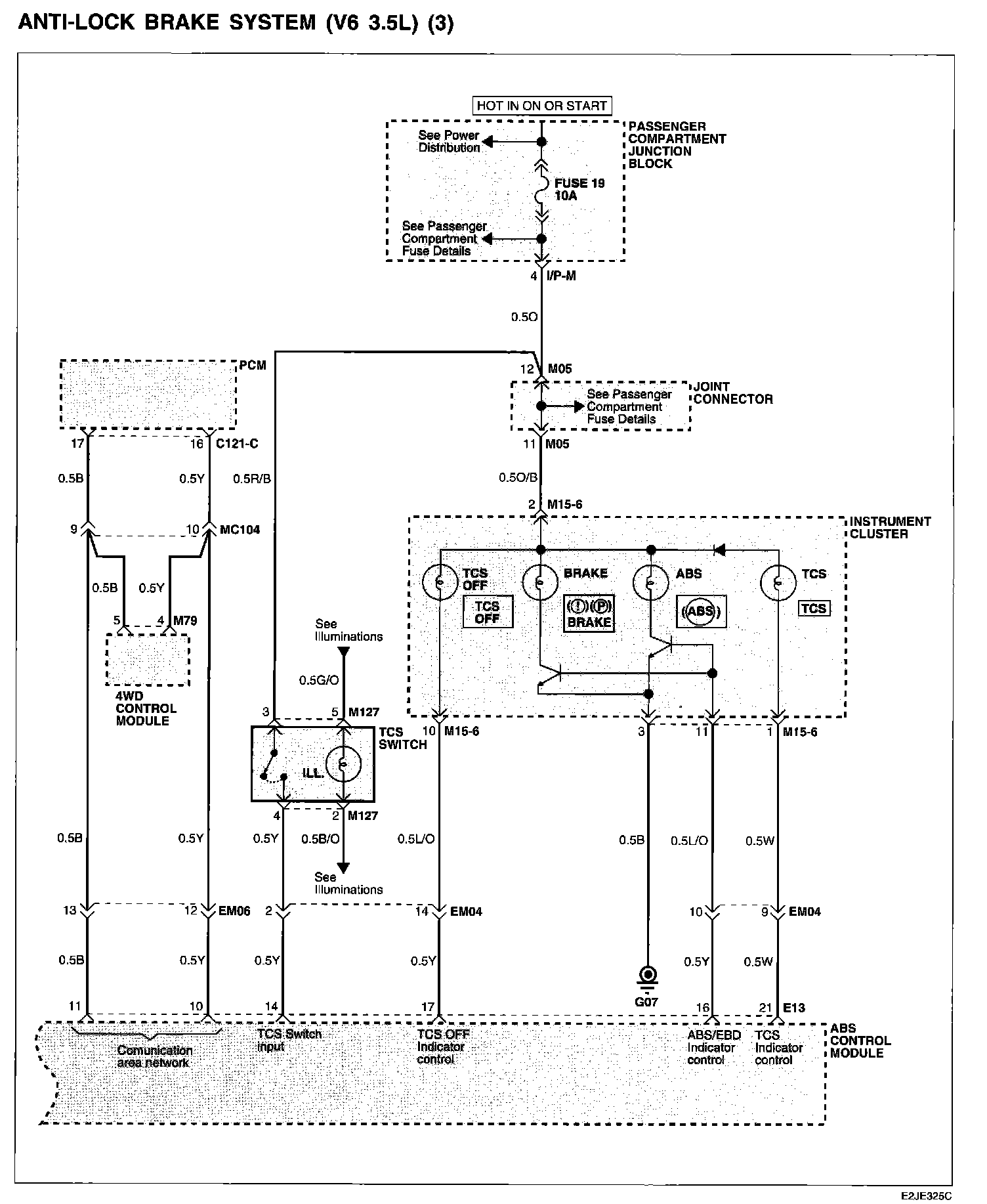

Anti-Lock Brake System (ABS) (V6 3.5L) (3):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
